Polaris™ Ins Multi-Tap 500 6 Port SSE
SKU: #304475
Part: #IPL500-6
UPC: 662381915047
Polaris™ Ins Multi-Tap 500 6 Port SSE
SKU: #304475
Part: #IPL500-6
UPC: 662381915047
Total Price: $108.17 per each Sold in increments of 1 each
Description

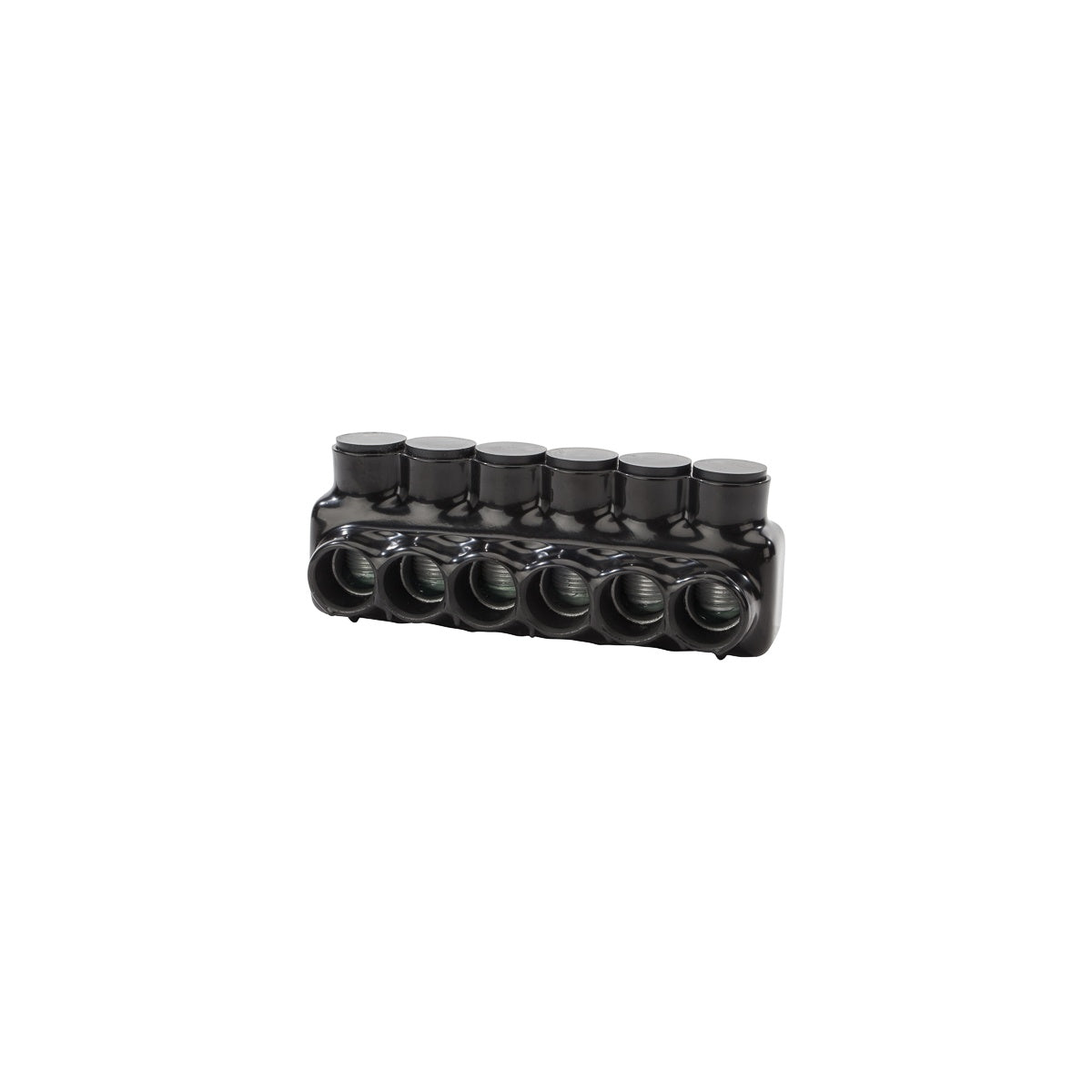

Polaris™ Ins Multi-Tap 500 6 Port SSE Multi-Conductor Connector
The Polaris™ Insulated Multi-Tap Connector by NSi Industries is designed for wire termination applications, supporting wire sizes from 500 MCM to 4 AWG. This pre-insulated connector features six ports with single-sided wire entry, making it suitable for electrical distributors and switchgear suppliers requiring reliable multi-conductor connections. Its aluminum construction with plastisol insulation ensures durability and safety in various electrical installations.
Specifications
- Application: Wire Termination
- Number of Conductors: 6
- Number of Poles: 1
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 7.4 in x 2.5 in x 2.94 in
- Product Weight: 1.57 lbs
- Wire Type: Class B & C
- Environmental Conditions: Rated for 90 °C
- Manufacturer: NSI Industries
- Manufacturer Part Number: IPL500-6
Features
- Single-sided wire entry ports for streamlined installation
- High-dielectric strength plastisol insulation for electrical safety
- Abrasion, chemical, and UV resistant
- Eliminates the need for cover and taping
- Molded for precise fit with removable access plugs over hex screws
- UL Listed 486B wire connector for dry locations
- Dual rated for copper and aluminum cables
- Cold temperature rated to -45 °C, rated 600V at 90 °C
