Polaris™ Ins Multi-Tap 500 6 Port DSE
SKU: #304716
Part: #IPLD500-6
UPC: 662381925046
Polaris™ Ins Multi-Tap 500 6 Port DSE
SKU: #304716
Part: #IPLD500-6
UPC: 662381925046
Total Price: $138.15 per each Sold in increments of 1 each
Description

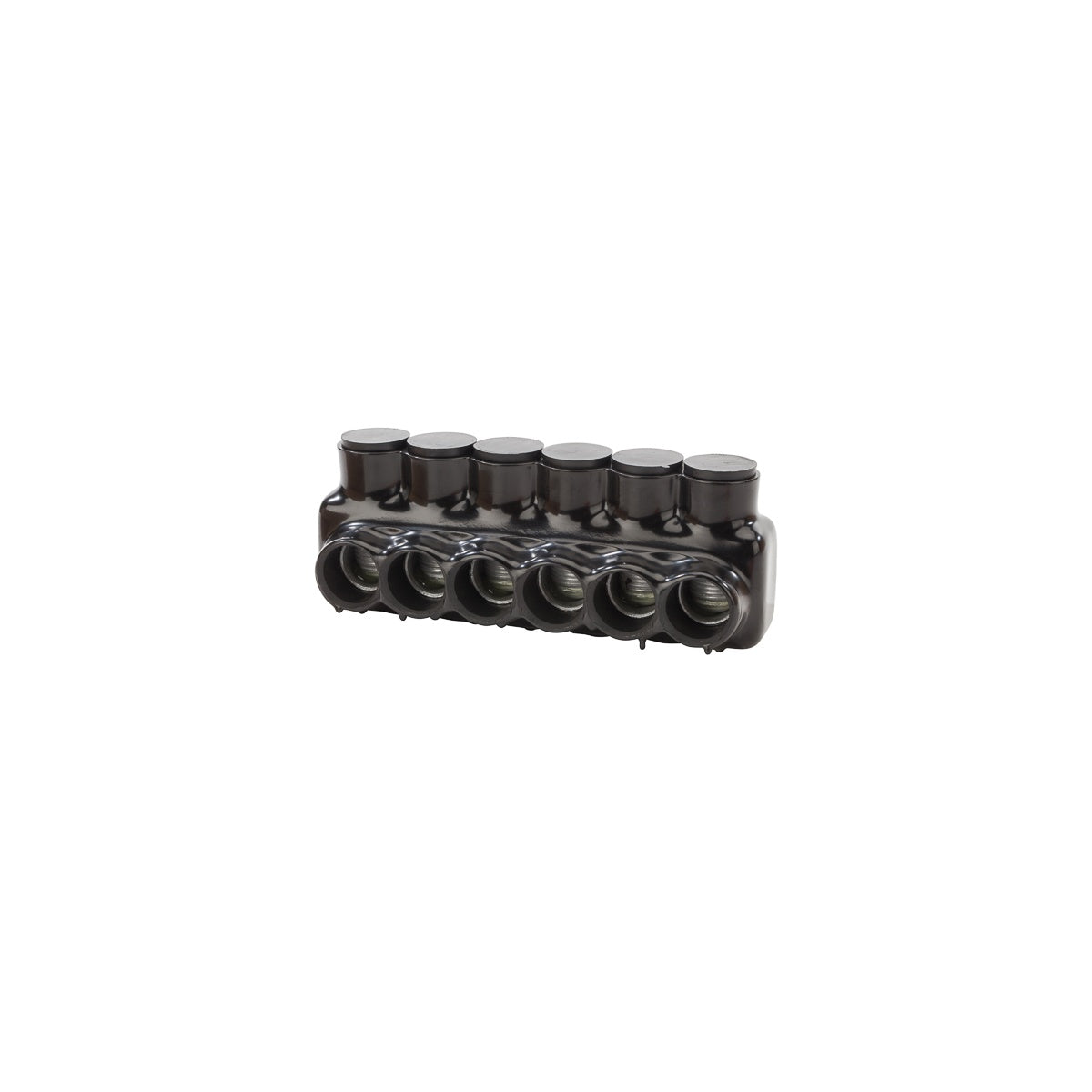

Polaris™ Ins Multi-Tap 500 6 Port DSE Wire Termination Connector
The Polaris™ Insulated Multi-Tap 500 6 Port Dual Side Entry (DSE) connector by NSI Industries is designed for wire termination applications involving copper and aluminum conductors. This pre-insulated connector supports wire sizes from 500 MCM to 4 AWG and provides six conductor ports for versatile multi-cable connections. Suitable for electrical distributors and switchgear suppliers, it is ideal for use in lighting solutions, wire and cable installations, and mechanical splice block applications where reliable, insulated connections are required.
Specifications
- Application: Wire Termination
- Number of Conductors: 6
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 7.52 in x 2.83 in x 2.91 in
- Product Weight: 1.57 lbs
- Environmental Conditions: Rated for 90°C
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLD500-6
- UL Listing: UL 486B for Copper or Aluminum Class B, C conductors (dry location)
- Voltage Rating: 600V
- Temperature Rating: Cold temperature rated to -45°C, max 90°C
Features
- Dual side wire entry ports allow access from either side of the connector
- Pre-insulated with high dielectric strength black plastisol, eliminating the need for additional taping or covers
- Molded for precise fit with removable access plugs over hex screws
- Supplied with removable plugs to close unused entry ports
- Abrasion, chemical, and UV resistant; will not support combustion
- Dual rated for use with copper and aluminum cables, providing installation flexibility and cost savings
- Cold temperature resistant down to -45°C, suitable for harsh environments and vibration-prone conditions
