Polaris™ Ins Multi-Tap 500 5 Port SSE
SKU: #304461
Part: #IPL500-5
UPC: 662381915030
Polaris™ Ins Multi-Tap 500 5 Port SSE
SKU: #304461
Part: #IPL500-5
UPC: 662381915030
Total Price: $103.37 per each Sold in increments of 1 each
Description

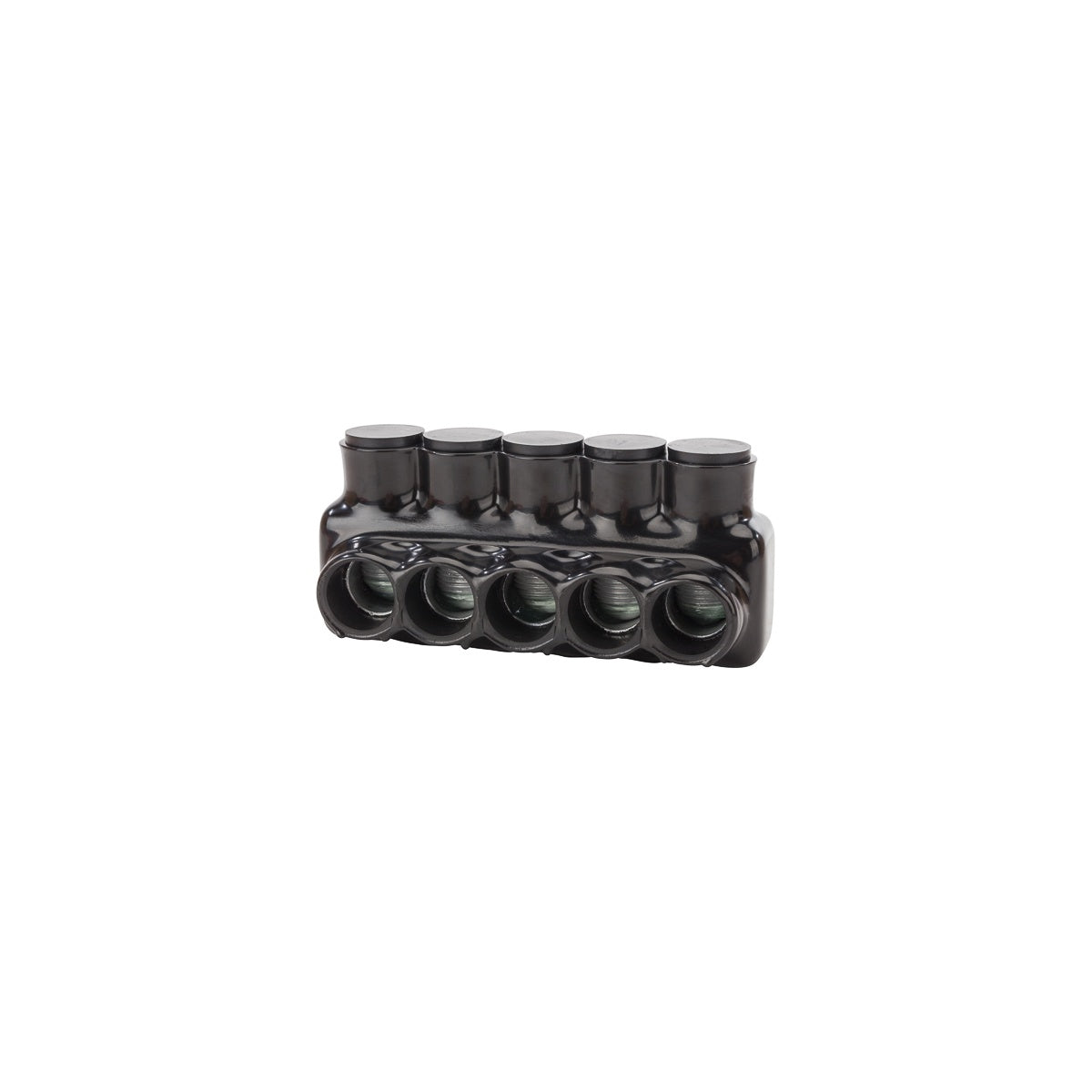

Polaris™ Ins Multi-Tap 500 5 Port SSE Multi-Conductor Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable and durable solution for electrical distributors and switchgear suppliers. This 5-port, single-sided entry connector supports wire sizes from 500 MCM to 4 AWG and is suitable for both copper and aluminum cables, making it an effective component in lighting solutions and wire and cable systems. It features a plastisol insulated, abrasion and chemical resistant housing to ensure safety and longevity in demanding environments.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 5
- Number of Poles: 1
- Wire Type: Class B & C (dual rated for copper and aluminum cables, not for fine-stranded flexible wire)
- Environmental Conditions: Rated for 90 °C
- Dimensions (L x W x H): 6.25 in x 2.5 in x 2.94 in
- Product Weight: 1.31 lbs
- Manufacturer: NSI Industries
- Manufacturer Part Number: IPL500-5
- UL Listing: UL 486B Wire Connector (Dry location)
- Voltage Rating: 600V
- Temperature Rating: Cold temperature rated to -45 °C, 90 °C max operating temperature
Features
- Wire entry ports on one side only for streamlined installation
- Eliminates the need for cover and taping
- High-dielectric strength plastisol insulation for electrical safety
- Molded for precise fit with removable access plugs over hex screws
- Abrasion and chemical resistant housing
- UV resistant for outdoor durability
- Will not support combustion
