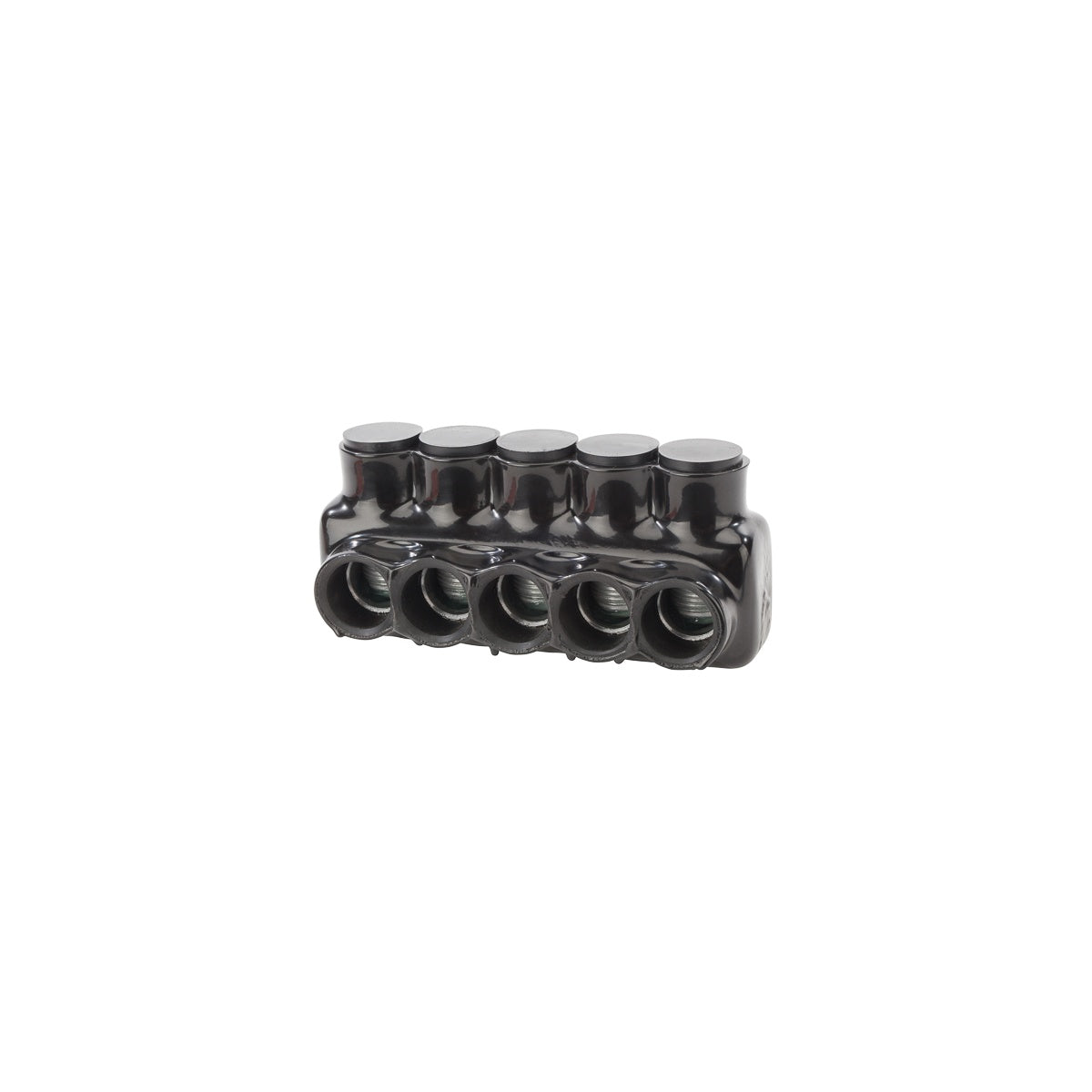

Polaris™ Ins Multi-Tap 500 5 Port DSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing reliable connections for electrical distributors and lighting solutions requiring wire and cable management. This 5-port, dual-sided entry connector supports Class B & C conductors and is suitable for use in harsh environments, making it a versatile component for switchgear suppliers and other electrical system installations.

Specifications

• Application: Wire Termination
• Number of Conductors: 5
• Number of Poles: 1
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 6.38 in x 2.83 in x 2.91 in
• Product Weight: 1.31 lbs
• Wire Type: Class B & C
• Environmental Conditions: 90°C
• Manufacturer: NSI Industries
• Manufacturer Part #: IPLD500-5

Features

• UL 486B Listed for Copper or Aluminum Class B,C conductor compatibility
• Pre-insulated with high dielectric strength black plastisol for abrasion, chemical, and UV resistance
• Dual side wire entry ports with removable plugs for flexible wiring configurations
• Cold temperature rated to -45°C for harsh environment applications
• Eliminates the need for additional insulation such as tape
• Tough impervious plastisol allows use in vibration-prone conditions
• Customizable UL listed direct burial and submersible connector options available
• Rated for 600V, 90°C operation
• Not recommended for fine-stranded, flexible wire
