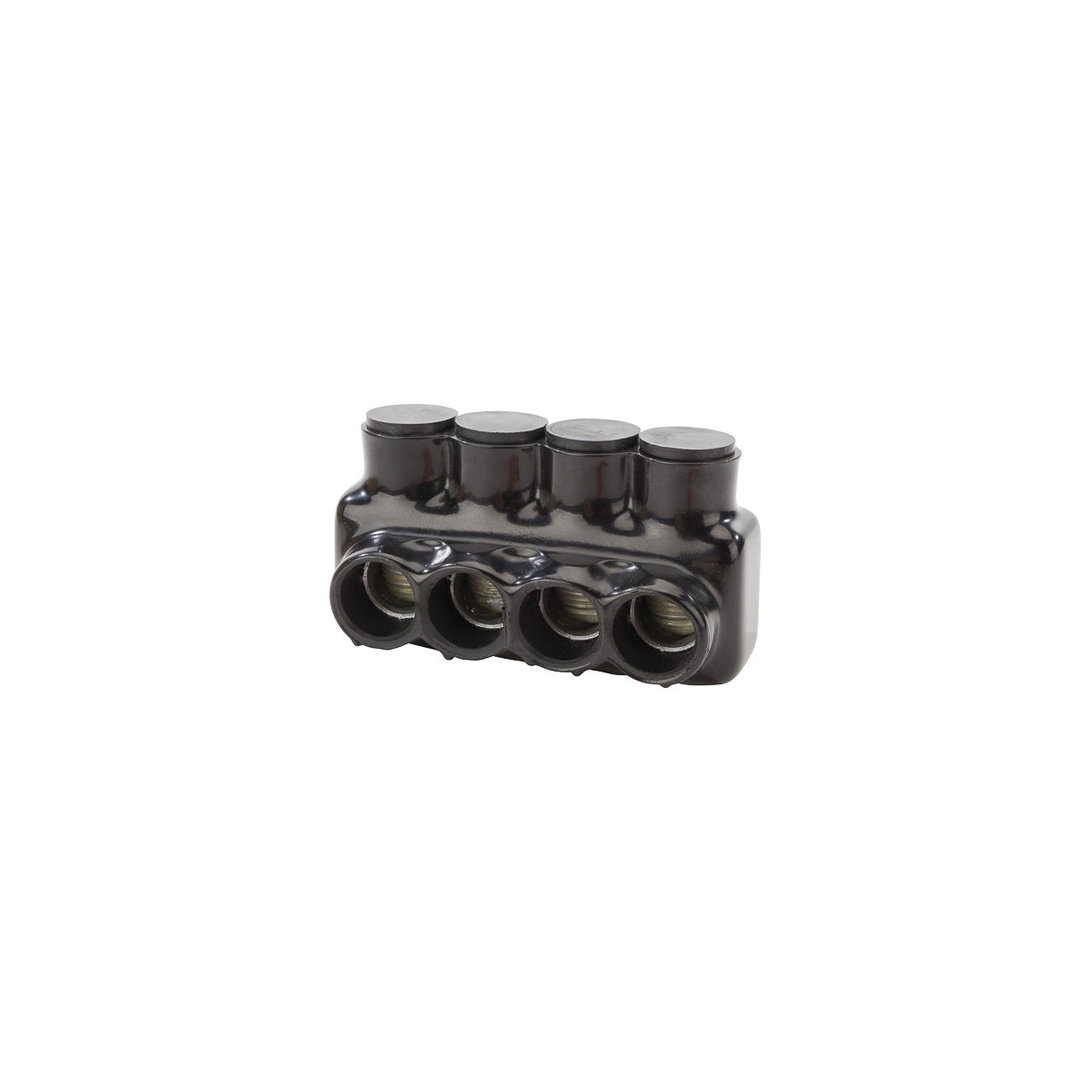

Polaris™ Ins Multi-Tap 500 4 Port SSE - Pre-Insulated Multi-Conductor Connector

The Polaris™ Insulated Multi-Tap Connector 500 MCM - 4 AWG 4 Port Single Sided Entry is designed for wire termination applications. This connector is suitable for use by electrical distributors and switchgear suppliers requiring reliable, insulated connections for Class B & C wire types. It features a plastisol insulated finish over an aluminum body, providing abrasion, chemical, and UV resistance while maintaining high dielectric strength. The connector supports up to 4 conductors, rated for 90°C environmental conditions, and is UL Listed for dry locations, making it ideal for lighting solutions and wire and cable applications that demand safety and code compliance.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPL500-4
• Application: Wire Termination
• Number of Conductors: 4
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 5.11 in x 2.5 in x 2.94 in
• Product Weight: 1.05 lbs
• Environmental Conditions: Rated for 90°C
• UL Listing: UL Listed 486B Wire Connector (Dry Location)

Features

• Wire entry ports on one side only for streamlined installation
• Eliminates the need for cover and taping
• High-dielectric strength plastisol insulation
• Molded for precise fit with removable access plugs over hex screws
• Abrasion and chemical resistant
• UV resistant
• Will not support combustion
