Polaris™ Ins Multi-Tap 500 4 Port DSE
SKU: #304695
Part: #IPLD500-4
UPC: 662381925022
Polaris™ Ins Multi-Tap 500 4 Port DSE
SKU: #304695
Part: #IPLD500-4
UPC: 662381925022
Total Price: $78.81 per each Sold in increments of 1 each
Description

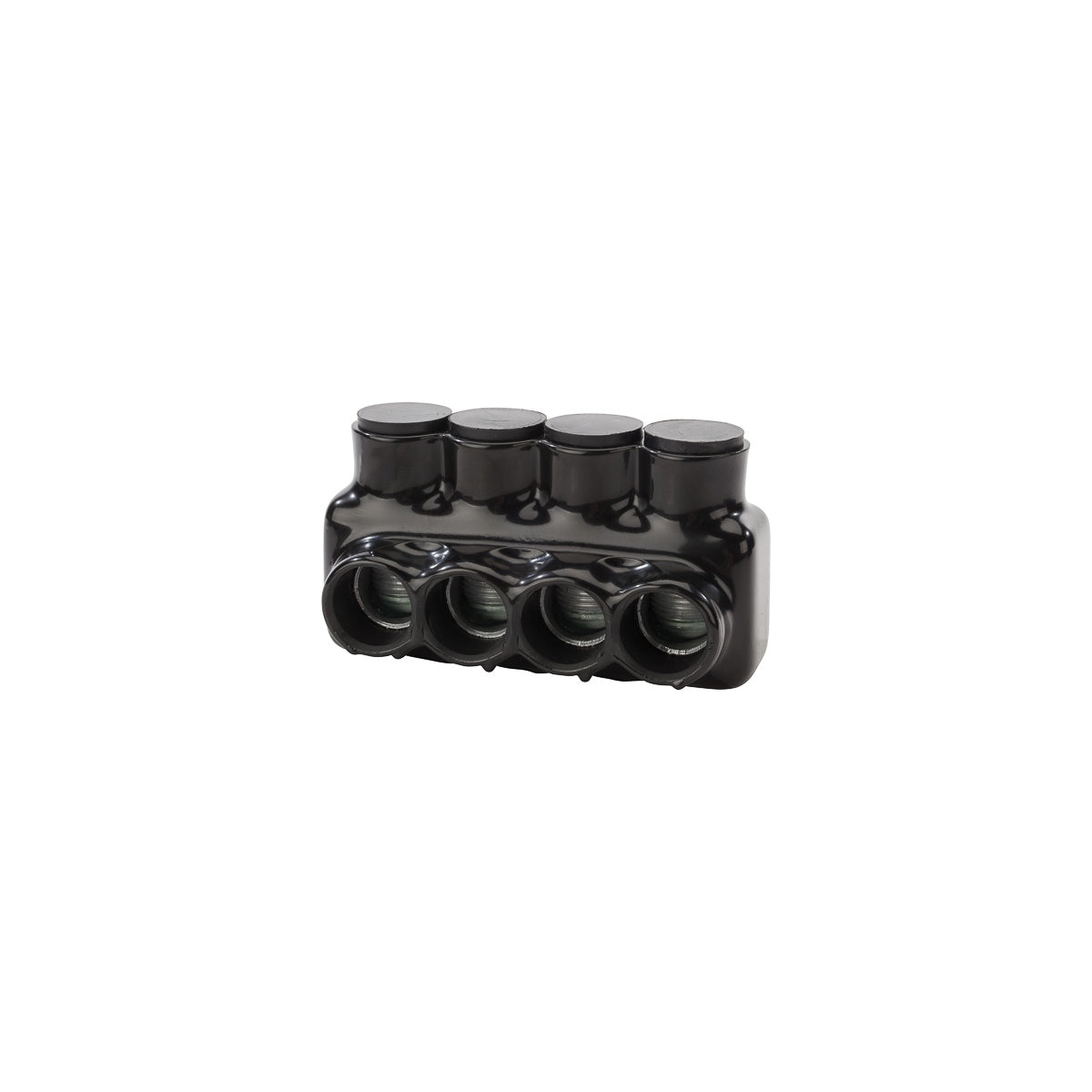

Polaris™ Ins Multi-Tap 500 4 Port DSE Electrical Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers. This insulated multi-cable connector block supports wire entry from either side, accommodating Class B and C wire types ranging from 500 MCM to 4 AWG. It is suitable for use in various lighting solutions and wire and cable installations requiring durable, dual-rated connectors.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLD500-4
- Application: Wire Termination
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 5.24 in x 2.83 in x 2.91 in
- Product Weight: 1.05 lbs
- Environmental Conditions: Rated for 90°C
- Voltage Rating: 600V
Features
- UL 486B Listed for Copper or Aluminum Class B and C conductors
- Pre-insulated with high dielectric strength, abrasion and chemical resistant black plastisol
- Wire entry ports on both sides allow dual side entry with removable plugs for unused ports
- Cold temperature rated to -45°C and UV resistant to prevent plastisol breakdown
- Dual rated for use with copper and aluminum cables, saving installation time and materials
- Tough impervious plastisol enables use in harsh vibration-prone environments
- Eliminates the need for additional taping or covers
- Customizable UL listed options available for direct burial and submersible applications
