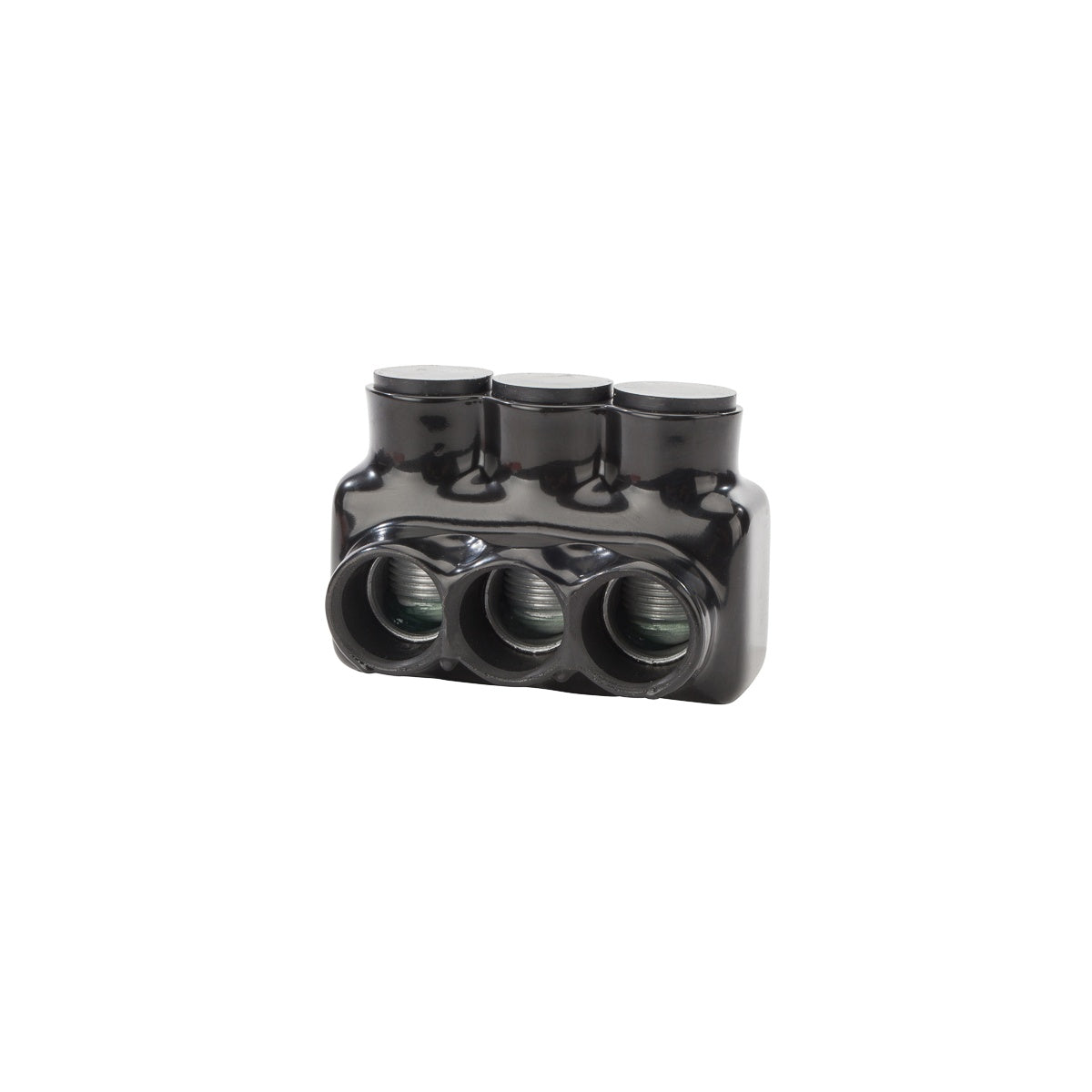

Polaris™ Ins Multi-Tap 500 3 Port SSE Multi-Conductor Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable and code-compliant solution for electrical distributors and switchgear suppliers. This connector supports wire sizes from 500 MCM to 4 AWG, accommodating Class B & C wires. It is insulated with high-dielectric strength plastisol and features a single-sided entry with three ports, simplifying installation and eliminating the need for additional cover or taping. Suitable for use in dry locations, it is rated for 600V and 90°C continuous operation.

Specifications

• Application: Wire Termination
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 3
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: 90 °C
• Dimensions (L x W x H): 3.96 in x 2.5 in x 2.94 in
• Product Weight: 0.79 lbs
• Manufacturer: NSI Industries
• Manufacturer Part #: IPL500-3
• UL Listing: UL Listed 486B Wire Connector (Dry Location)
• Voltage Rating: 600V
• Temperature Rating: -45 °C to 90 °C

Features

• Wire entry ports on one side only for streamlined installation
• Eliminates the need for cover and taping
• Insulated with high-dielectric strength plastisol for enhanced safety
• Molded for precise fit with removable access plugs over hex screws
• Abrasion and chemical resistant
• UV resistant
• Will not support combustion
