Polaris™ Ins Multi-Tap 500 2 Port
SKU: #378970
Part: #IT-500B
UPC: 662381953070
Polaris™ Ins Multi-Tap 500 2 Port
SKU: #378970
Part: #IT-500B
UPC: 662381953070
Description

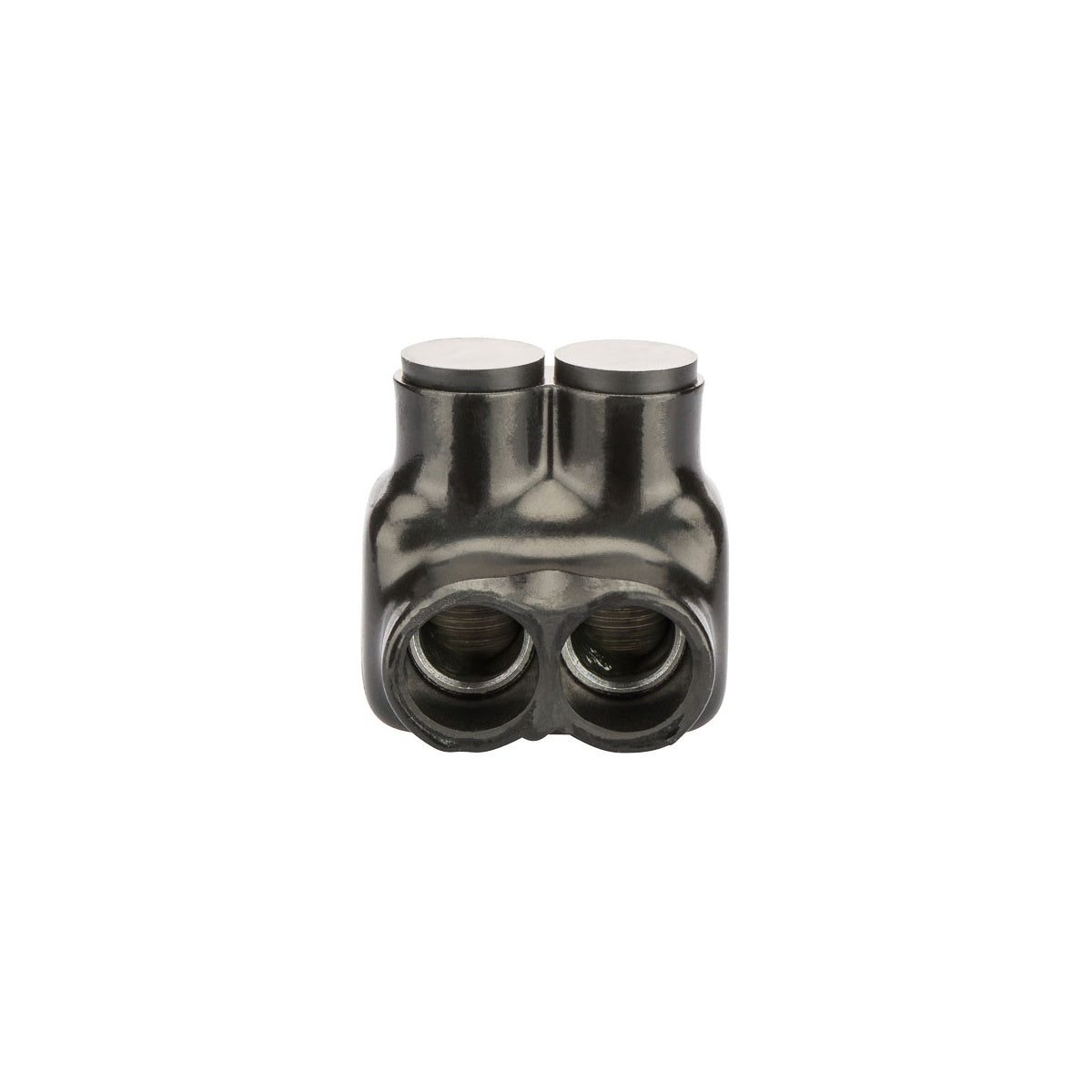

Polaris™ Ins Multi-Tap 500 2 Port Insulated Tap Connector
The Polaris™ Ins Multi-Tap 500 2 Port is a pre-insulated tap connector designed for wire termination applications. Manufactured from aluminum with a plastisol insulated finish, it supports dual-sided wire entry for connecting two conductors. This connector is suitable for use with Class B and C wire types, rated for 90°C environments, and is UL Listed for 600V dry locations. Ideal for electrical distributors and switchgear suppliers, it provides reliable and safe connections in lighting solutions and wire and cable installations.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 2
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: 90 °C
- Dimensions (L x W x H): 2.81 in x 2.87 in x 2.94 in
- Product Weight: 0.6280 lbs
- Manufacturer: NSI Industries
- Manufacturer Part #: IT-500B
- UL Listed: UL 486B Wire Connector (Dry location), rated 600V, 90°C
- Temperature Rating: Cold temperature rated to -45 °C
Features
- Dual-sided entry ports allow wire access from both sides, enabling flexible installation
- Pre-insulated with abrasion, chemical, and UV resistant plastisol insulation
- Suitable for connecting two wires with sizes ranging from 500 MCM to 4 AWG
- High dielectric strength insulation that will not support combustion
- Dual rated for use with copper and aluminum cables
