Description

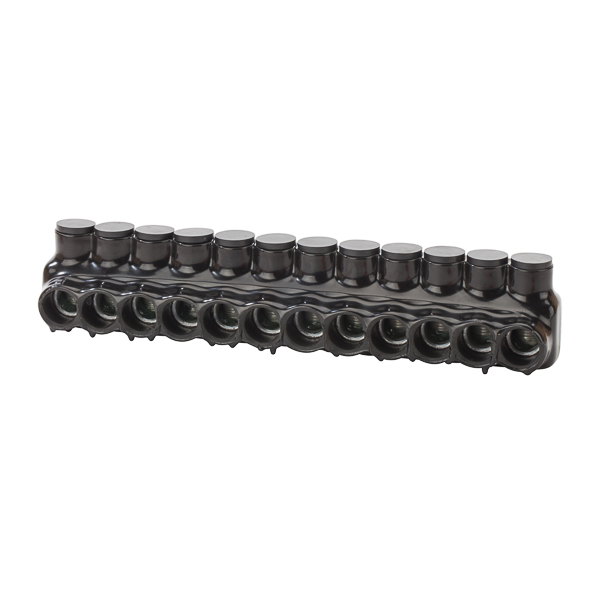

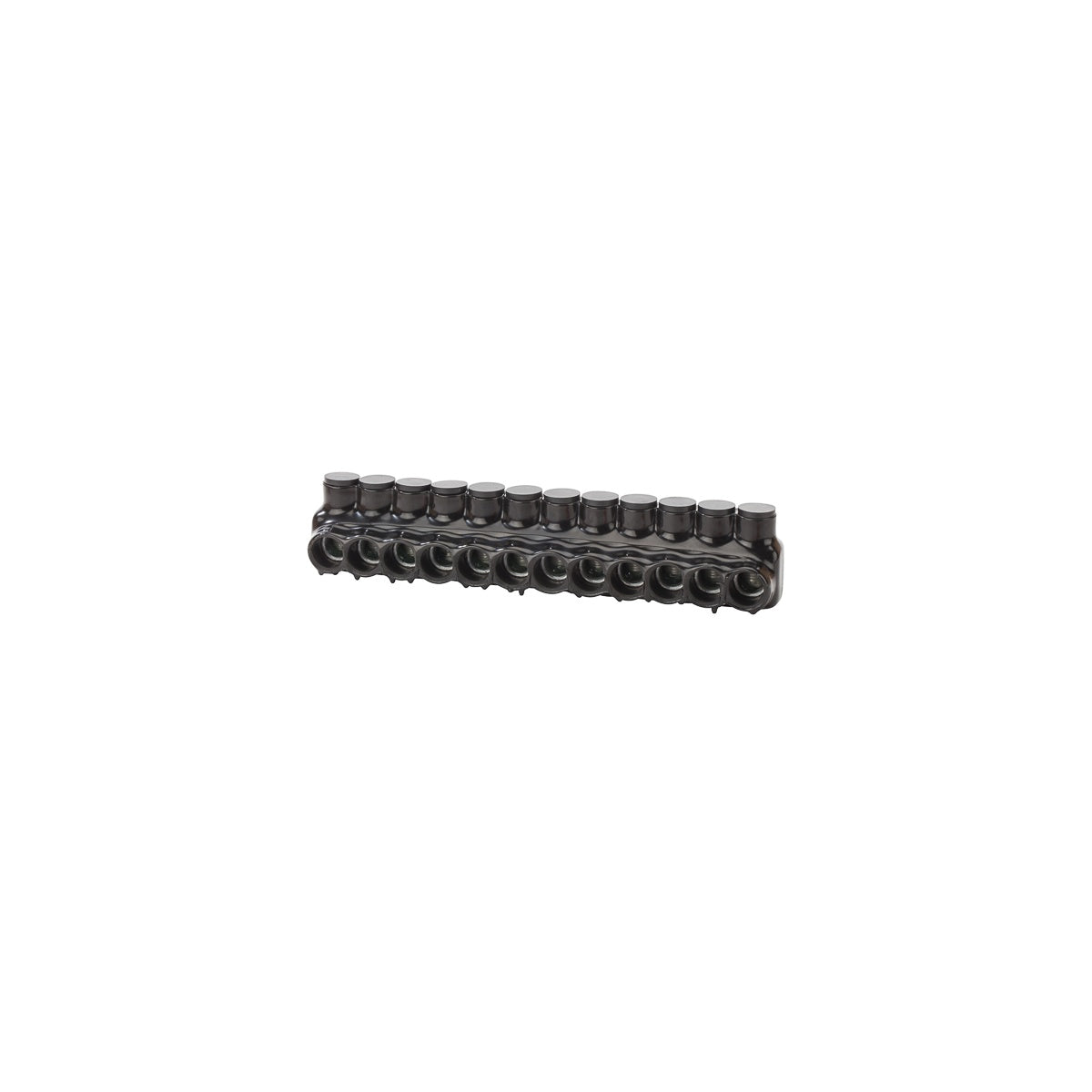

Polaris™ Ins Multi-Tap 500 12 Port DSE – Pre-Insulated Multi-Conductor Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and lighting solutions providers needing efficient wire and cable connections. This connector supports dual-sided wire entry, accommodating Class B & C wire types, and is suitable for use in environments up to 90°C. It is ideal for use by switchgear suppliers requiring durable, insulated connectors for multi-conductor applications.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLD500-12
- Application: Wire Termination
- Number of Conductors: 12
- Number of Poles: 1
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Wire Type: Class B & C
- Environmental Conditions: 90°C rating
- Dimensions (L x W x H): 14.4 in x 2.83 in x 2.91 in
- Product Weight: 3.13 lbs
Features
- Wire entry ports on both sides allow access from either side, improving installation flexibility.
- Eliminates the need for cover and taping, streamlining installation.
- Insulated with high-dielectric strength plastisol for electrical safety and durability.
- Molded for precise fit and supplied with removable access plugs over the hex screws.
- Removable plugs close unused entry ports to maintain insulation integrity.
- Abrasion and chemical resistant, suitable for demanding electrical environments.
- UV resistant to prevent degradation in exposed applications.
- Will not support combustion, enhancing safety in electrical installations.
- UL Listed 486B Wire Connector for dry locations, rated 600V and 90°C.
- Dual rated for use with copper and aluminum cables (not for fine-stranded flexible wire).
