Polaris™ Ins Multi-Tap 500 10 Port DSE
SKU: #304680
Part: #IPLD500-10
UPC: 662381925084
Polaris™ Ins Multi-Tap 500 10 Port DSE
SKU: #304680
Part: #IPLD500-10
UPC: 662381925084
Description

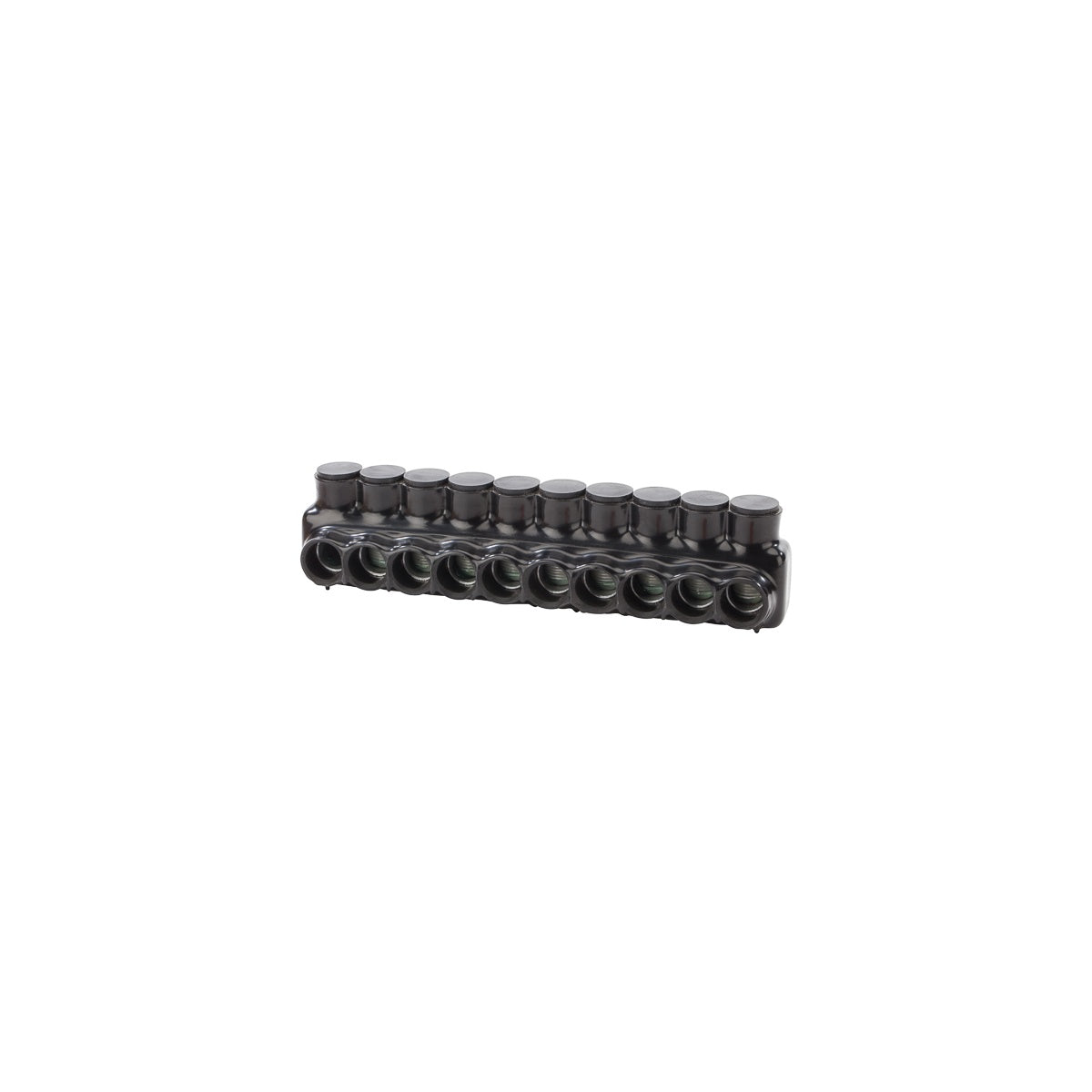

Polaris™ Ins Multi-Tap 500 10 Port DSE Wire Termination Connector
The Polaris™ Insulated Multi-Tap 500 10 Port Dual Side Entry (DSE) connector is designed for wire termination applications, providing a reliable solution for electrical distributors and lighting solutions requiring secure multi-conductor connections. This connector supports Class B & C copper and aluminum wire types and is suitable for use in wire and cable assemblies and switchgear supplier applications where durable, insulated connections are critical.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLD500-10
- Application: Wire Termination
- Number of Conductors: 10
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 12.11 in x 2.83 in x 2.91 in
- Product Weight: 2.61 lbs
- Environmental Conditions: Rated for 90 °C
- UL Listing: UL 486B Wire Connector (Dry location), rated 600V, cold temperature rated to -45 °C
Features
- Wire entry ports on both sides allow access from either side, enhancing installation flexibility
- Pre-insulated with high-dielectric strength plastisol, eliminating the need for additional cover or taping
- Molded for precise fit and supplied with removable access plugs over hex screws
- Removable plugs close unused entry ports to maintain insulation integrity
- Abrasion, chemical, and UV resistant for use in harsh environments
- Will not support combustion, ensuring safety in electrical installations
- Dual rated for use with copper and aluminum cables, providing cost-effective conductor options
- Suitable for use with copper or dual rated split bolts or mechanical splice blocks
