Polaris™ Ins Multi-Tap 4 8 Port SSE
SKU: #304431
Part: #IPL4-8
UPC: 662381910066
Polaris™ Ins Multi-Tap 4 8 Port SSE
SKU: #304431
Part: #IPL4-8
UPC: 662381910066
Total Price: $66.92 per each Sold in increments of 1 each
Description

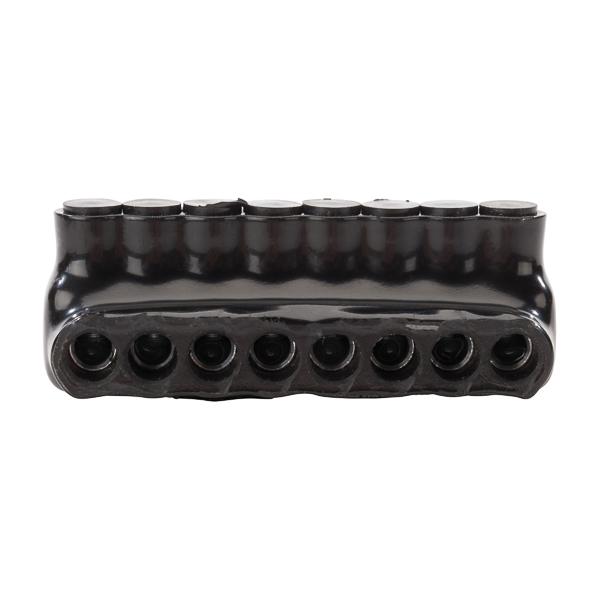

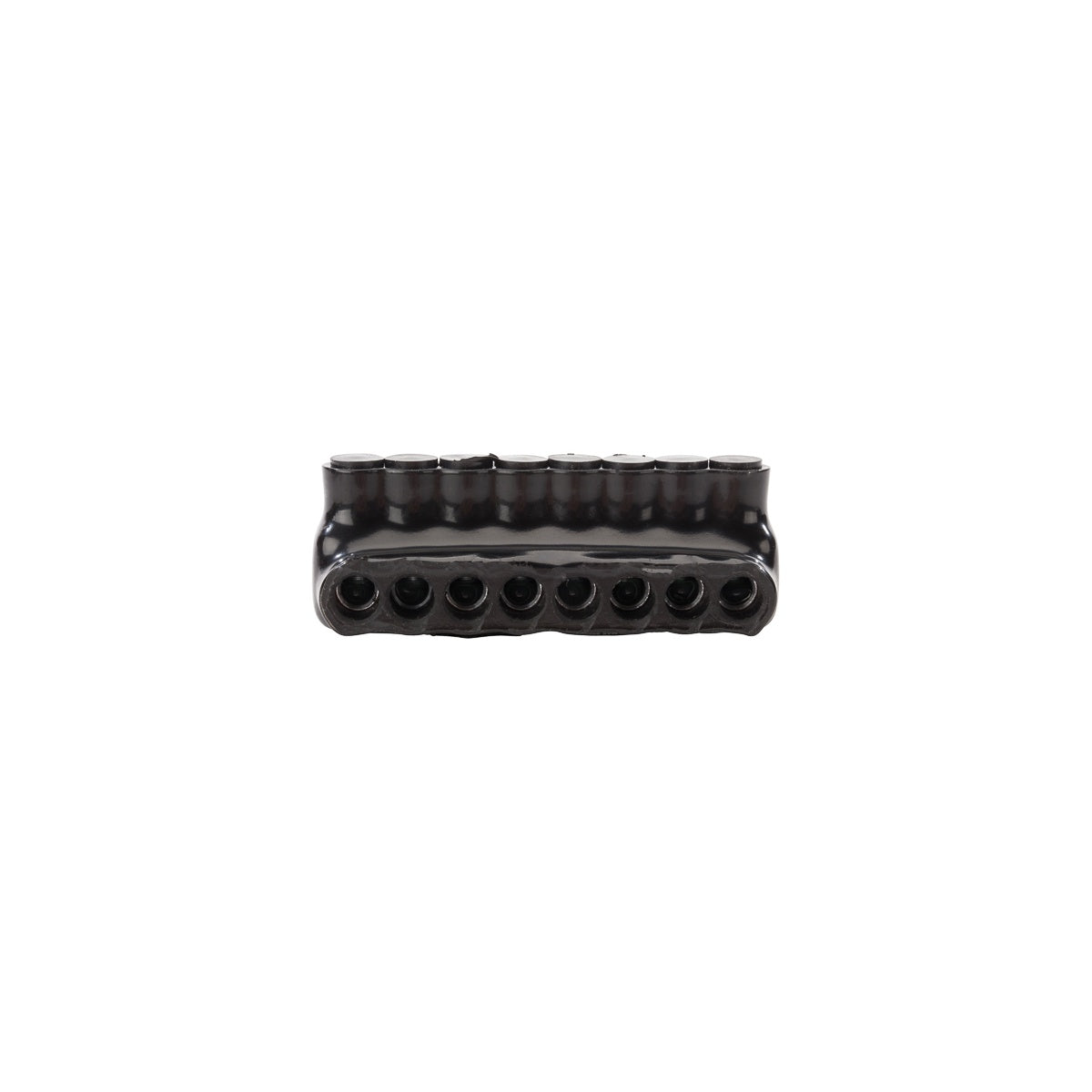

Polaris™ Ins Multi-Tap 4 8 Port SSE Wire Termination Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. This product features a single-sided entry with eight ports, accommodating 4-14 AWG wire sizes. It is constructed with aluminum and insulated with high-dielectric strength plastisol, providing abrasion, chemical, and UV resistance. The connector supports Class B & C wire types and operates safely up to 90°C, making it a robust choice for switchgear suppliers and electrical installations.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPL4-8
- Application: Wire Termination
- Number of Conductors: 8
- Number of Poles: 1
- Wire Type: Class B & C
- Wire Range: 4-14 AWG
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 3.66 in x 1.188 in x 1.375 in
- Product Weight: 0.2100 lbs
- Environmental Conditions: 90°C temperature rating
- UL Listed 486B Wire Connector (Dry location)
- Voltage Rating: 600V
- Temperature Rating: Cold rated to -45°C
Features
- Wire entry ports on one side only
- Eliminates the need for cover and taping
- Insulated with high-dielectric strength plastisol
- Molded for precise fit with removable access plugs over hex screws
- Abrasion and chemical resistant
- UV resistant
- Will not support combustion
