Polaris™ Ins Multi-Tap 4 5 Port SSE
SKU: #304413
Part: #IPL4-5
UPC: 662381910035
Polaris™ Ins Multi-Tap 4 5 Port SSE
SKU: #304413
Part: #IPL4-5
UPC: 662381910035
Total Price: $43.41 per each Sold in increments of 1 each
Description

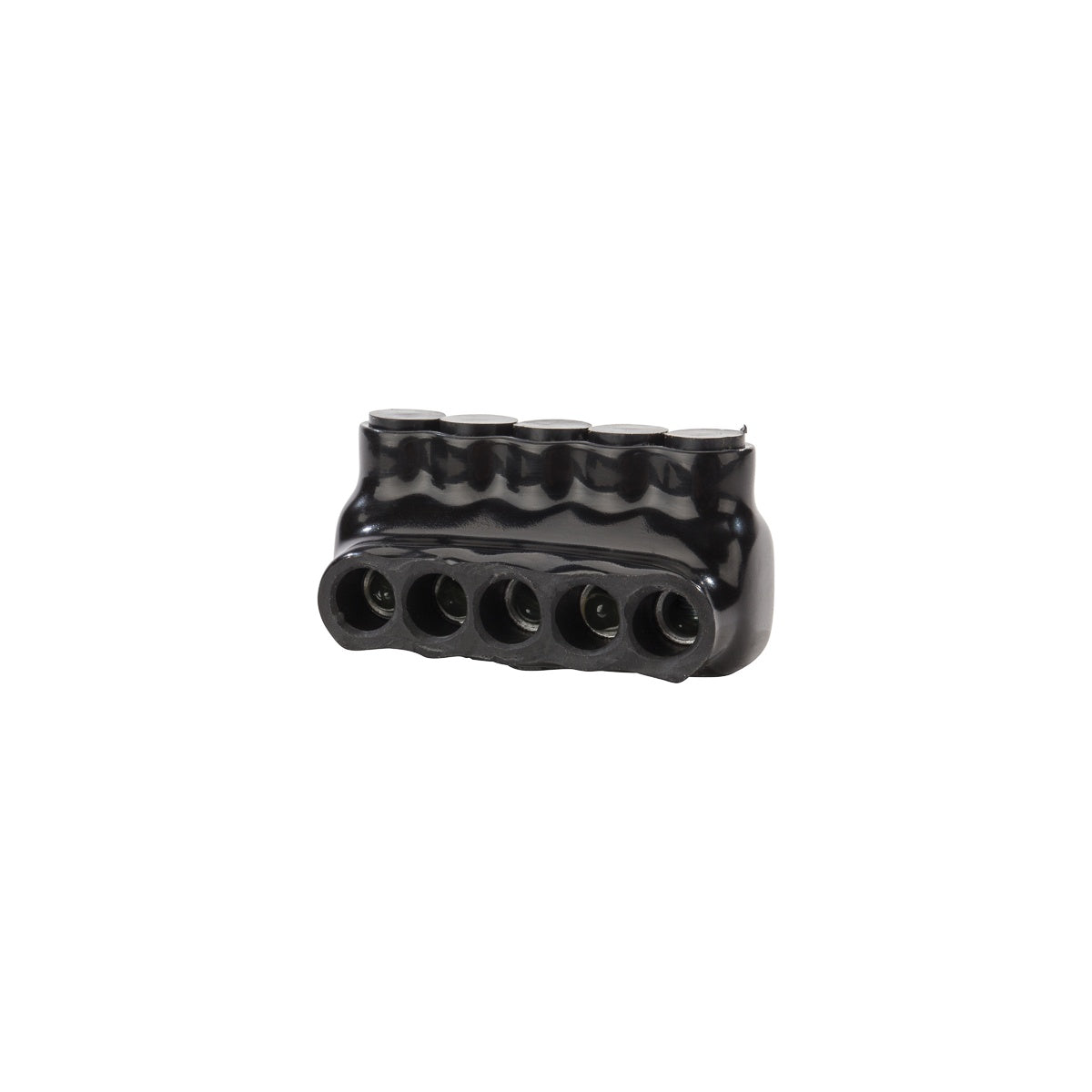

Polaris™ Ins Multi-Tap 4 5 Port SSE – Pre-Insulated Multi-Conductor Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and lighting solutions providers. This connector supports 4-14 AWG wire sizes and features a single-sided entry with five ports, suitable for use with Class B & C copper and aluminum cables. It is insulated with a high-dielectric strength plastisol finish, ensuring abrasion, chemical, and UV resistance while maintaining safety by not supporting combustion. Ideal for wire and cable distribution and switchgear suppliers requiring durable, UL-listed connectors rated for up to 600V and 90°C operating temperature.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPL4-5
- Application: Wire Termination
- Number of Conductors: 5
- Number of Poles: 1
- Wire Type: Class B & C
- Wire Range: 4-14 AWG
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 2.39 in x 1.188 in x 1.375 in
- Product Weight: 0.1300 lbs
- Environmental Conditions: 90°C
- UL Listed: UL 486B Wire Connector (Dry Location)
- Voltage Rating: 600V
Features
- Single-sided wire entry ports simplify installation
- Eliminates the need for additional cover and taping
- High-dielectric strength plastisol insulation for enhanced safety
- Molded for precise fit with removable access plugs over hex screws
- Abrasion, chemical, and UV resistant for durability in various environments
- Will not support combustion, enhancing fire safety
