Polaris™ Ins Multi-Tap 4 4 Port SSE
SKU: #304410
Part: #IPL4-4
UPC: 662381910028
Polaris™ Ins Multi-Tap 4 4 Port SSE
SKU: #304410
Part: #IPL4-4
UPC: 662381910028
Total Price: $37.41 per each Sold in increments of 1 each
Description

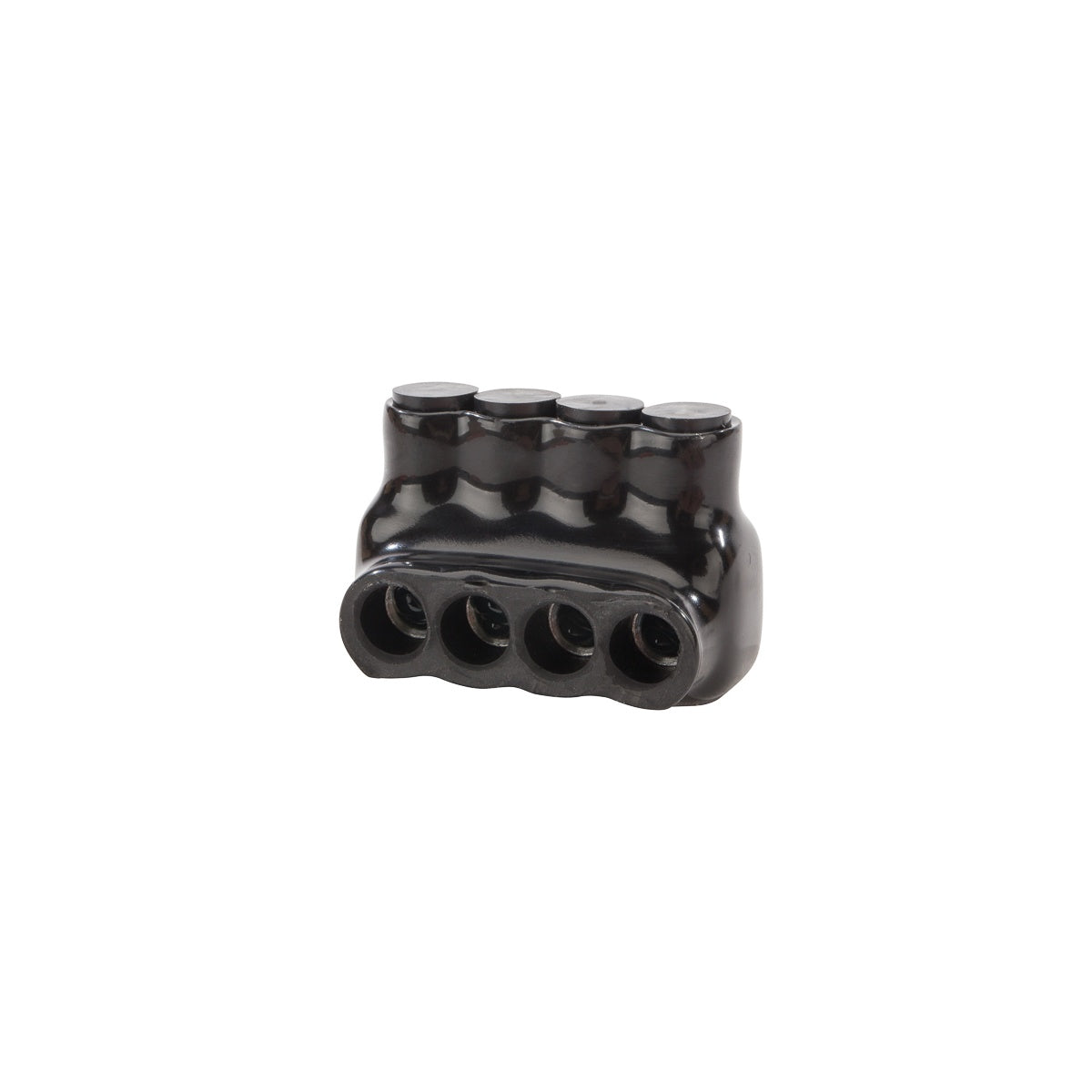

Polaris™ Ins Multi-Tap 4 4 Port SSE - Pre-Insulated Multi-Conductor Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers. This 4-port, single-sided entry connector accommodates 4-14 AWG Class B & C wire types and is suitable for use with copper and aluminum cables. It features a plastisol insulated finish for enhanced durability and safety, making it ideal for lighting solutions and wire and cable installations requiring secure multi-conductor connections.
Specifications
- Application: Wire Termination
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Wire Range: 4-14 AWG
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions: 1.97 in (Length) x 1.188 in (Width) x 1.375 in (Height)
- Product Weight: 0.1100 lbs
- Environmental Conditions: Rated for 90°C
- Manufacturer: NSI Industries
- Manufacturer Part #: IPL4-4
Features
- Wire entry ports located on one side only, simplifying installation.
- Eliminates the need for cover and taping.
- Insulated with high-dielectric strength plastisol for electrical safety.
- Molded for precise fit with removable access plugs over hex screws.
- Abrasion and chemical resistant for long-lasting performance.
- UV resistant to withstand exposure to sunlight without degradation.
- Will not support combustion, enhancing safety in electrical installations.
