Polaris™ Ins Multi-Tap 4 2 Port
SKU: #379443
Part: #IT-4B
UPC: 662381953018
Polaris™ Ins Multi-Tap 4 2 Port
SKU: #379443
Part: #IT-4B
UPC: 662381953018
Description

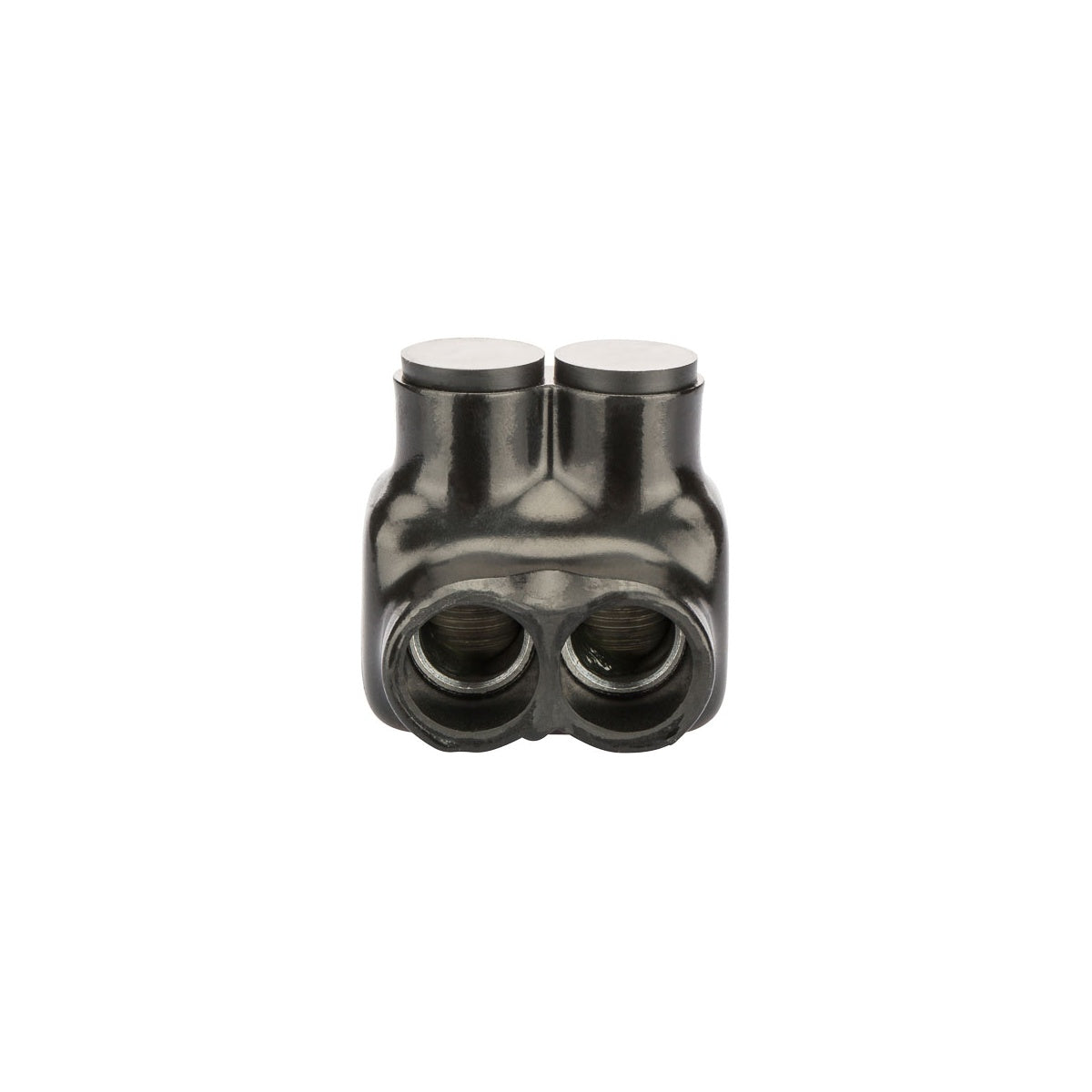

Polaris™ Ins Multi-Tap 4 2 Port Wire Termination Connector
The Polaris™ Ins Multi-Tap 4 2 Port connector is a pre-insulated, single-sided entry tap connector designed for wire termination applications. Manufactured by NSI Industries, it is suitable for use in electrical distribution and lighting solutions where reliable wire and cable connections are required. This connector supports Class B & C wire types and is dual rated for copper and aluminum cables, making it compatible with a broad range of wiring systems. It is UL Listed for dry locations and rated for 600V and 90°C operation, ensuring safety and performance in demanding electrical environments.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 2
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: 90°C
- Dimensions (L x W x H): 1.12 in x 1.18 in x 1.38 in
- Product Weight: 0.0620 lbs
- Manufacturer: NSI Industries
- Manufacturer Part Number: IT-4B
- UL Listing: UL 486B Wire Connector (Dry location)
- Voltage Rating: 600V
- Temperature Rating: 90°C, cold temperature rated to -45°C
Features
- Insul-Tap connector suitable for connecting two wires with single-sided entry
- Dual rated for use with copper and aluminum cables
- High dielectric strength insulation that is abrasion, chemical, and UV resistant
- Will not support combustion
- Compact size optimized for efficient wire termination
