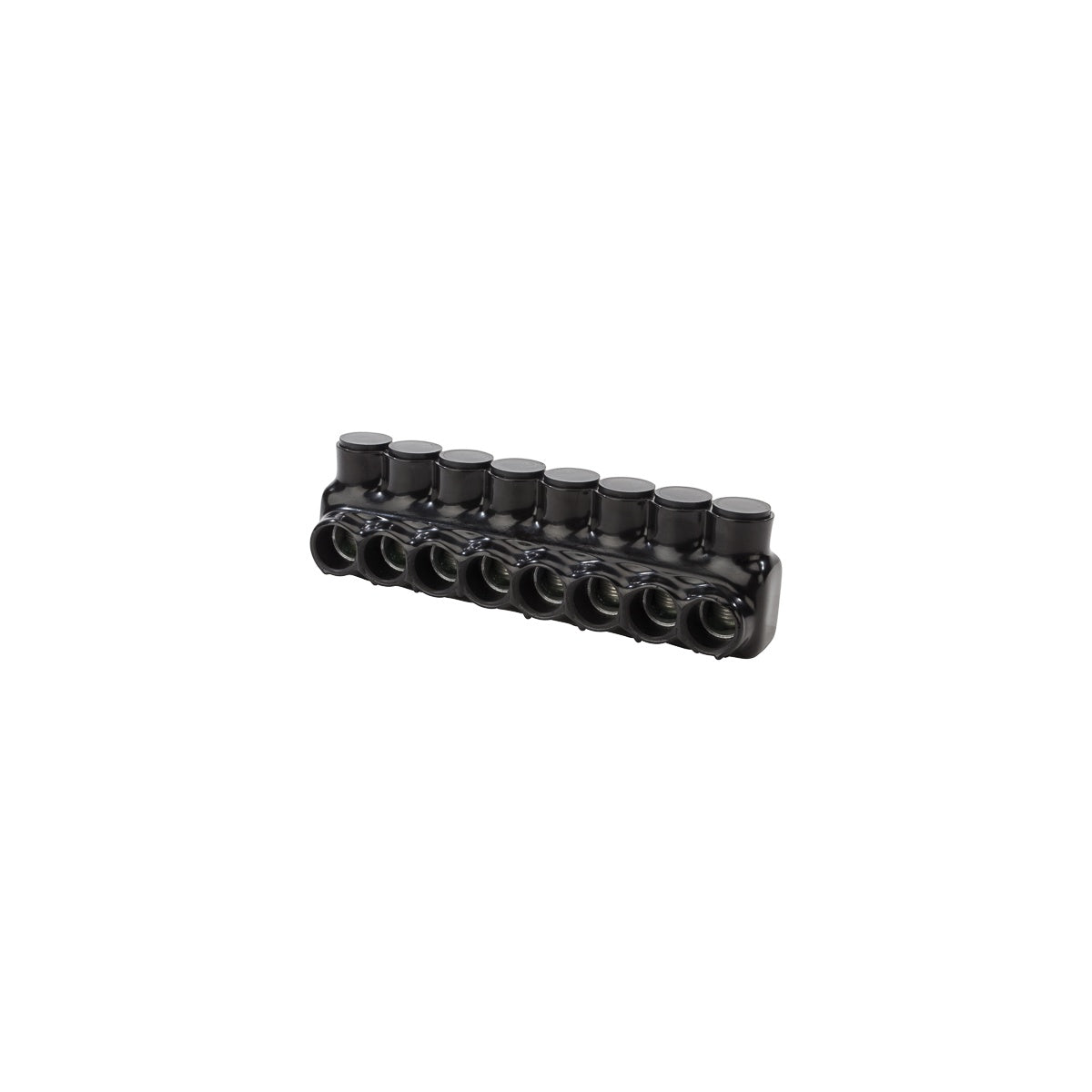

Polaris™ Ins Multi-Tap 350 8 Port SSE Multi-Conductor Connector

The Polaris™ Insulated Multi-Tap Connector, model IPL350-8, is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers requiring efficient multi-port connections. This connector supports wire sizes from 350 MCM to 6 AWG and features a single-sided wire entry for streamlined installation in lighting solutions and wire and cable systems.

Specifications

• Application: Wire Termination
• Number of Conductors: 8
• Number of Poles: 1
• Wire Type: Class B & C (dual rated for copper and aluminum cables; not for fine-stranded, flexible wire)
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 8.72 in x 2.13 in x 2.46 in
• Product Weight: 1.5 lbs
• Environmental Conditions: Rated for 90 °C
• UL Listing: UL Listed 486B Wire Connector (Dry location)
• Voltage Rating: 600V
• Temperature Rating: Cold rated to -45 °C
• Maximum Ampacity: 1314 A (Copper), 1028 A (Aluminum)
• Maximum Torque: 400 in./lbs.
• Hex/Wrench Size: 5/16 in.
• Manufacturer: NSI Industries
• Manufacturer Part Number: IPL350-8

Features

• Wire entry ports located on one side only for ease of installation
• Eliminates the need for cover and taping
• High-dielectric strength plastisol insulation provides abrasion and chemical resistance
• Molded for precise fit with removable access plugs over hex screws
• UV resistant and will not support combustion
