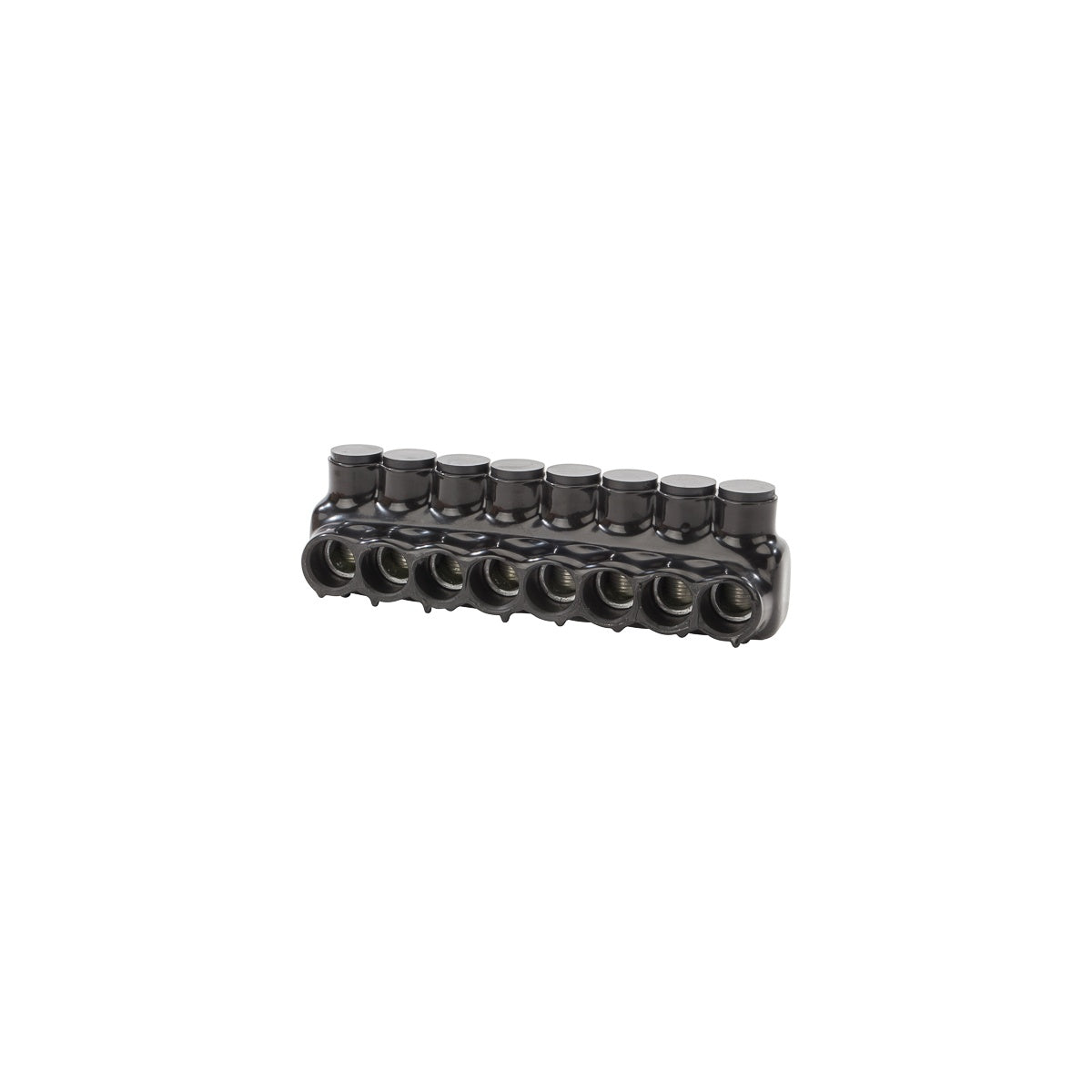

Polaris™ Ins Multi-Tap 350 8 Port DSE - Pre-Insulated Multi-Conductor Connector

The Polaris™ Insulated Multi-Tap Connector by NSi Industries is designed for wire termination applications, providing a reliable solution for electrical distributors and lighting solutions providers. This 8-port connector supports wire sizes from 350 MCM to 6 AWG and accommodates Class B & C wire types. It features dual-sided entry ports for versatile wire access, making it suitable for use in wire and cable management as well as switchgear assemblies. The connector is plastisol insulated for high dielectric strength and is rated for 90°C environmental conditions, ensuring durability and safety in dry locations.

Specifications

• Manufacturer: NSi Industries
• Manufacturer Part #: IPLD350-8
• Application: Wire Termination
• Number of Conductors: 8
• Number of Poles: 1
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Wire Type: Class B & C
• Environmental Conditions: 90°C
• Dimensions (L x W x H): 8.77 in x 2.41 in x 2.61 in
• Product Weight: 1.5 lbs

Features

• Dual-sided wire entry ports allow access from either side
• Eliminates the need for cover and taping
• Insulated with high-dielectric strength plastisol for electrical safety
• Molded for precise fit with removable access plugs over hex screws
• Removable plugs to close unused entry ports
• Abrasion, chemical, and UV resistant
• Will not support combustion
