Polaris‚Ñ¢ Ins Multi-Tap 350 6 Port SSE Multi-Conductor Connector

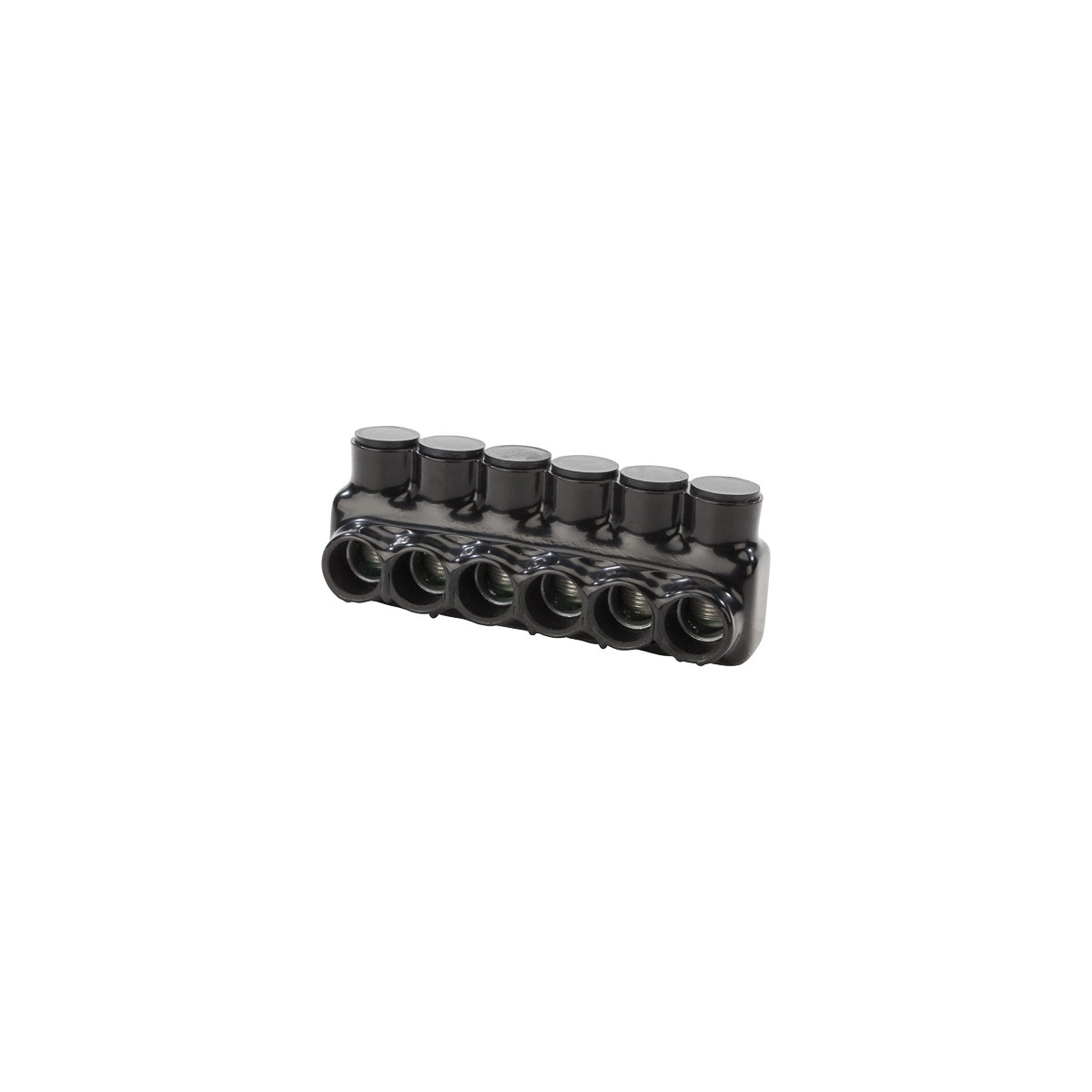

The Polaris‚Ñ¢ Insulated Multi-Tap Connector (Model IPL350-6) is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers handling wire and cable installations. This connector features six ports with single-sided entry, accommodating wire sizes from 350 MCM to 6 AWG. It is suitable for use with Class B & C wire types and is insulated with high-dielectric strength plastisol for enhanced safety and durability in lighting solutions and electrical distribution systems.

Specifications

• Application: Wire Termination
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 6.62 in x 2.13 in x 2.46 in
• Product Weight: 1.14 lbs
• Environmental Conditions: Rated for 90 ¬∞C
• Manufacturer: NSI Industries
• Manufacturer Part Number: IPL350-6

Features

• Wire entry ports located on one side only for ease of installation
• Eliminates the need for cover and taping, reducing installation time
• Insulated with abrasion and chemical resistant, high-dielectric strength plastisol
• Molded for precise fit with removable access plugs over hex screws
• UV resistant and will not support combustion
• UL Listed 486B Wire Connector for dry locations, rated 600V and cold temperature rated to -45 ¬∞C
• Dual rated for use with copper and aluminum cables (not for fine-stranded, flexible wire)
• Torque value: 400 in./lbs. with 5/16 inch hex wrench size

Downloads & Links

• Catalog Page
• Product Advertisement
