Polaris™ Ins Multi-Tap 350 6 Port DSE
SKU: #304654
Part: #IPLD350-6
UPC: 662381924049
Polaris™ Ins Multi-Tap 350 6 Port DSE
SKU: #304654
Part: #IPLD350-6
UPC: 662381924049
Total Price: $100.75 per each Sold in increments of 1 each
Description

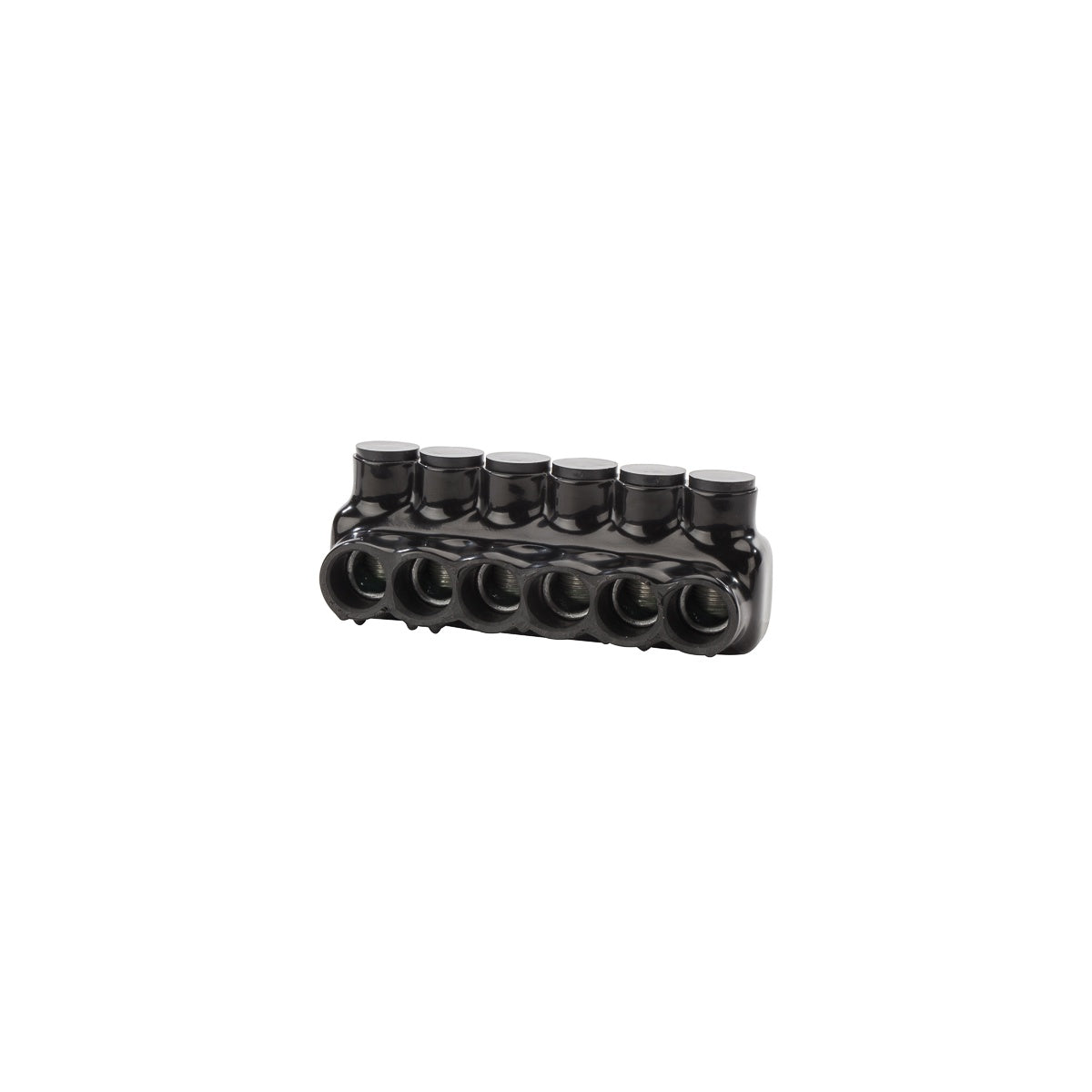

Polaris™ Ins Multi-Tap 350 6 Port DSE - Pre-Insulated Multi-Conductor Connector
The Polaris™ Insulated Multi-Tap Connector by NSi Industries is designed for wire termination applications, providing reliable electrical connections for wire and cable systems. This 6-port connector supports wire sizes from 350 MCM to 6 AWG and features dual-sided entry for versatile wiring access. It is suitable for use in electrical distribution and lighting solutions, offering compatibility with Class B and C wire types. The connector is insulated with high-dielectric strength plastisol, making it abrasion, chemical, and UV resistant, and suitable for dry locations with a temperature rating of 90°C.
Specifications
- Manufacturer: NSi Industries
- Manufacturer Part #: IPLD350-6
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 6
- Number of Poles: 1
- Wire Type: Class B & C
- Dimensions (L x W x H): 6.67 in x 2.41 in x 2.61 in
- Product Weight: 1.14 lbs
- Environmental Conditions: Rated for 90°C
- UL Listing: UL Listed 486B Wire Connector (Dry location)
- Voltage Rating: 600V
- Temperature Rating: Cold temperature rated to -45°C, rated 90°C
Features
- Wire entry ports on both sides allow access from either side
- Eliminates the need for cover and taping
- Insulated with high-dielectric strength plastisol for electrical safety
- Molded for precise fit with removable access plugs over hex screws
- Removable plugs to close unused entry ports
- Abrasion, chemical, and UV resistant
- Will not support combustion
