Polaris™ Ins Multi-Tap 350 5 Port DSE
SKU: #304644
Part: #IPLD350-5
UPC: 662381924032
Polaris™ Ins Multi-Tap 350 5 Port DSE
SKU: #304644
Part: #IPLD350-5
UPC: 662381924032
Total Price: $89.89 per each Sold in increments of 1 each
Description

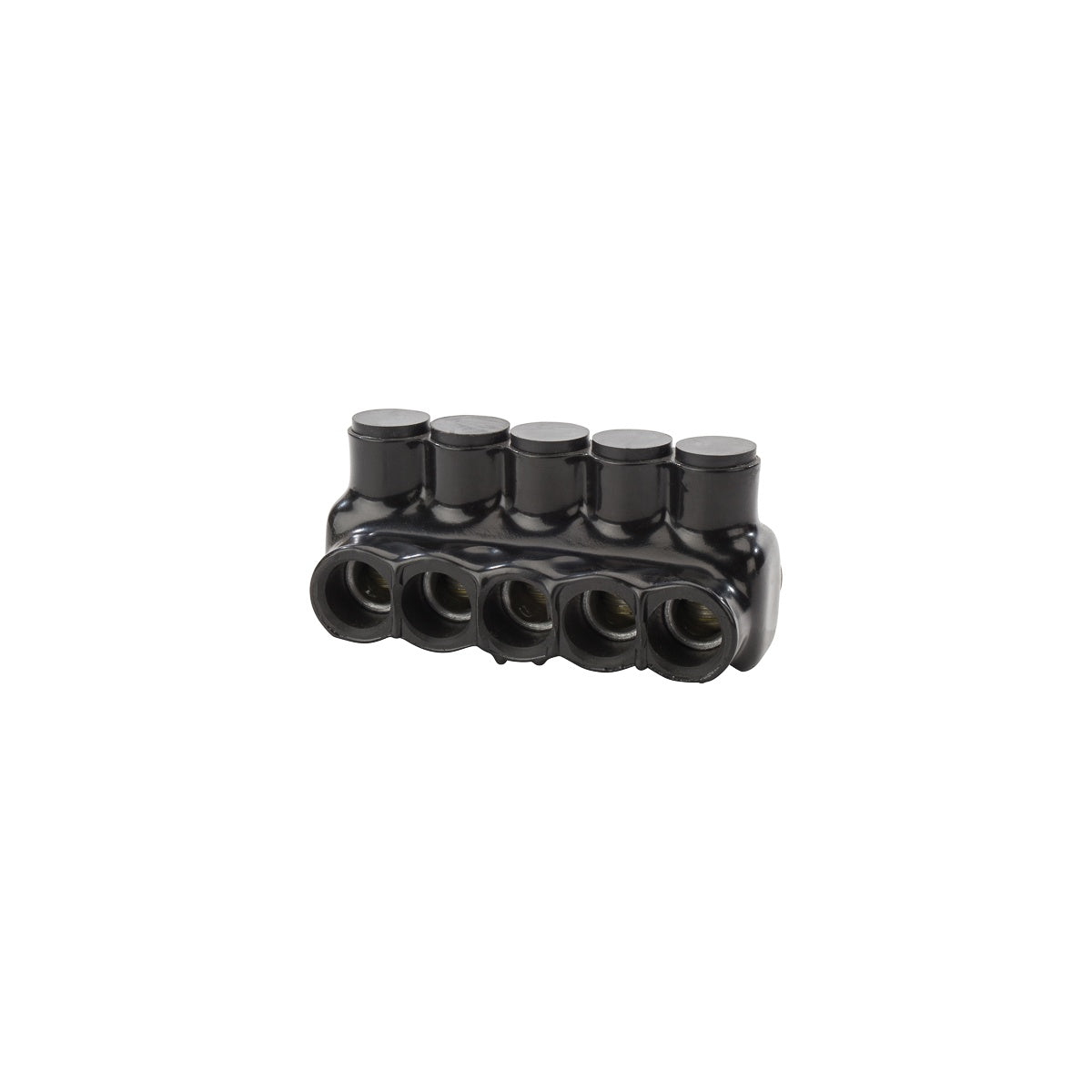

Polaris™ Ins Multi-Tap 350 5 Port DSE – Wire Termination Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing reliable electrical connections for copper and aluminum conductors in wire and cable systems. This 5-port, dual-sided entry connector supports Class B and C wire types and is suitable for use by electrical distributors and switchgear suppliers seeking durable, pre-insulated solutions for complex wiring configurations.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 5
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: Rated for 90°C
- Dimensions (L x W x H): 5.62 in x 2.41 in x 2.61 in
- Product Weight: 0.96 lbs
- Manufacturer: NSI Industries
- Manufacturer Part Number: IPLD350-5
Features
- Wire entry ports on both sides allow access from either side, eliminating the need for cover and taping.
- Pre-insulated with high-dielectric strength plastisol for abrasion, chemical, and UV resistance.
- Molded for precise fit and supplied with removable access plugs over hex screws to close unused ports.
- Cold temperature rated to -45°C and UL Listed 486B for dry location use.
- Dual rated for use with copper and aluminum cables, providing installation flexibility and cost savings.
- Will not support combustion, suitable for harsh vibration-prone and UV intense environments.
