Polaris™ Ins Multi-Tap 350 4 Port SSE
SKU: #304358
Part: #IPL350-4
UPC: 662381914026
Polaris™ Ins Multi-Tap 350 4 Port SSE
SKU: #304358
Part: #IPL350-4
UPC: 662381914026
Total Price: $64.24 per each Sold in increments of 1 each
Description

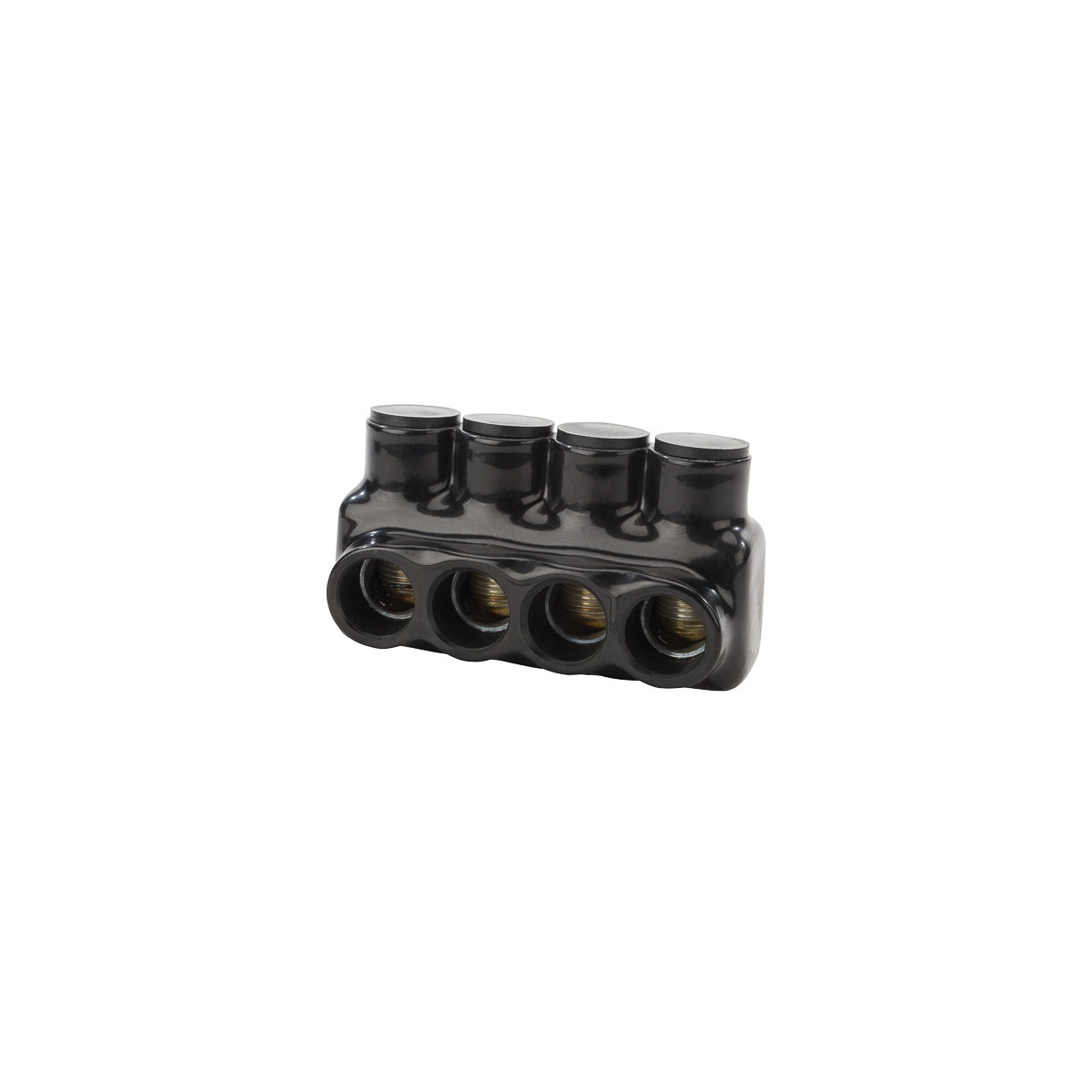

Polaris™ Ins Multi-Tap 350 4 Port SSE Wire Termination Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers. This connector supports wire sizes from 350 MCM to 6 AWG and features a single-sided entry with four ports. It is suitable for use with Class B and C wire types and is insulated with high-dielectric strength plastisol, offering abrasion, chemical, and UV resistance. The product is UL Listed 486B for dry locations, rated for 600V and 90°C operation, ensuring compliance and safety in lighting solutions and wire and cable installations.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPL350-4
- Application: Wire Termination
- Wire Range: 350 MCM - 6 AWG
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 4.54 in x 2.13 in x 2.46 in
- Product Weight: 0.7700 lbs
- Environmental Conditions: 90 °C
- Voltage Rating: 600V
- UL Listing: UL 486B Wire Connector (Dry location)
Features
- Wire entry ports on one side only, simplifying installation
- Eliminates the need for cover and taping
- High-dielectric strength plastisol insulation for safety and durability
- Molded for precise fit with removable access plugs over hex screws
- Abrasion, chemical, and UV resistant
- Will not support combustion
- Dual rated for use with copper and aluminum cables
