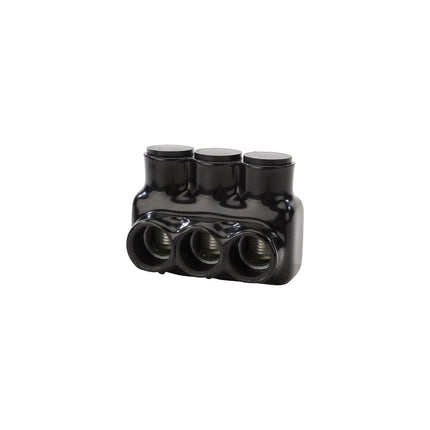

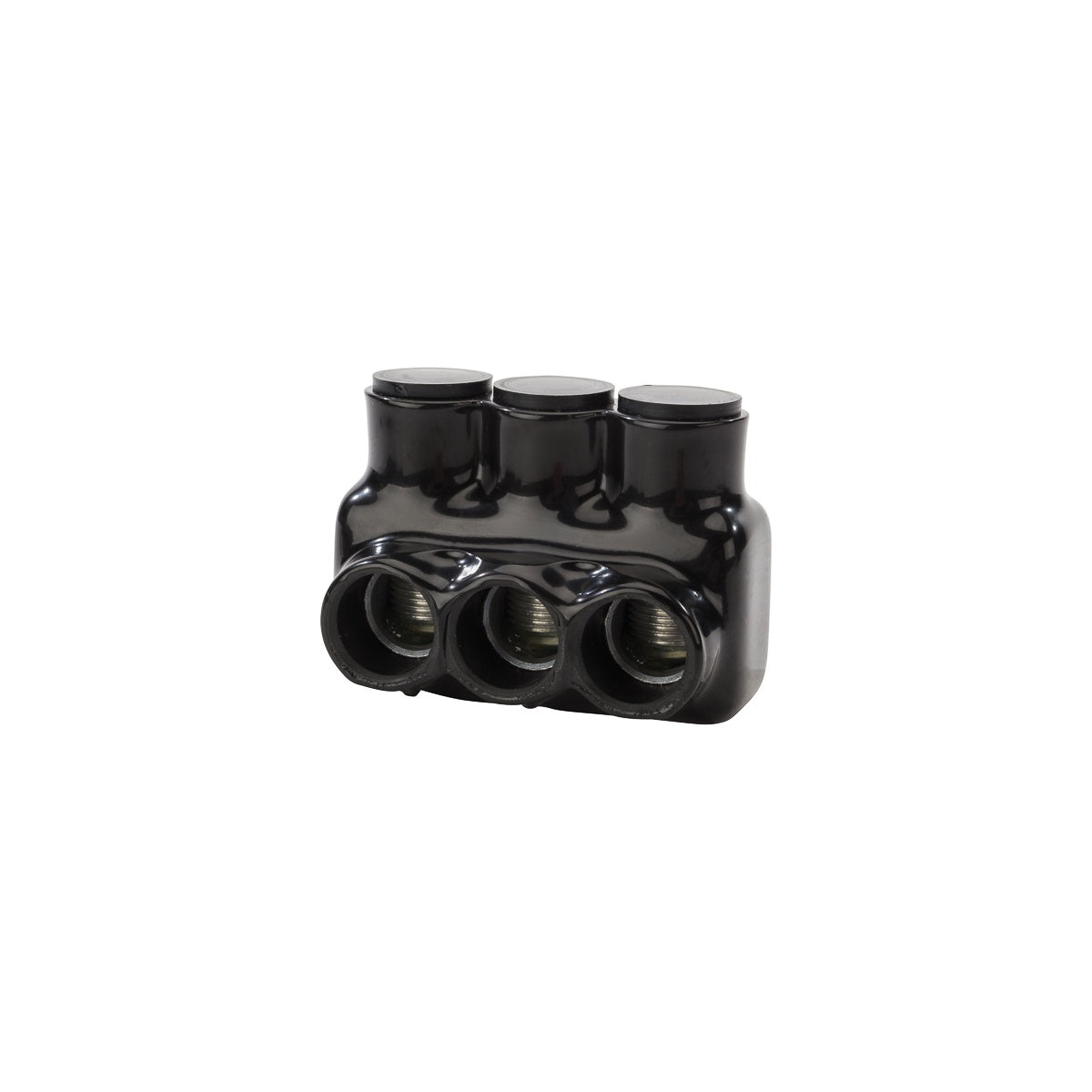

Polaris™ Ins Multi-Tap 350 3 Port SSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and lighting solutions providers. This connector supports wire sizes from 350 MCM to 6 AWG and features a single-sided entry with three ports, suitable for use with Class B and C wire types. Manufactured by NSI Industries, it is ideal for use in wire and cable terminations requiring secure, insulated connections.

Specifications

• Application: Wire Termination
• Number of Conductors: 3
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Environmental Conditions: 90 °C
• Product Weight: 0.5900 lbs
• Dimensions (L x W x H): 3.47 in x 2.13 in x 2.46 in
• Manufacturer: NSI Industries
• Manufacturer Part #: IPL350-3

Features

• Wire entry ports on one side only for streamlined installation
• Eliminates the need for cover and taping
• Insulated with high-dielectric strength plastisol for electrical safety
• Molded for precise fit with removable access plugs over hex screws
• Abrasion, chemical, and UV resistant
• Will not support combustion
