Polaris™ Ins Multi-Tap 350 12 Port DSE
SKU: #304614
Part: #IPLD350-12
UPC: 662381924100
Polaris™ Ins Multi-Tap 350 12 Port DSE
SKU: #304614
Part: #IPLD350-12
UPC: 662381924100
Total Price: $293.71 per each Sold in increments of 1 each
Description

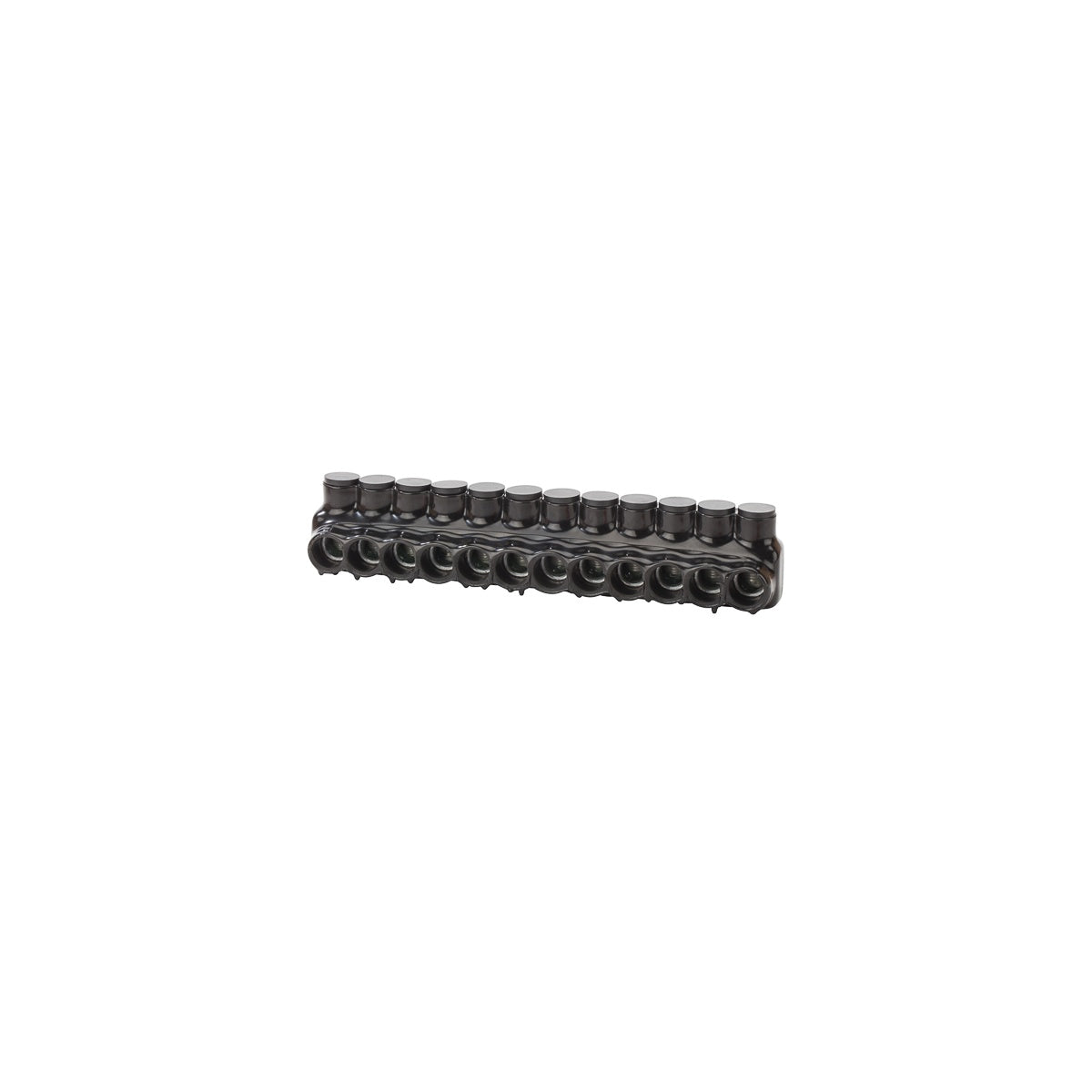

Polaris™ Ins Multi-Tap 350 12 Port DSE Connector for Wire Termination
The Polaris™ Insulated Multi-Tap 350 12 Port Dual Sided Entry (DSE) connector is designed for wire termination applications, suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. Manufactured by NSI Industries, this connector accommodates wire sizes from 350 MCM to 6 AWG and supports Class B & C wire types. It is constructed from durable aluminum with a plastisol insulated finish, providing high dielectric strength insulation that is abrasion, chemical, and UV resistant. This product is UL listed per UL486A/B specifications for 600V and rated for 90°C copper and aluminum conductors, making it appropriate for demanding switchgear supplier requirements.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLD350-12
- Application: Wire Termination
- Number of Conductors: 12
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Length: 12.97 in
- Width: 2.41 in
- Height: 2.61 in
- Environmental Conditions: Rated for 90°C
- Product Weight: 2.22 lbs
- UL Listed: UL486A/B for 600V
- Cold Temperature Rating: -45°C
Features
- Dual sided entry with removable caps for flexible wire insertion
- Pre-filled with oxide inhibitor to ensure reliable electrical contact
- 5/16 internal hex pressure screws for secure wire termination
- High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
- Manufactured from 6061-T6 aluminum alloy for durability and conductivity
- Dual rated for copper and aluminum conductors
