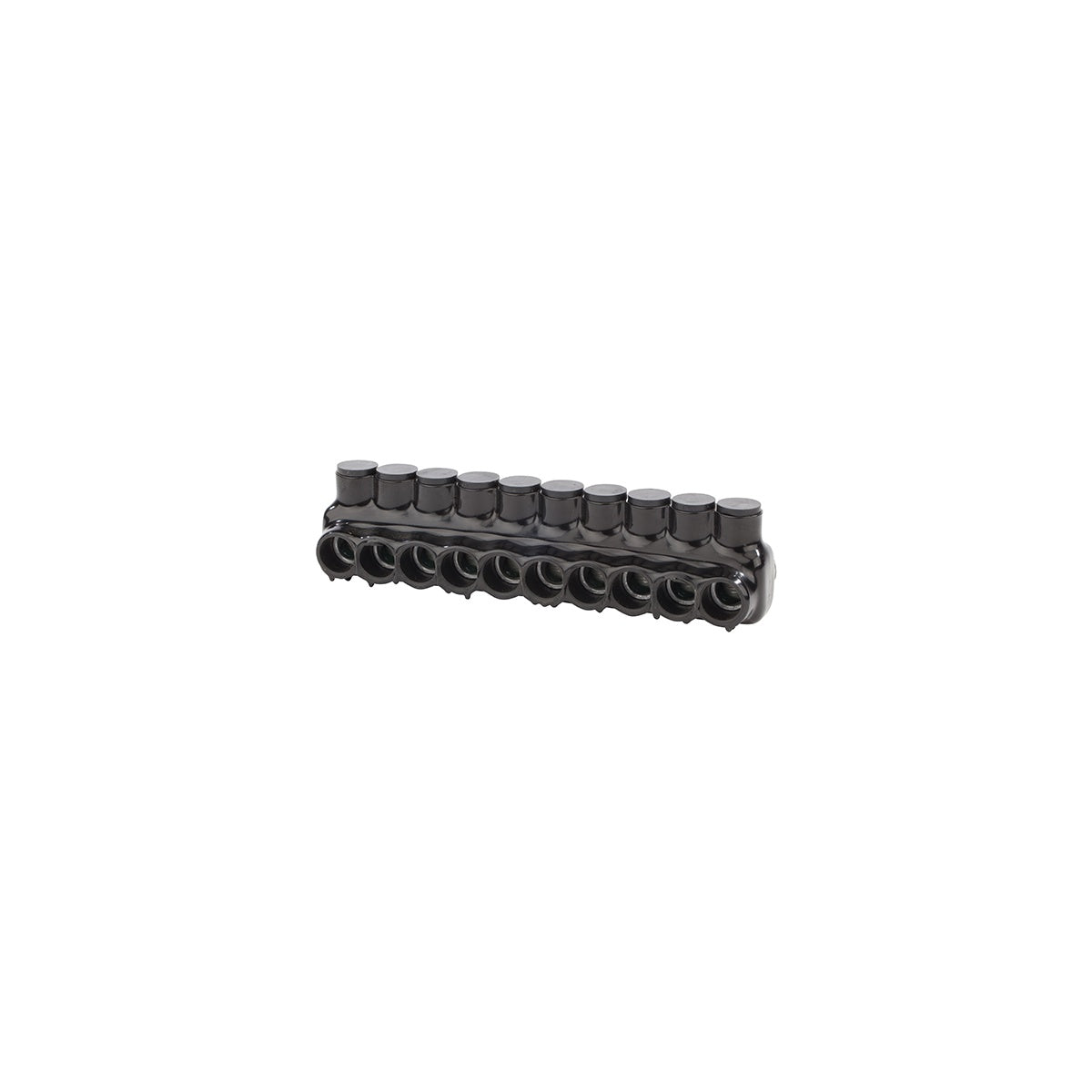

Polaris™ Ins Multi-Tap 350 10 Port DSE Connector – Wire Termination Solutions

The Polaris™ Insulated Multi-Tap 350 10 Port Dual Sided Entry connector is designed for wire termination in electrical distribution systems. This product is suitable for use by electrical distributors and switchgear suppliers requiring reliable multi-conductor connections. It supports wire sizes from 350 MCM to 6 AWG and is dual rated for Class B and C copper or aluminum conductors, making it compatible with a wide range of wire and cable applications.

Specifications

• Application: Wire Termination
• Number of Conductors: 10
• Number of Poles: 1
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 10.87 in x 2.41 in x 2.61 in
• Product Weight: 1.86 lbs
• Wire Type: Class B & C (Copper and Aluminum)
• Environmental Conditions: Rated for 90 °C
• Manufacturer: NSI Industries
• Manufacturer Part Number: IPLD350-10

Features

• Dual-sided wire entry ports allow access from either side
• Pre-filled with oxide inhibitor for corrosion resistance
• Removable caps for tightening 5/16 internal hex pressure screws
• High dielectric strength plastisol insulation resistant to abrasion, chemicals, and UV exposure
• UL Listed per UL486A/B for 600V applications
• Cold temperature rated to -45 °C
• Will not support combustion
• Eliminates need for cover and taping
