Polaris™ Ins Multi-Tap 3/0 8 Port DSE
SKU: #304604
Part: #IPLD3/0-8
UPC: 662381927064
Polaris™ Ins Multi-Tap 3/0 8 Port DSE
SKU: #304604
Part: #IPLD3/0-8
UPC: 662381927064
Total Price: $112.15 per each Sold in increments of 1 each
Description

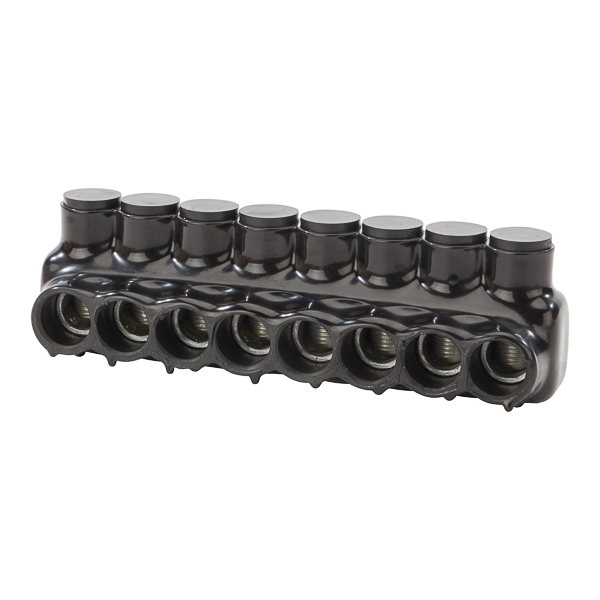

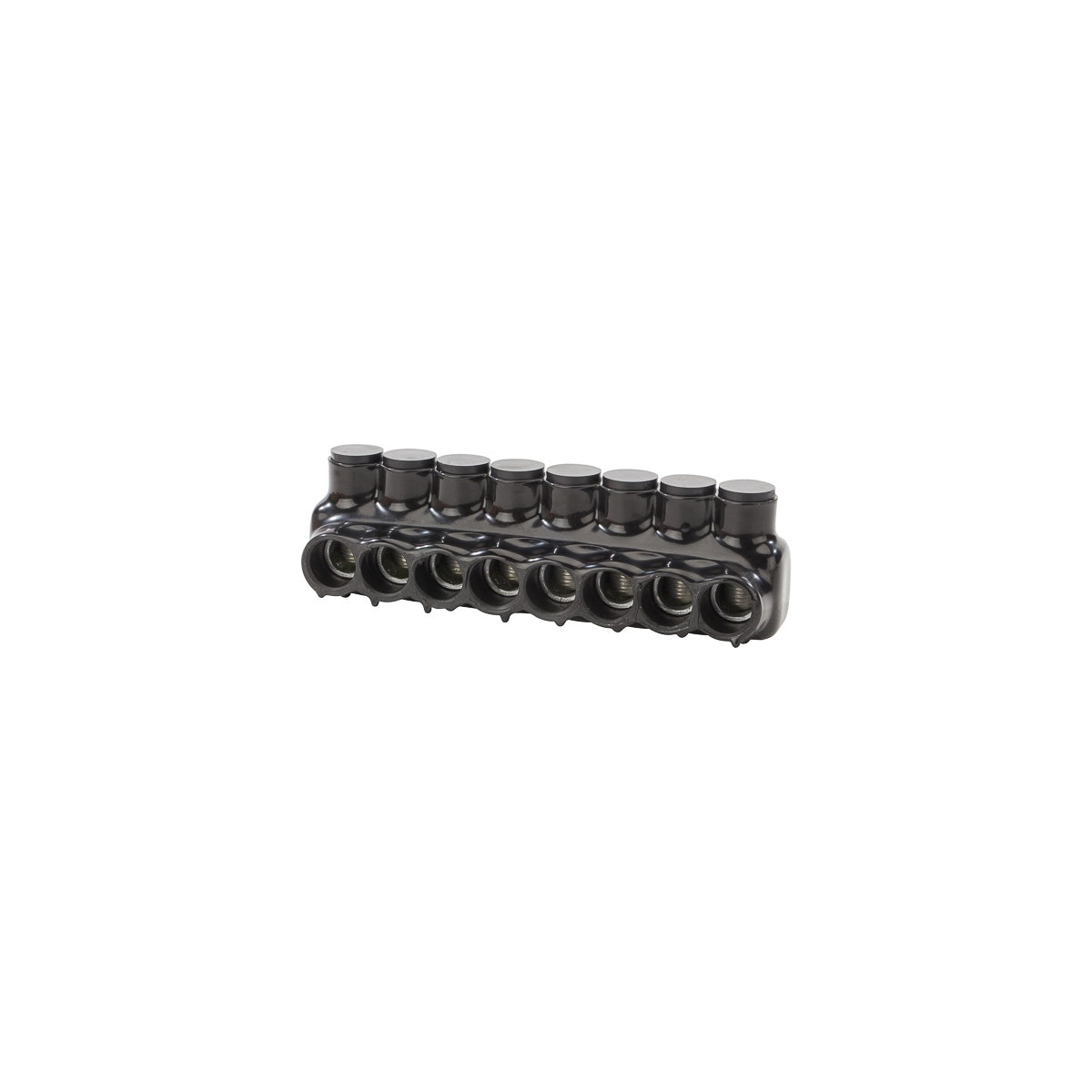

Polaris™ Ins Multi-Tap 3/0 8 Port DSE Electrical Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing reliable connections for Class B & C wire types. Manufactured by NSI Industries, this 8-port dual-sided entry connector supports wire ranges from 3/0 to 6 AWG and is suitable for use in electrical distribution and lighting solutions where secure and insulated wire splicing is required. Its plastisol insulation offers abrasion, chemical, and UV resistance, making it appropriate for harsh environments up to 90°C.
Specifications
- Application: Wire Termination
- Number of Conductors: 8
- Number of Poles: 1
- Material: Aluminum (6061-T6 alloy)
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 6.53 in x 1.83 in x 1.79 in
- Wire Type: Class B & C
- Environmental Conditions: Rated for 90°C, cold temperature rated to -45°C
- UL Listing: UL486A/B for 600V
- Manufacturer Part #: IPLD3/0-8
- Product Weight: 0.81 lbs
Features
- Dual-sided entry with removable caps for ease of installation and maintenance
- Pre-filled with oxide inhibitor to ensure long-lasting, corrosion-resistant connections
- 1/4 internal hex pressure screw for secure wire clamping
- High dielectric strength insulation providing abrasion, chemical, and UV resistance
- UL Listed and cULus recognized for safety and reliability
- Cold temperature rated for use down to -45°C
