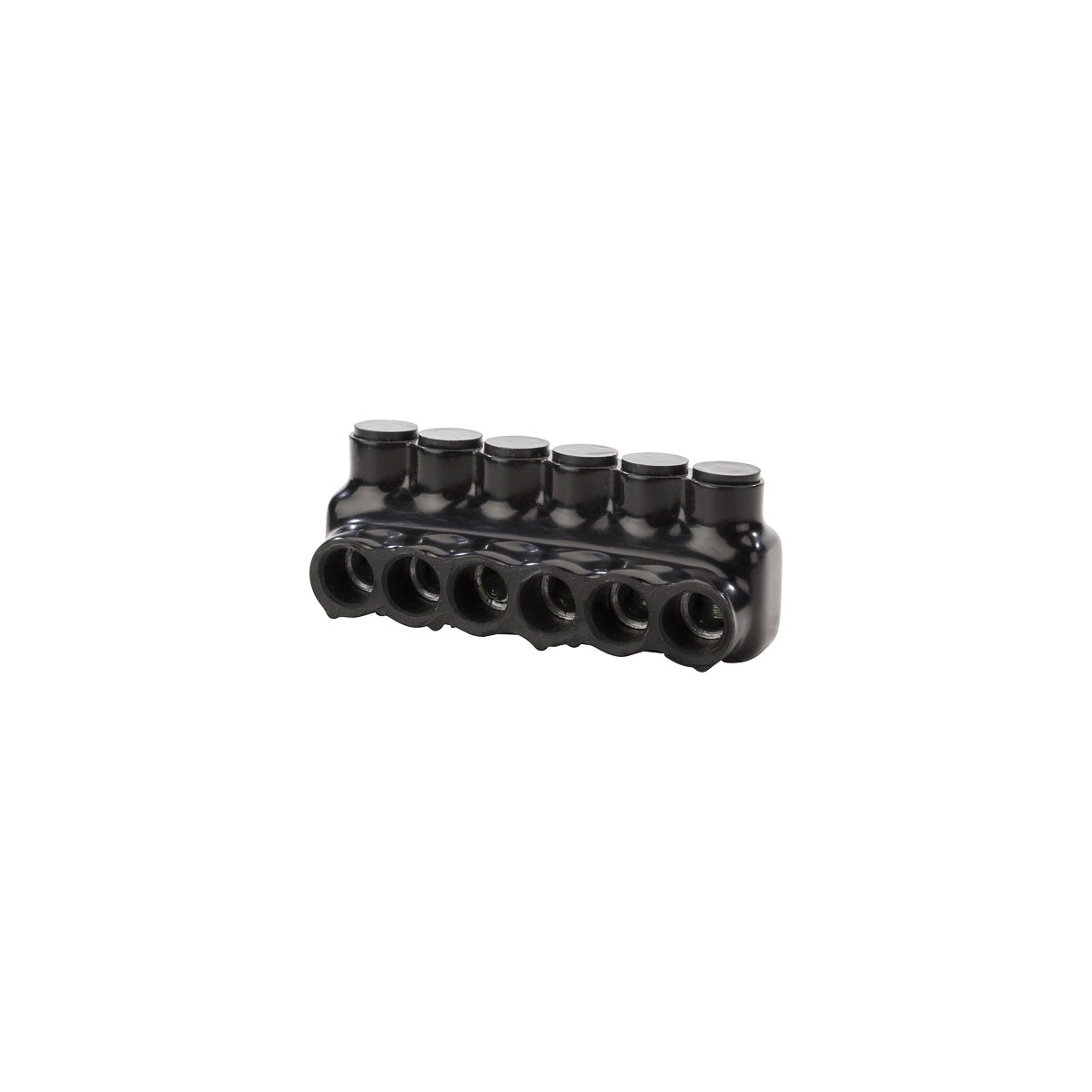

Polaris™ Ins Multi-Tap 3/0 6 Port SSE Electrical Connector

The Polaris™ Insulated Multi-Tap Connector (3/0-6 AWG, 6 Port, Single Sided Entry) is designed for wire termination applications in electrical distribution and lighting solutions. This connector is suitable for use by electrical distributors and switchgear suppliers requiring reliable, insulated connections for Class B & C wire types. It supports copper and aluminum conductors and is rated for 600V and 90°C operation, ensuring compatibility with a range of wire and cable installations.

Specifications

• Application: Wire Termination
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Length: 4.97 in
• Width: 1.6 in
• Height: 1.8 in
• Environmental Conditions: 90 °C
• Product Weight: 0.56 lbs
• Manufacturer: NSI Industries
• Manufacturer Part #: IPL3/0-6
• UL Listing: UL Listed 486B Wire Connector (Dry location)
• Voltage Rating: 600V
• Temperature Rating: 90 °C, cold temperature rated to -45 °C
• Wire Range: 3/0 KCMIL to 6 AWG

Features

• Single side wire entry ports simplify installation
• High dielectric strength plastisol insulation for abrasion, chemical, and UV resistance
• Pre-filled with oxide inhibitor for enhanced conductivity and corrosion protection
• Molded for precise fit with removable access plugs over hex screws
• Will not support combustion
• Dual rated for copper and aluminum conductors
• Cold temperature rated to -45 °C
