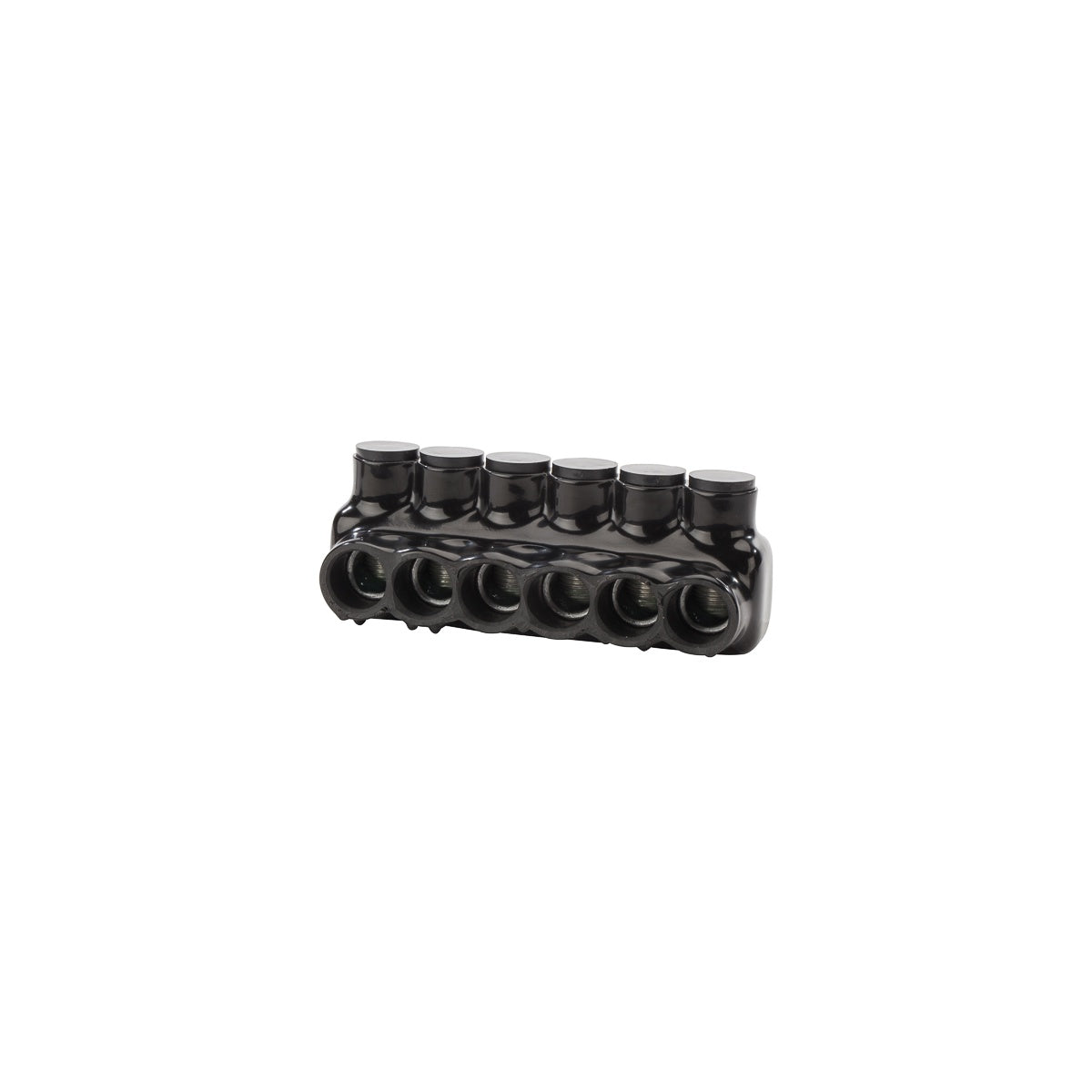

Polaris™ Ins Multi-Tap 3/0 6 Port DSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications in electrical distribution and lighting solutions. Manufactured by NSI Industries, this connector supports Class B & C wire types and is suitable for use with 3/0 to 6 AWG conductors. It provides a reliable, insulated connection point with dual-sided entry for enhanced wiring flexibility, making it ideal for wire and cable management in switchgear and electrical distribution systems.

Specifications

• Application: Wire Termination
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: Rated for 90°C
• Dimensions (L x W x H): 4.97 in x 1.83 in x 1.79 in
• Product Weight: 0.62 lbs
• Manufacturer Part Number: IPLD3/0-6
• UPC: 662381927040

Features

• Dual-sided entry with removable caps for easy wire insertion and secure tightening
• Manufactured from 6061-T6 aluminum alloy for durability and conductivity
• Pre-filled with oxide inhibitor to prevent corrosion
• UL Listed per UL486A/B for 600V applications
• Dual rated for 90°C copper and aluminum conductors
• Cold temperature rated to -45°C for versatile environmental use
• High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
