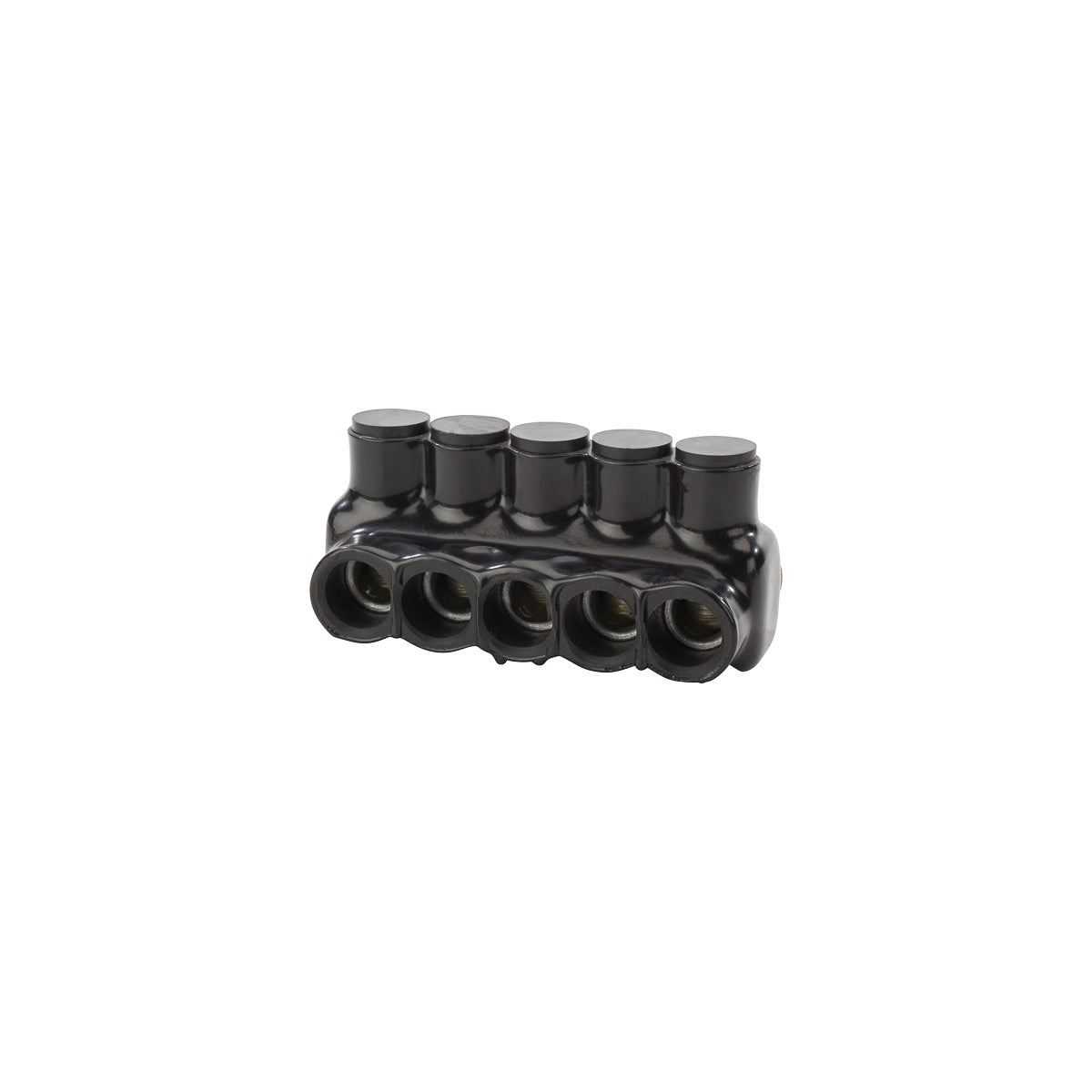

Polaris™ Ins Multi-Tap 3/0 5 Port DSE - Insulated Multi-Tap Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. This 5-port, dual-sided entry connector supports wire ranges from 3/0 to 6 AWG and is ideal for use in lighting solutions and electrical distribution systems.

Specifications

• Application: Wire Termination
• Number of Conductors: 5
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions: 4.19 in (Length) x 1.83 in (Width) x 1.79 in (Height)
• Product Weight: 0.52 lbs
• Environmental Conditions: Rated for 90°C
• Manufacturer: NSI Industries
• Manufacturer Part #: IPLD3/0-5
• UL Listed per UL486A/B for 600V
• Cold Temperature Rated to -45°C

Features

• Dual-sided entry with removable caps for ease of installation and maintenance
• Pre-filled with oxide inhibitor to ensure long-term conductivity and corrosion resistance
• Constructed from 6061-T6 aluminum alloy for durability and electrical performance
• High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
• 1/4 internal hex pressure screw for secure wire termination
• Compatible with copper and aluminum conductors
