Polaris™ Ins Multi-Tap 3/0 4 Port SSE
SKU: #304330
Part: #IPL3/0-4
UPC: 662381912022
Polaris™ Ins Multi-Tap 3/0 4 Port SSE
SKU: #304330
Part: #IPL3/0-4
UPC: 662381912022
Total Price: $50.87 per each Sold in increments of 1 each
Description

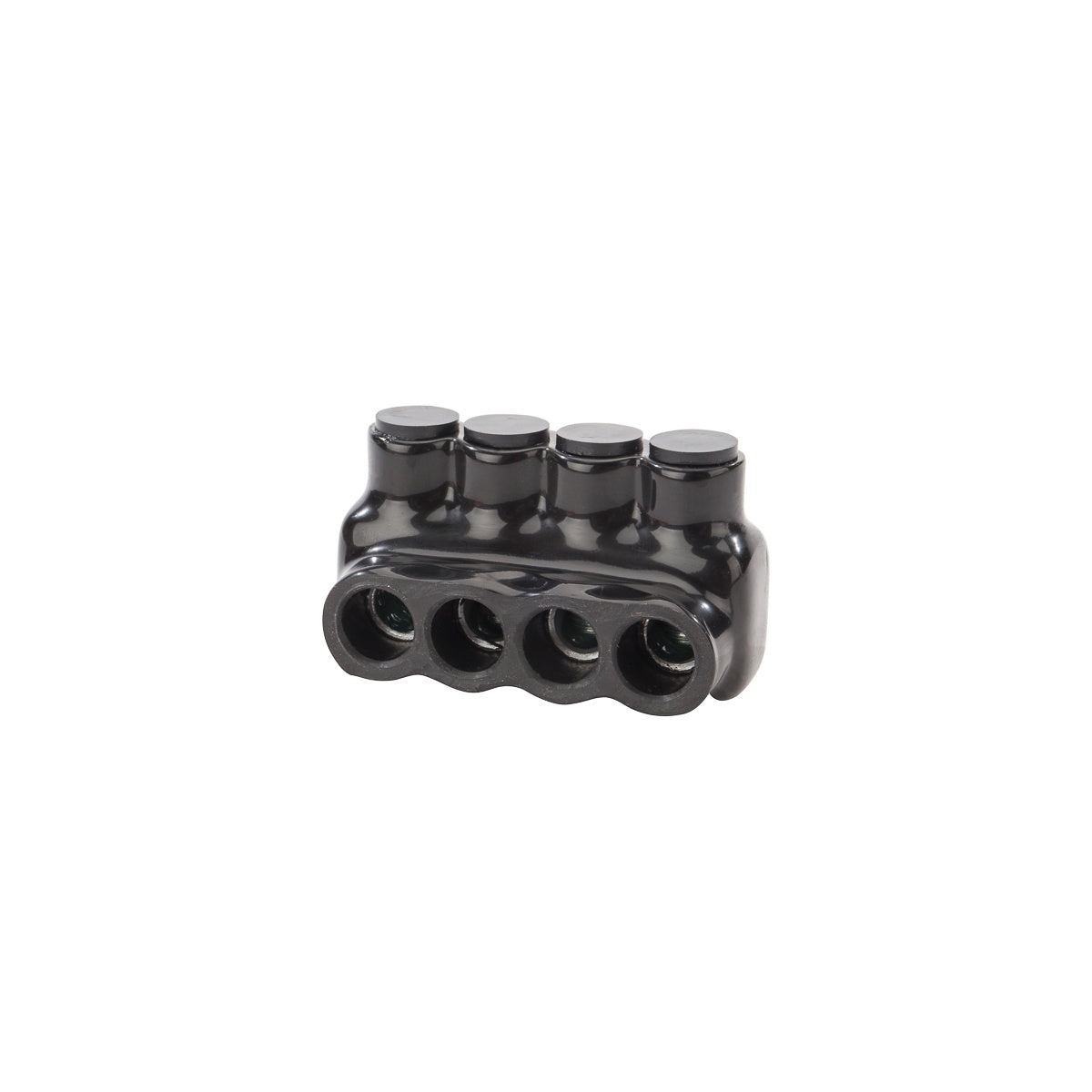

Polaris™ Ins Multi-Tap 3/0 4 Port SSE - Insulated Multi-Tap Connector
The Polaris™ Insulated Multi-Tap Connector by NSI Industries is designed for wire termination applications, providing reliable electrical connections for Class B & C wire types. This connector is suitable for electrical distributors and switchgear suppliers seeking durable, insulated connectors for wire and cable management in lighting solutions and other electrical systems.
Specifications
- Manufacturer Part #: IPL3/0-4
- Material: Aluminum (6061-T6 alloy)
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 4
- Number of Poles: 1
- Dimensions (L x W x H): 3.41 in x 1.6 in x 1.8 in
- Product Weight: 0.3700 lbs
- Wire Range: 3/0 KCMIL to #6 AWG
- Wire Type: Class B & C
- Environmental Rating: 90°C
- UL Listed per UL486A/B for 600V
- Cold Temperature Rated to -45°C
Features
- Pre-filled with oxide inhibitor for enhanced corrosion resistance
- Removable access plug for easy wire entry
- 5/16 internal hex pressure screw for secure connections
- High dielectric strength insulation that is abrasion, chemical, and UV resistant
- Dual rated for copper and aluminum conductors
