Polaris™ Ins Multi-Tap 3/0 3 Port SSE
SKU: #304325
Part: #IPL3/0-3
UPC: 662381912015
Polaris™ Ins Multi-Tap 3/0 3 Port SSE
SKU: #304325
Part: #IPL3/0-3
UPC: 662381912015
Total Price: $43.22 per each Sold in increments of 1 each
Description

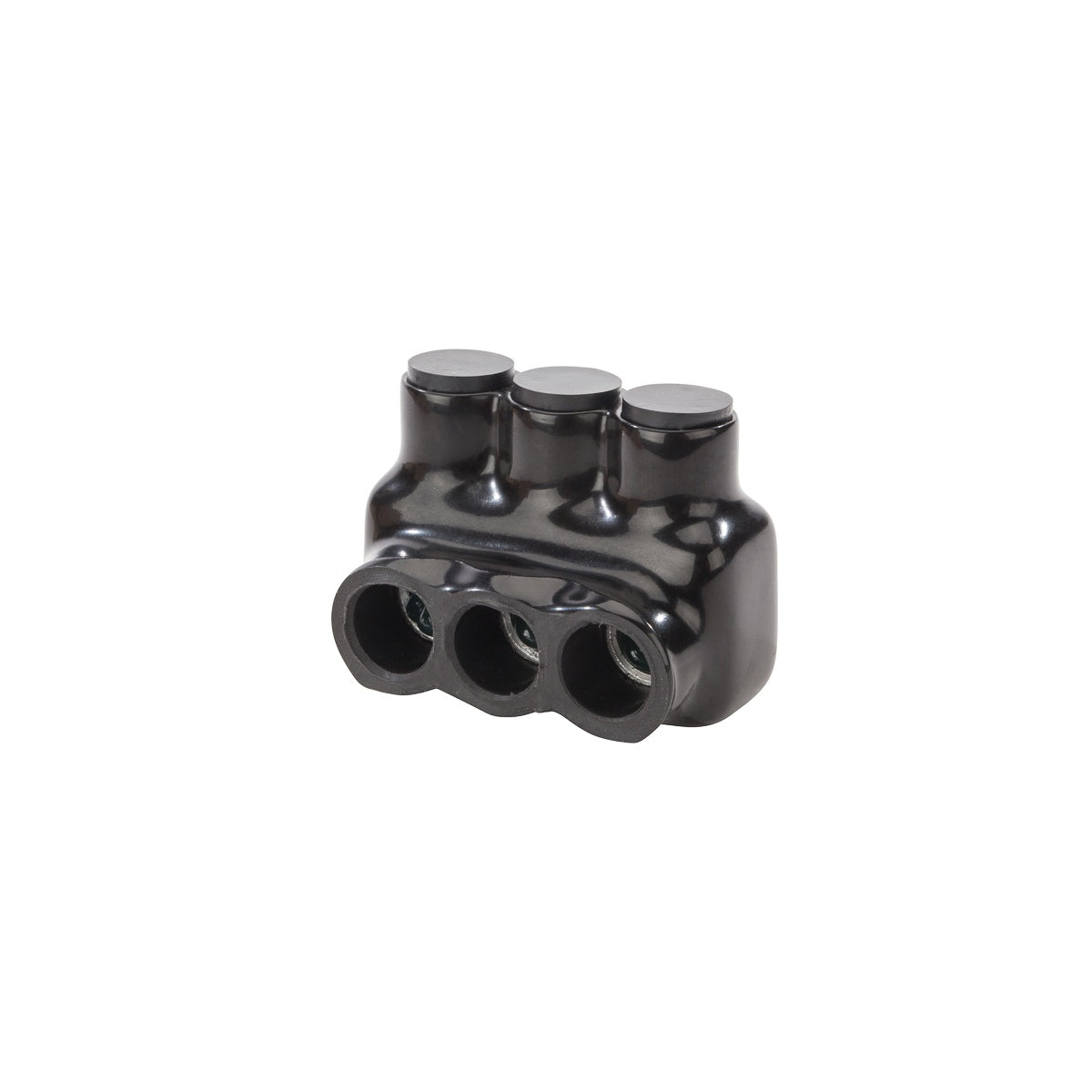

Polaris™ Ins Multi-Tap 3/0 3 Port SSE Wire Termination Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing reliable electrical connections for wire sizes ranging from 3/0 KCMIL to 6 AWG. Manufactured by NSI Industries, this connector is suitable for electrical distributors and switchgear suppliers requiring durable, insulated connectors for wire and cable installations.
Specifications
- Application: Wire Termination
- Material: Aluminum (6061-T6 alloy)
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 2.63 in x 1.6 in x 1.8 in
- Number of Conductors: 3
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: Rated for 90°C
- Product Weight: 0.2800 lbs
- UL Listed per UL486A/B for 600V
- Cold Temperature Rated to -45°C
Features
- Pre-filled with oxide inhibitor to ensure optimal conductivity
- Removable access plug for ease of installation
- 5/16 internal hex pressure screw for secure wire connection
- High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
- Dual rated for copper and aluminum conductors
