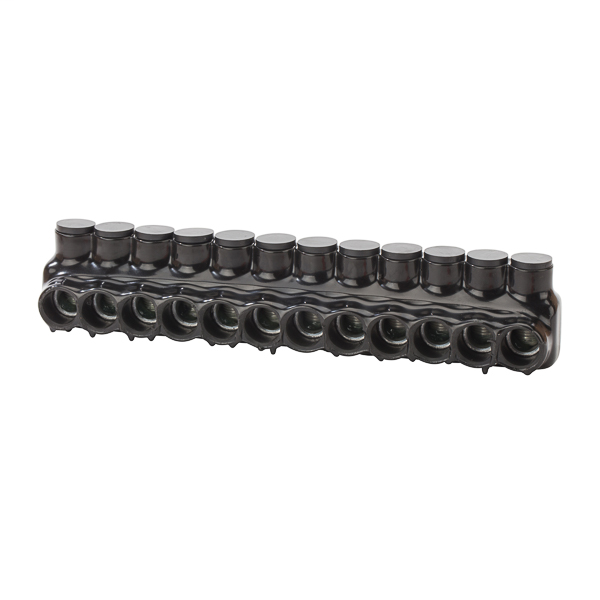

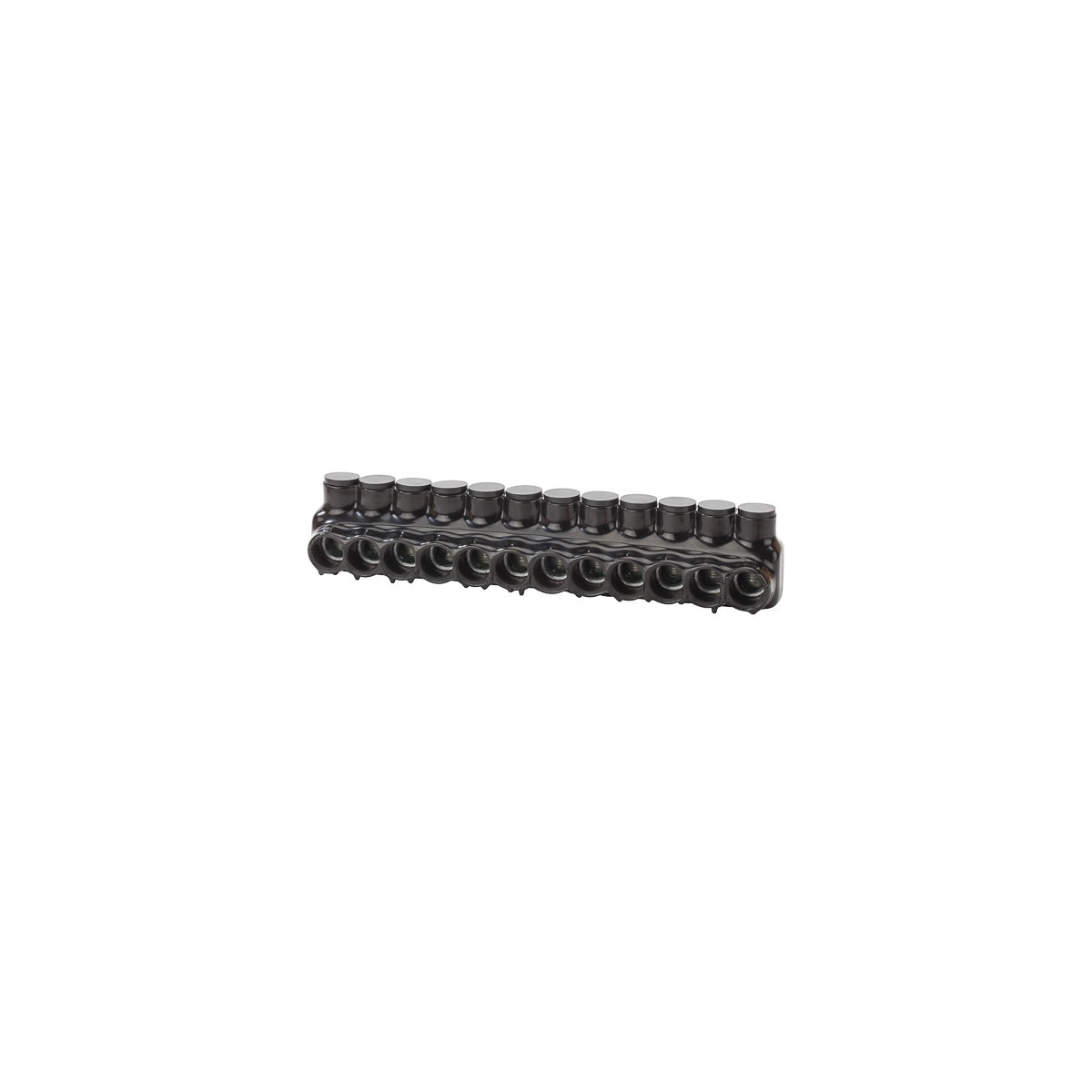

Polaris™ Ins Multi-Tap 3/0 12 Port DSE - Insulated Multi-Tap Connector

The Polaris™ Insulated Multi-Tap 3/0 12 Port Dual Sided Entry (DSE) connector is designed for wire termination applications, providing a reliable and versatile solution for electrical distributors and lighting solutions providers. Manufactured by NSI Industries, this connector supports Class B & C wire types, accommodating wire ranges from 3/0 to 6 AWG. It is suitable for use with copper and aluminum conductors and is rated for 600V and 90°C operation. Its dual-sided entry design allows for flexible wiring configurations, making it ideal for wire and cable management in various electrical installations.

Specifications

• Application: Wire Termination
• Number of Conductors: 12
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 11.21 in x 1.83 in x 1.79 in
• Product Weight: 1.2 lbs
• Environmental Conditions: Rated to 90°C, Cold temperature rated to -45°C
• Voltage Rating: 600V
• Manufacturer Part #: IPLD3/0-12

Features

• UL 486B Listed for Copper or Aluminum Class B, C conductors
• Pre-insulated with high dielectric strength plastisol for abrasion, chemical, and UV resistance
• Dual sided wire entry ports with removable plugs for unused ports
• Eliminates the need for cover and taping, saving installation time and costs
• Multiple wiring configurations available including dual side entry and mountable options
• Tough impervious plastisol allows use in harsh vibration-prone environments
• Customizable UL listed direct burial and submersible connector options available
