Polaris™ Ins Multi-Tap 3/0 10 Port DSE
SKU: #304581
Part: #IPLD3/0-10
UPC: 662381927088
Polaris™ Ins Multi-Tap 3/0 10 Port DSE
SKU: #304581
Part: #IPLD3/0-10
UPC: 662381927088
Total Price: $182.30 per each Sold in increments of 1 each
Description

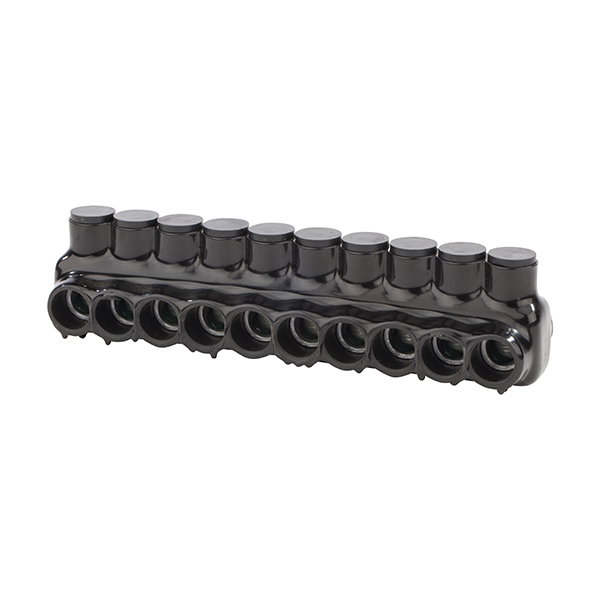

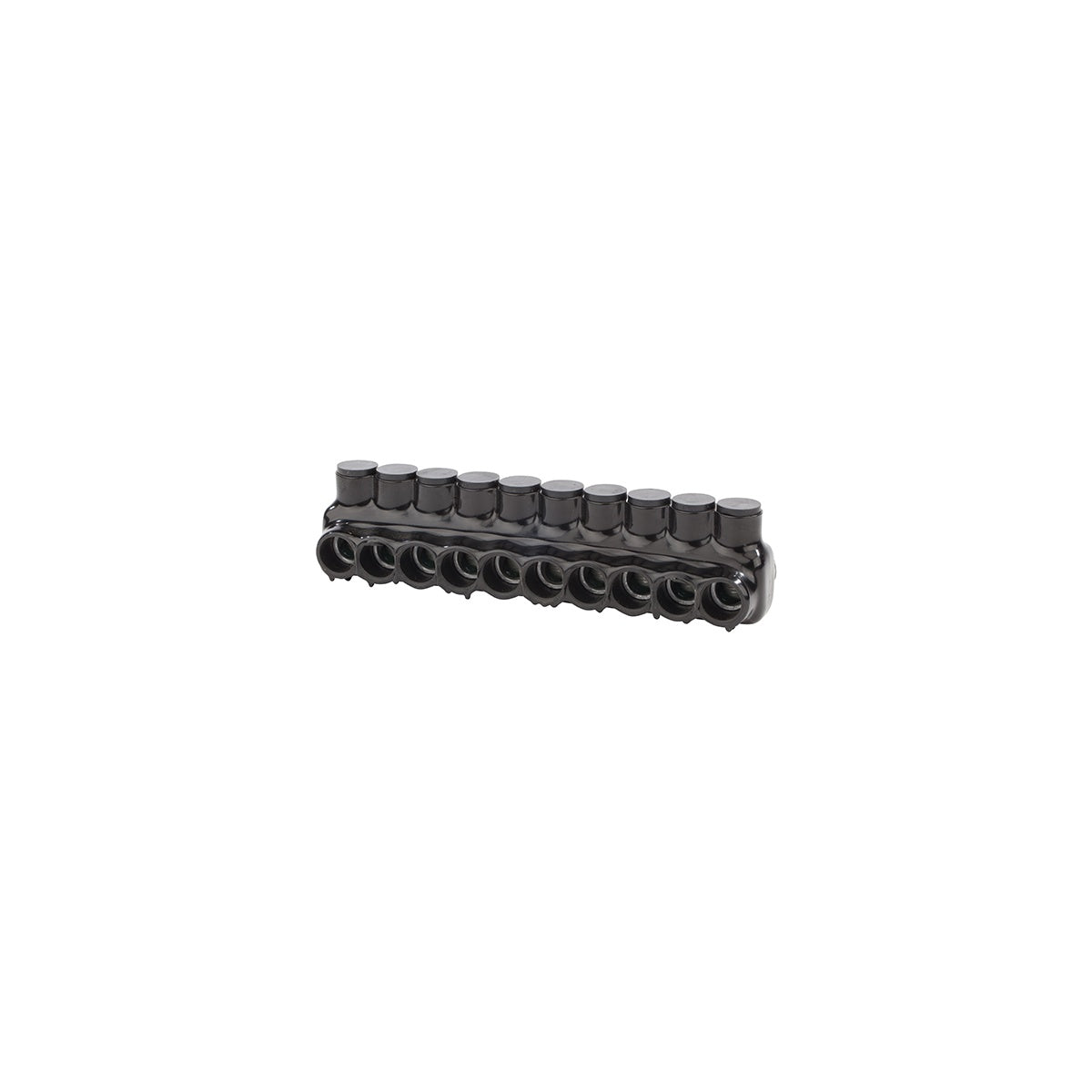

Polaris™ Ins Multi-Tap 3/0 10 Port DSE – Wire Termination Connector
The Polaris™ Insulated Multi-Tap 3/0 10 Port Dual Sided Entry (DSE) connector is designed for reliable wire termination in electrical distribution systems. Manufactured by NSI Industries, this connector supports Class B & C wire types and is suitable for use in applications requiring insulated, multi-port connections. It is ideal for electrical distributors and switchgear suppliers seeking durable and efficient wire and cable connection solutions.
Specifications
- Application: Wire Termination
- Number of Conductors: 10
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 8.09 in x 1.83 in x 1.79 in
- Environmental Conditions: Rated for 90°C
- Product Weight: 1.0000 lb
- Manufacturer Part #: IPLD3/0-10
- UPC: 662381927088
Features
- Dual sided entry with removable caps for easy wire insertion and secure termination
- Constructed from 6061-T6 aluminum alloy for strength and conductivity
- Pre-filled with oxide inhibitor to protect connections
- 1/4 internal hex pressure screw ensures reliable contact pressure
- UL Listed per UL486A/B specifications for 600V applications
- Dual rated for copper and aluminum conductors at 90°C
- High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
- Cold temperature rated to -45°C for versatile environmental use
