Polaris‚Ñ¢ Ins Multi-Tap 250 8 Port SSE Multi-Conductor Connector

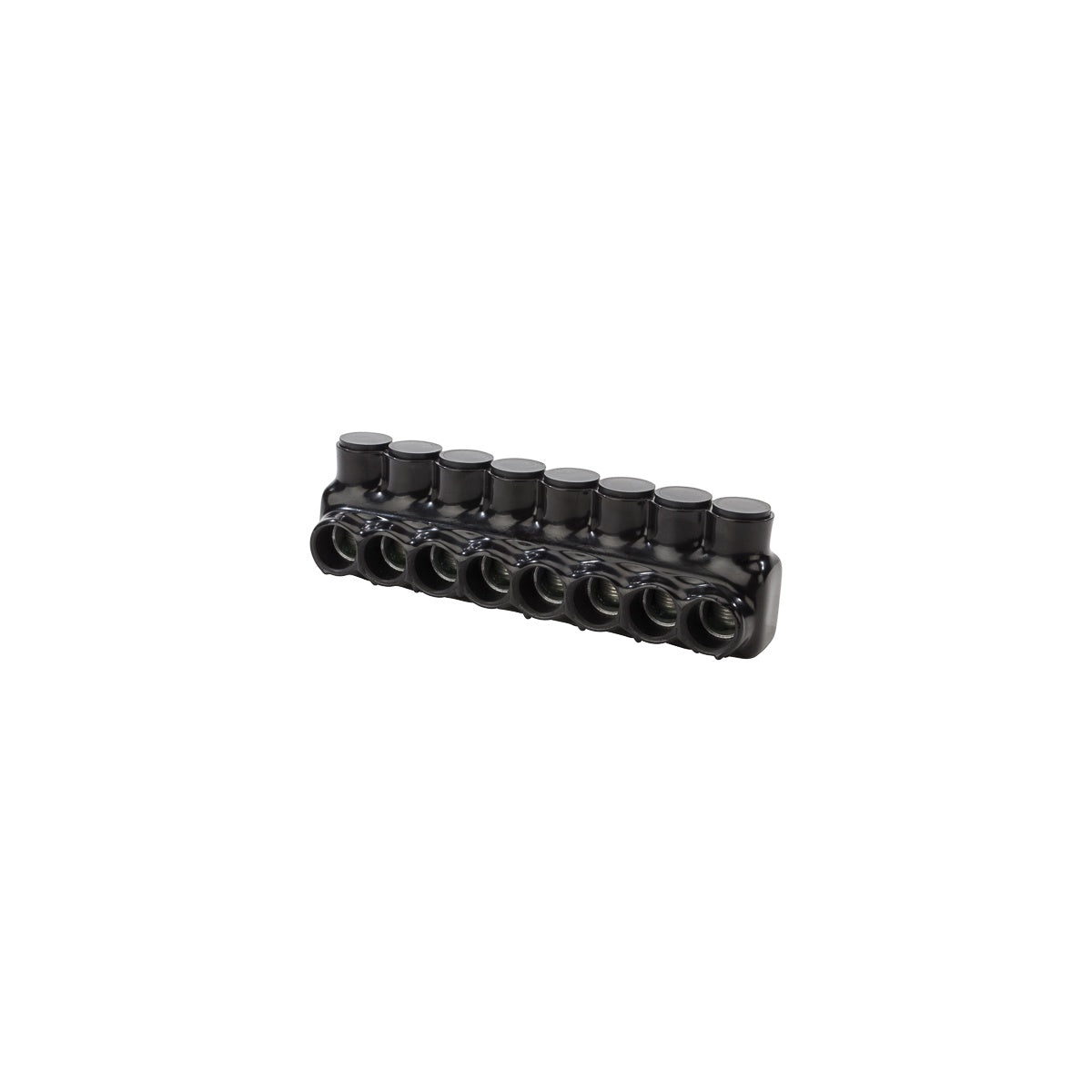

The Polaris™ Insulated Multi-Tap Connector by NSI Industries is designed for wire termination applications in electrical distribution and lighting solutions. This pre-insulated, multi-port connector facilitates safe and efficient connections of wire and cable, supporting Class B & C wire types with a single-sided entry for up to eight conductors. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable, code-compliant connectors rated for 90°C environments.

Specifications

• Application: Wire Termination
• Number of Conductors: 8
• Number of Poles: 1
• Wire Range: 250 MCM - 6 AWG
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Length: 7.24 in
• Width: 2.03 in
• Height: 2.18 in
• Product Weight: 0.93 lbs
• Environmental Conditions: Rated for 90¬∞C
• Manufacturer: NSI Industries
• Manufacturer Part #: IPL250-8

Features

• One side wire entry ports streamline installation
• Eliminates need for cover and taping, enhancing safety and efficiency
• Insulated with high-dielectric strength plastisol for electrical protection
• Molded for precise fit with removable access plugs over hex screws for maintenance
• Abrasion, chemical, and UV resistant for durability in demanding environments
• UL Listed 486B wire connector for dry locations, rated 600V, 90¬∞C
• Dual rated for copper and aluminum cables, suitable for parallel conductor applications
