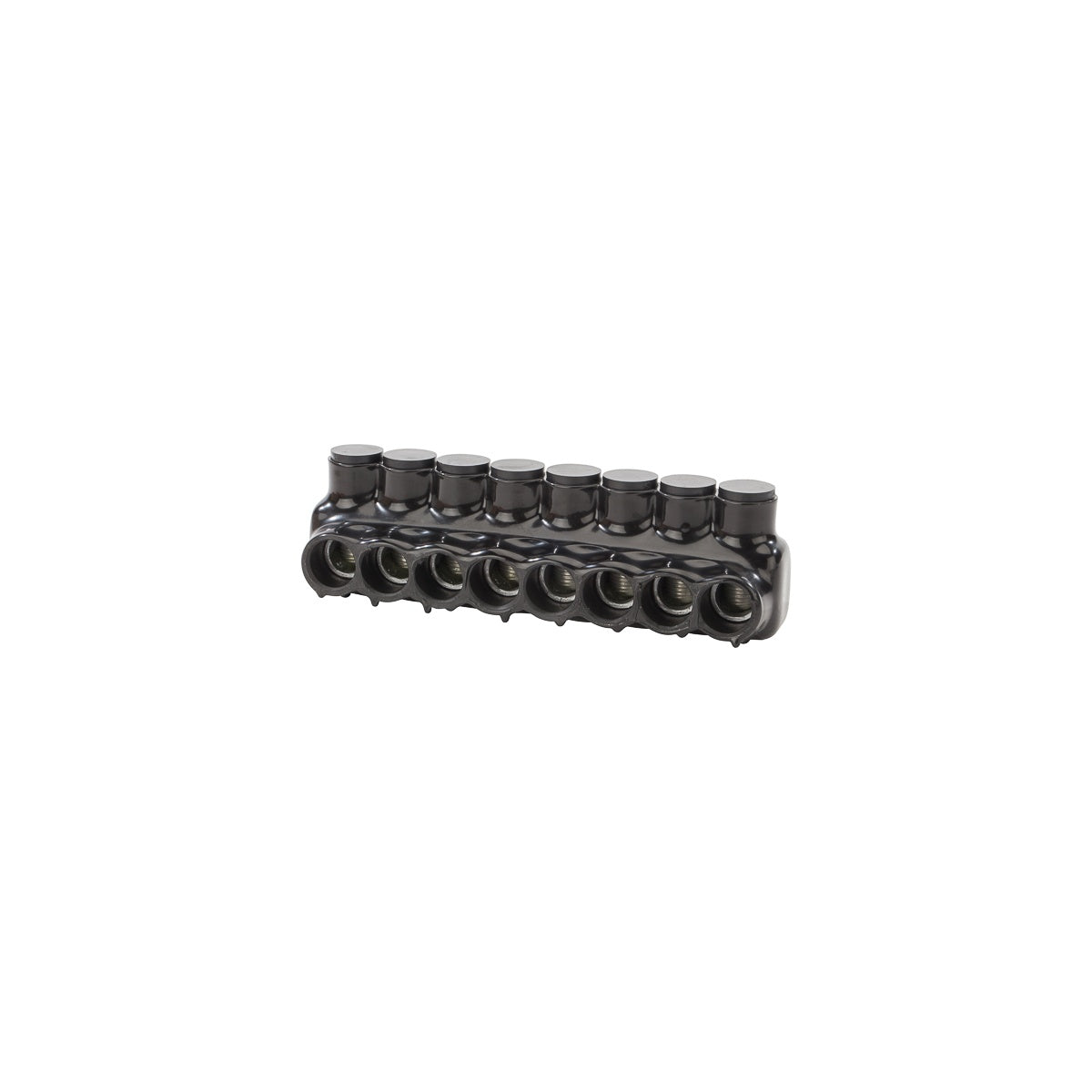

Polaris™ Ins Multi-Tap 250 8 Port DSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap Connector by NSI Industries is designed for wire termination applications, providing reliable electrical connections for wire and cable systems. This insulated multi-cable connector block supports dual side entry wiring configurations and is suitable for use by electrical distributors and switchgear suppliers requiring durable, pre-insulated connectors for Class B and C copper or aluminum conductors.

Specifications

• Application: Wire Termination
• Number of Conductors: 8
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 7.24 in x 2.28 in x 2.18 in
• Product Weight: 0.93 lbs
• Environmental Conditions: Rated for 90°C operation
• Voltage Rating: 600V
• Manufacturer Part Number: IPLD250-8

Features

• UL 486B Listed for copper or aluminum Class B and C conductors
• Pre-insulated with high dielectric strength black plastisol
• Dual side entry ports with removable plugs for flexible wiring access
• Abrasion and chemical resistant, UV resistant plastisol finish
• Cold temperature rated to -45°C for harsh environments
• Eliminates need for taping or additional insulation
• Tough impervious plastisol suitable for vibration-prone conditions
• Customizable configurations available for direct burial and submersible applications
• Dual rated for use with copper and aluminum cables providing cost savings and flexibility
• Not recommended for fine-stranded, flexible wire
