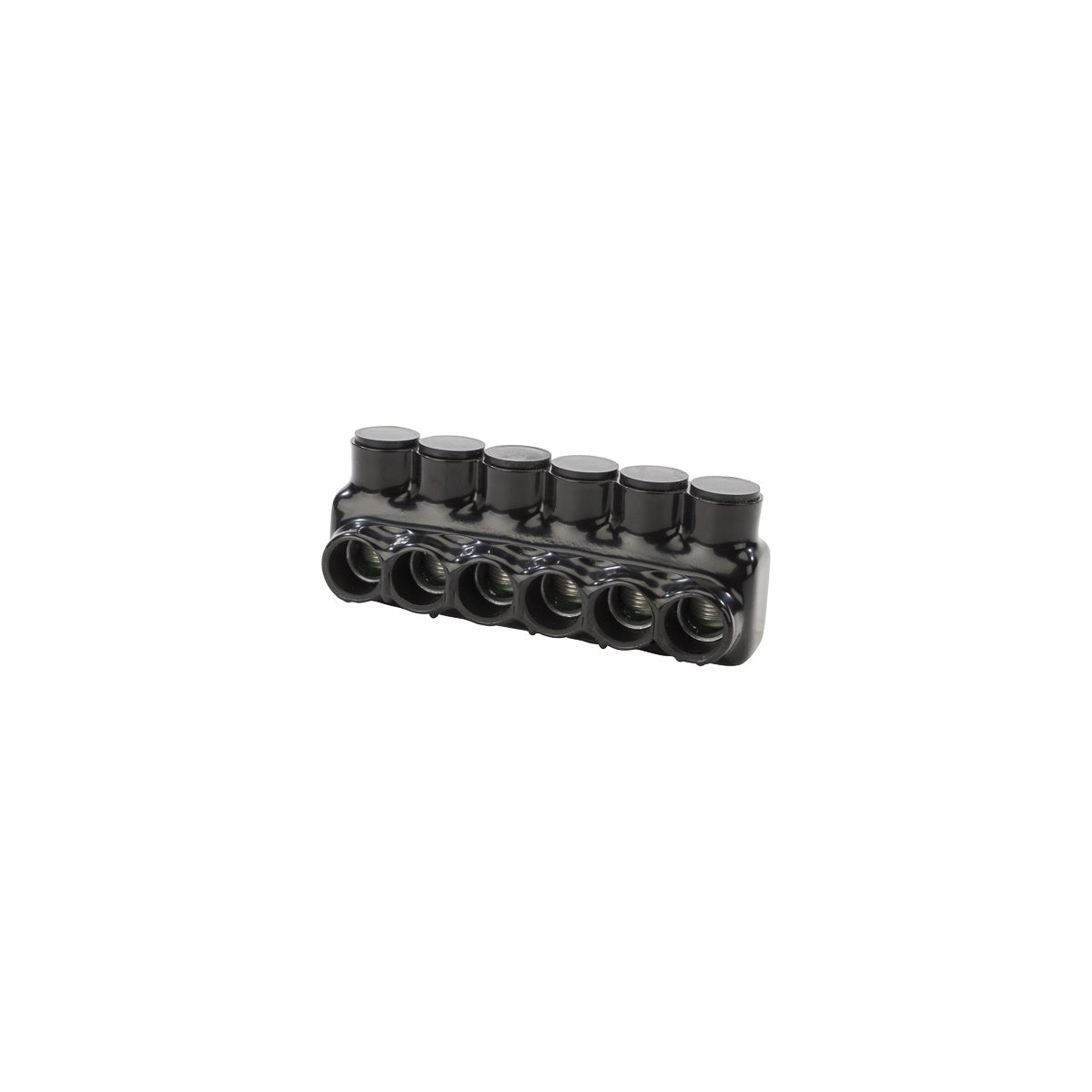

Polaris™ Ins Multi-Tap 250 6 Port SSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers handling wire and cable installations. This connector supports wire sizes from 250 MCM to 6 AWG and features a single-sided entry with six ports, facilitating efficient multi-conductor connections in lighting solutions and other electrical systems.

Specifications

• Application: Wire Termination
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C (Dual rated for copper and aluminum cables, not for fine-stranded flexible wire)
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions: 5.22 in (Length) x 2.03 in (Width) x 2.18 in (Height)
• Product Weight: 0.7 lbs
• Environmental Conditions: Rated for 90°C
• Manufacturer: NSI Industries
• Manufacturer Part Number: IPL250-6
• Certification: UL Listed 486B Wire Connector (Dry location), rated 600V, cold temperature rated to -45°C

Features

• Wire entry ports on one side only, simplifying installation
• Eliminates the need for cover and taping
• Insulated with high-dielectric strength plastisol for enhanced safety
• Molded for precise fit with removable access plugs over hex screws
• Abrasion and chemical resistant construction
• UV resistant for outdoor durability
• Will not support combustion, enhancing fire safety
