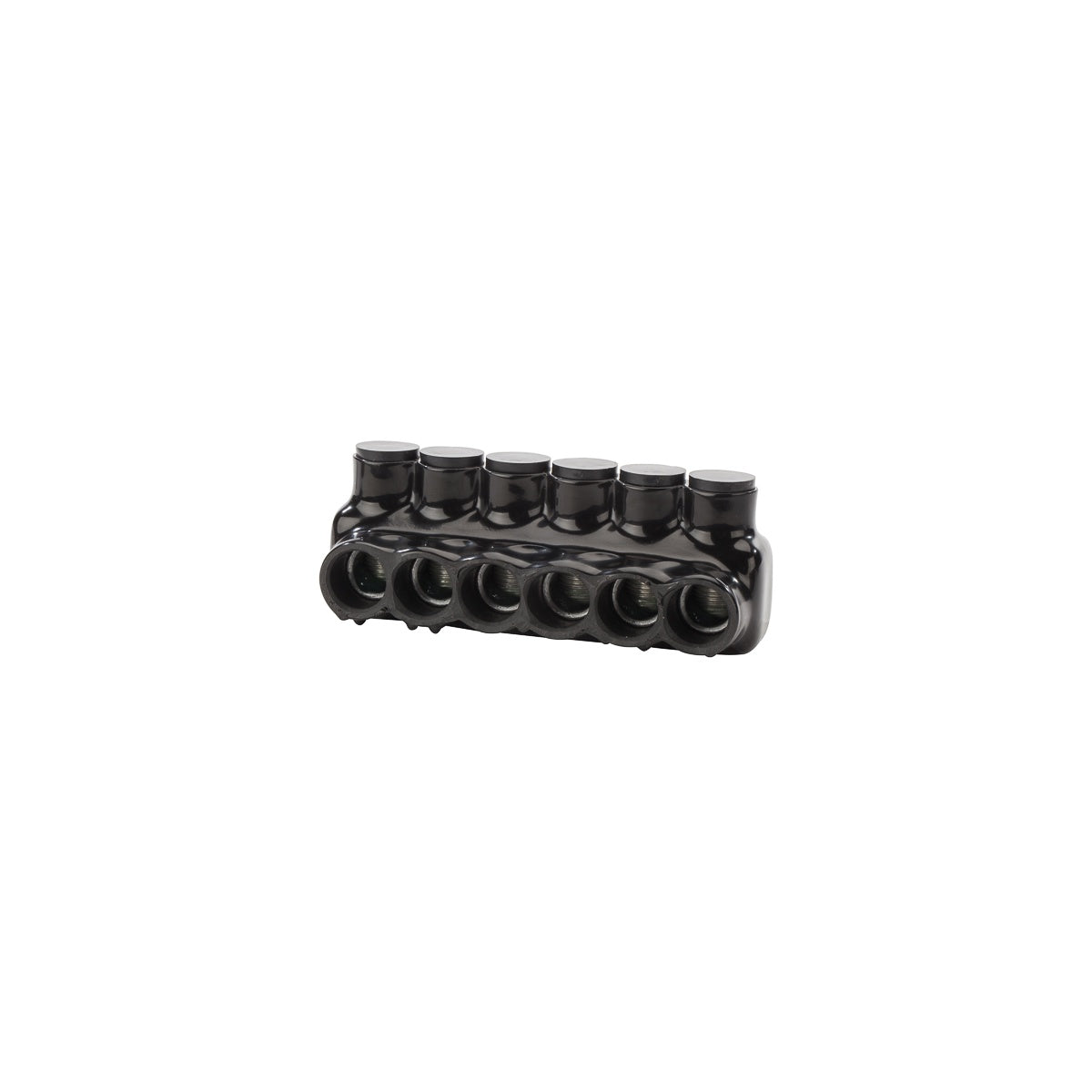

Polaris™ Ins Multi-Tap 250 6 Port DSE Multi-Conductor Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers requiring secure connections for wire and cable. This model features dual-sided entry ports, allowing wire access from both sides, which enhances installation flexibility and efficiency in lighting solutions and electrical distribution systems.

Specifications

• Application: Wire Termination
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 5.52 in x 2.28 in x 2.18 in
• Product Weight: 0.7 lbs
• Environmental Conditions: 90 °C
• Manufacturer: NSI Industries
• Manufacturer Part #: IPLD250-6
• UL Listed 486B Wire Connector (Dry location)
• Temperature Rating: 90 °C, cold temperature rated to -45 °C
• Voltage Rating: 600V

Features

• Dual-sided wire entry ports for access from either side
• Pre-insulated with high-dielectric strength plastisol to eliminate the need for additional cover and taping
• Molded for precise fit with removable access plugs over hex screws
• Supplied with removable plugs to close unused entry ports
• Abrasion, chemical, and UV resistant
• Will not support combustion
