Polaris™ Ins Multi-Tap 250 5 Port DSE
SKU: #304562
Part: #IPLD250-5
UPC: 662381923035
Polaris™ Ins Multi-Tap 250 5 Port DSE
SKU: #304562
Part: #IPLD250-5
UPC: 662381923035
Total Price: $71.77 per each Sold in increments of 1 each
Description

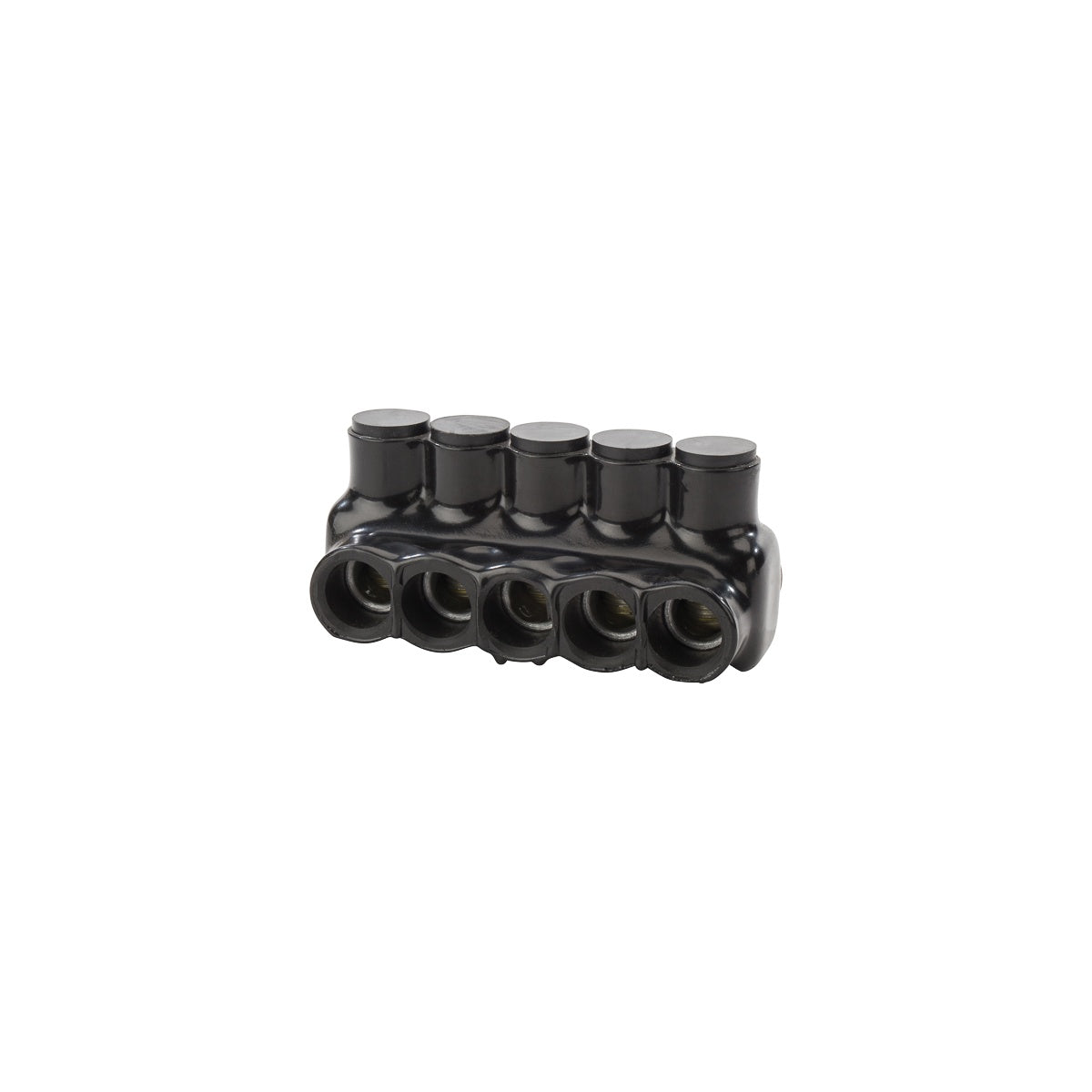

Polaris™ Ins Multi-Tap 250 5 Port DSE - Insulated Multi-Conductor Connector
The Polaris™ Insulated Multi-Tap 250 5 Port Dual Sided Entry (DSE) connector is designed for wire termination applications, providing reliable electrical connections for wire and cable systems. Manufactured by NSI Industries, this connector is suitable for use in electrical distribution and lighting solutions where secure multi-conductor connections are required. It supports wire sizes from 250 MCM to 6 AWG and is dual rated for copper and aluminum conductors, making it a versatile component for switchgear suppliers and electrical distributors.
Specifications
- Manufacturer Part #: IPLD250-5
- Material: Aluminum (6061-T6 alloy)
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 5
- Number of Poles: 1
- Wire Type: Class B & C (Dual rated for copper and aluminum conductors)
- Application: Wire Termination
- Dimensions: Length 4.66 in, Width 2.28 in, Height 2.18 in
- Environmental Conditions: Rated for 90 °C, cold temperature rated to -45 °C
- UL Listed: UL486A/B for 600V
- Weight: 0.5800 lbs
Features
- Dual entry wire ports allow access from either side, facilitating flexible installation.
- Pre-filled with oxide inhibitor to ensure long-term reliable connections.
- Supplied with removable access plugs for unused ports and hex screws for secure tightening.
- High dielectric strength plastisol insulation provides abrasion, chemical, and UV resistance.
- Will not support combustion, enhancing safety in electrical installations.
- Eliminates the need for cover and taping, simplifying installation.
