Polaris™ Ins Multi-Tap 250 4 Port SSE
SKU: #304284
Part: #IPL250-4
UPC: 662381913029
Polaris™ Ins Multi-Tap 250 4 Port SSE
SKU: #304284
Part: #IPL250-4
UPC: 662381913029
Total Price: $52.51 per each Sold in increments of 1 each
Description

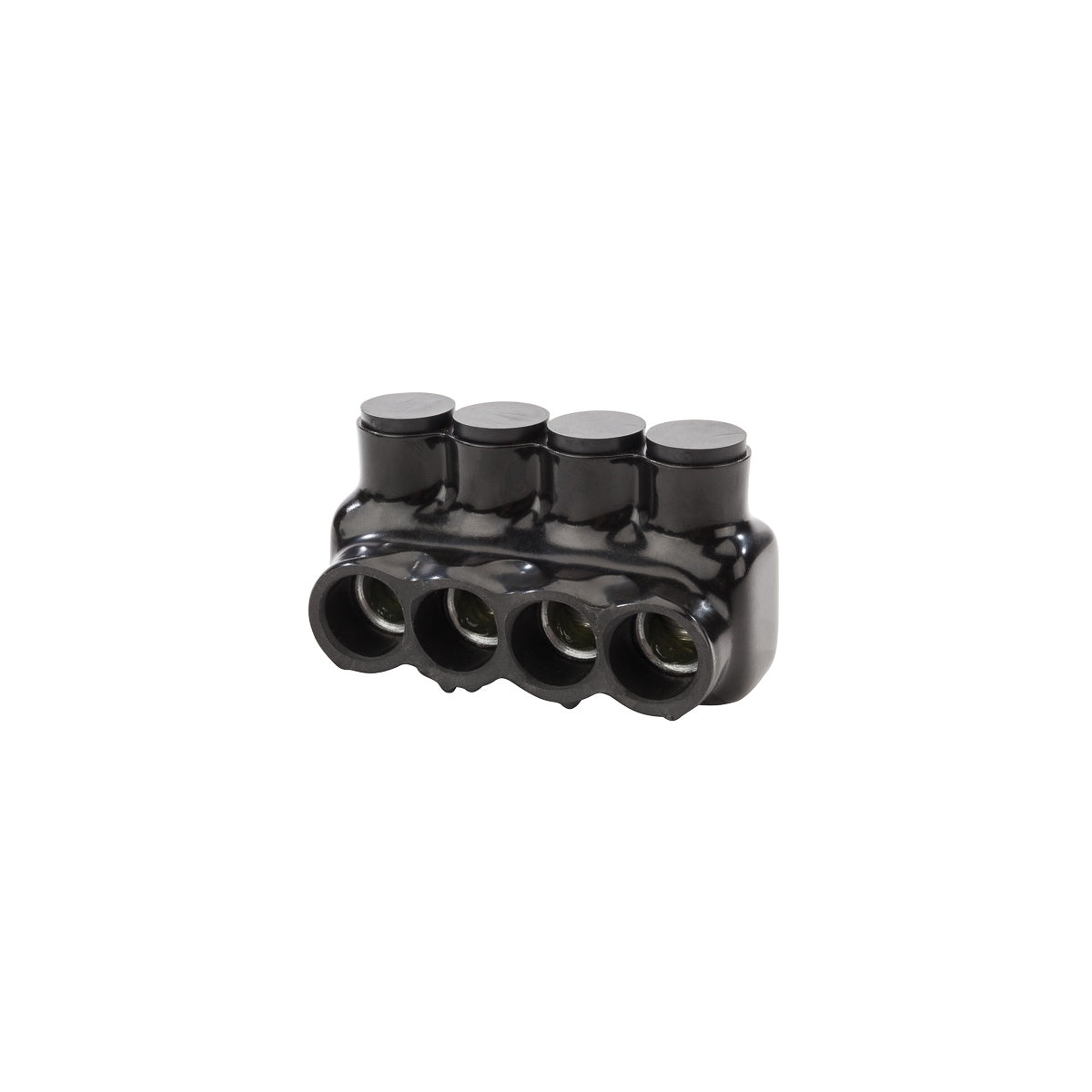

Polaris™ Ins Multi-Tap 250 4 Port SSE Multi-Conductor Connector
The Polaris™ Insulated Multi-Tap Connector by NSI Industries is designed for wire termination applications in electrical distribution and lighting solutions. This pre-insulated connector features four wire ports with single-sided entry, suitable for use with Class B & C wire types ranging from 250 MCM to 6 AWG. It is intended for use by electrical distributors and switchgear suppliers requiring reliable, UL Listed connectors for copper and aluminum cables in dry locations.
Specifications
- Application: Wire Termination
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 3.8 in x 2.03 in x 2.18 in
- Product Weight: 0.47 lbs
- Environmental Conditions: Rated for 90 °C
- Manufacturer: NSI Industries
- Manufacturer Part #: IPL250-4
- UL Listing: UL 486B Wire Connector (Dry location)
- Voltage Rating: 600V
- Temperature Rating: Cold temperature rated to -45 °C, rated 90 °C
- Maximum Amperage: 527A (Copper), 410A (Aluminum)
- Torque Value: 360 in./lbs.
- Hex/Wrench Size: 5/16 in.
Features
- Wire entry ports on one side only for streamlined installation
- Eliminates the need for cover and taping
- Insulated with high-dielectric strength plastisol for enhanced safety
- Molded for precise fit with removable access plugs over hex screws
- Abrasion, chemical, and UV resistant
- Will not support combustion
- Dual rated for use with copper and aluminum cables (not for fine-stranded, flexible wire)
- Provides code-compliant and UL Listed maximum ampacity for parallel conductors
