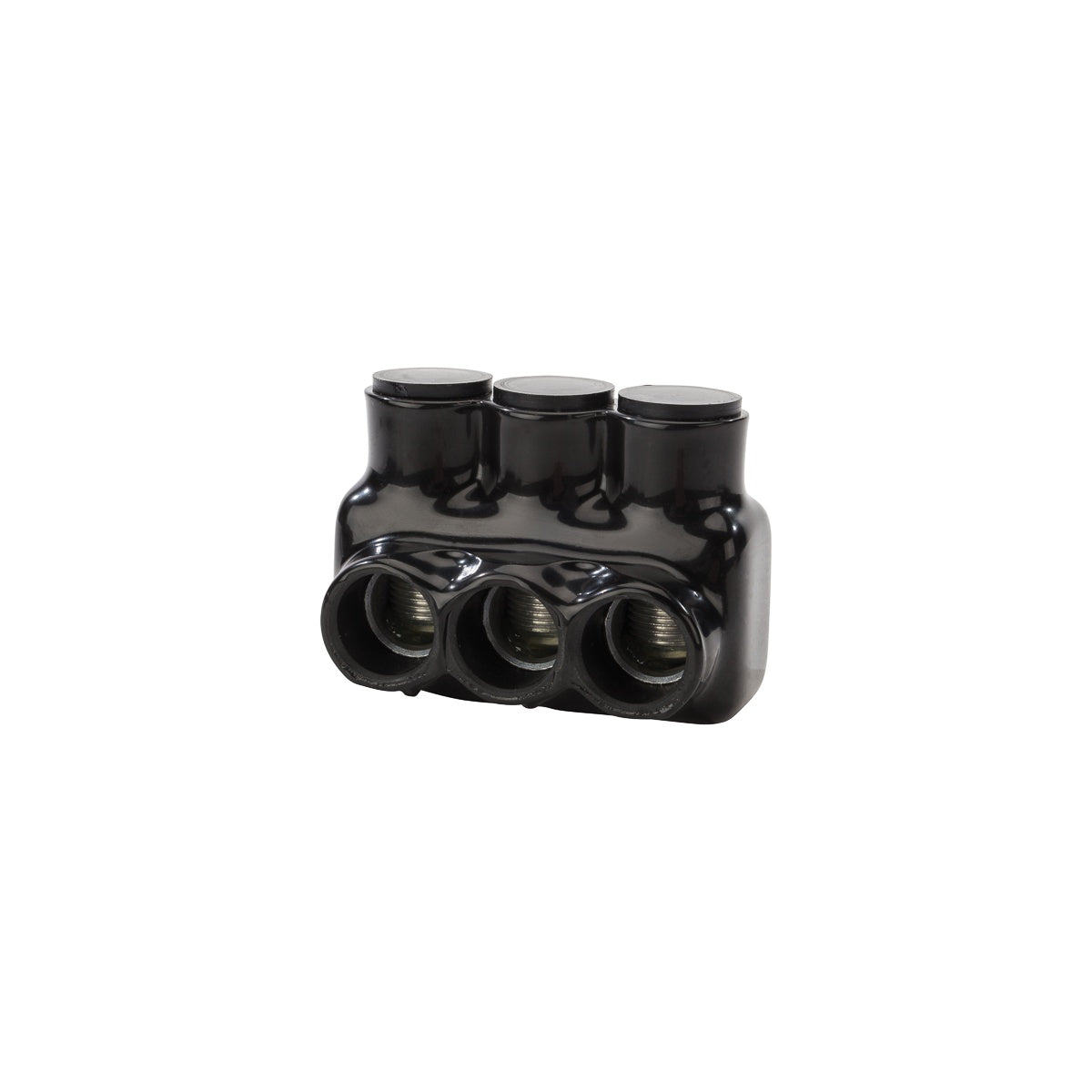

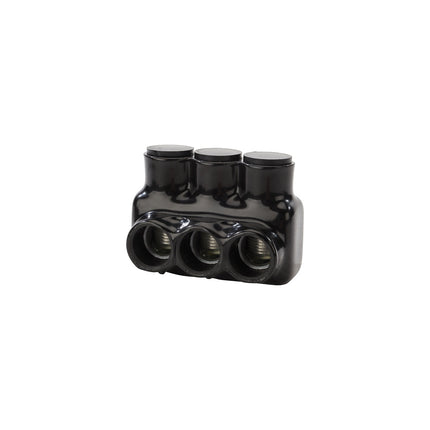

Polaris™ Ins Multi-Tap 250 3 Port SSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable connection solution for electrical distributors and switchgear suppliers. This pre-insulated connector supports wire sizes from 250 MCM to 6 AWG and features a single-sided entry with three conductor ports, making it suitable for various wire and cable configurations in lighting solutions and electrical distribution systems.

Specifications

• Application: Wire Termination
• Number of Conductors: 3
• Number of Poles: 1
• Wire Type: Class B & C (Dual rated for copper and aluminum cables, not for fine-stranded flexible wire)
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 2.93 in x 2.03 in x 2.18 in
• Product Weight: 0.3500 lbs
• Environmental Conditions: Rated for 90 °C
• UL Listing: UL 486B Wire Connector (Dry location), rated 600V
• Manufacturer: NSI Industries
• Manufacturer Part #: IPL250-3

Features

• Wire entry ports on one side only to simplify installation
• Eliminates the need for cover and taping
• Insulated with high-dielectric strength plastisol for electrical safety
• Molded for precise fit with removable access plugs over hex screws
• Abrasion, chemical, and UV resistant for durability in various environments
• Will not support combustion, enhancing fire safety
