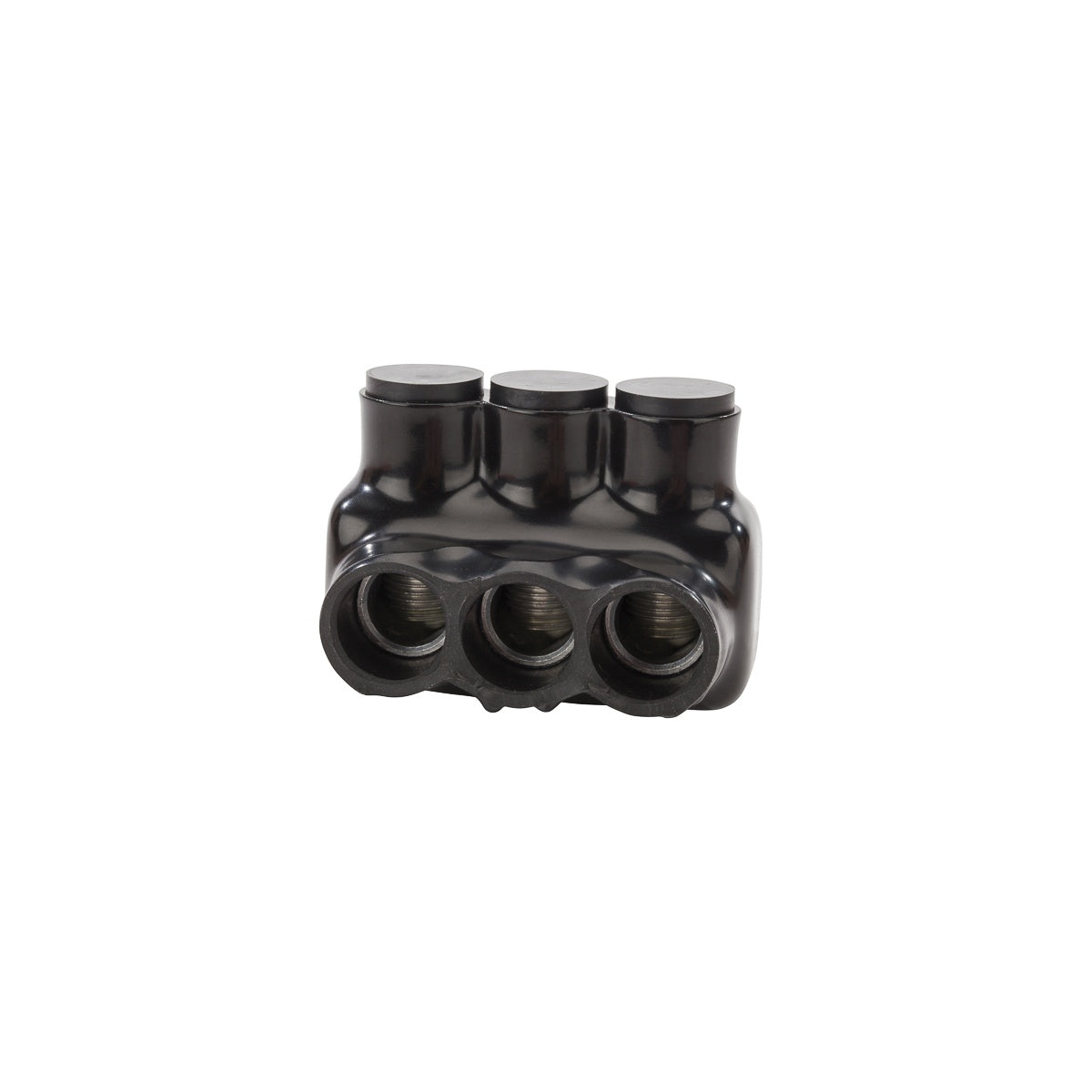

Polaris™ Ins Multi-Tap 250 3 Port DSE Wire Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors, lighting solutions, and wire and cable installations. This connector supports Class B & C conductors and is dual rated for copper and aluminum cables, making it suitable for a variety of industrial and commercial wiring configurations. Its dual-sided entry design allows wire access from both sides, enhancing installation flexibility and efficiency.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPLD250-3
• Application: Wire Termination
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 3
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: Rated for 90°C
• Dimensions (L x W x H): 2.93 in x 2.28 in x 2.18 in
• Product Weight: 0.3500 lbs

Features

• UL 486B Listed for Copper or Aluminum Class B, C conductors
• High dielectric strength plastisol insulation
• Dual side wire entry ports with removable plugs for unused ports
• Abrasion and chemical resistant
• UV resistant black plastisol finish
• Cold temperature rated to -45°C
• Eliminates need for taping or additional insulation
• Suitable for harsh vibration-prone environments
• Versatile wiring configurations: single side entry, dual side entry, mountable, stacked
• Dual rated for flexibility and cost savings in conductor use
