Polaris™ Ins Multi-Tap 250 12 Port DSE
SKU: #304539
Part: #IPLD250-12
UPC: 662381923103
Polaris™ Ins Multi-Tap 250 12 Port DSE
SKU: #304539
Part: #IPLD250-12
UPC: 662381923103
Total Price: $263.49 per each Sold in increments of 1 each
Description

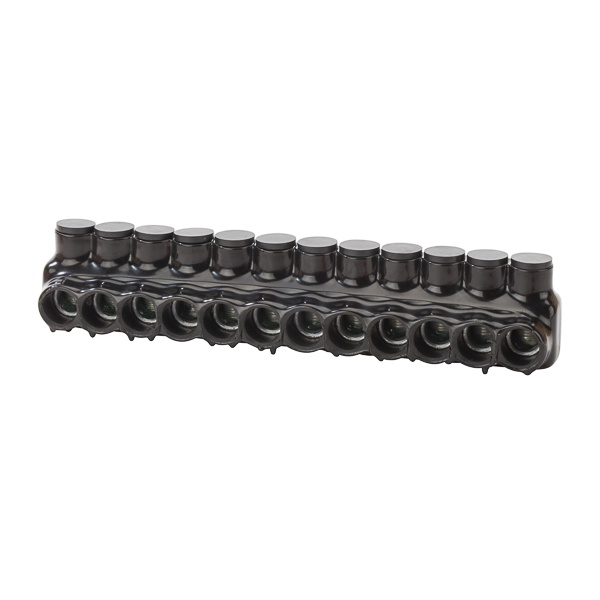

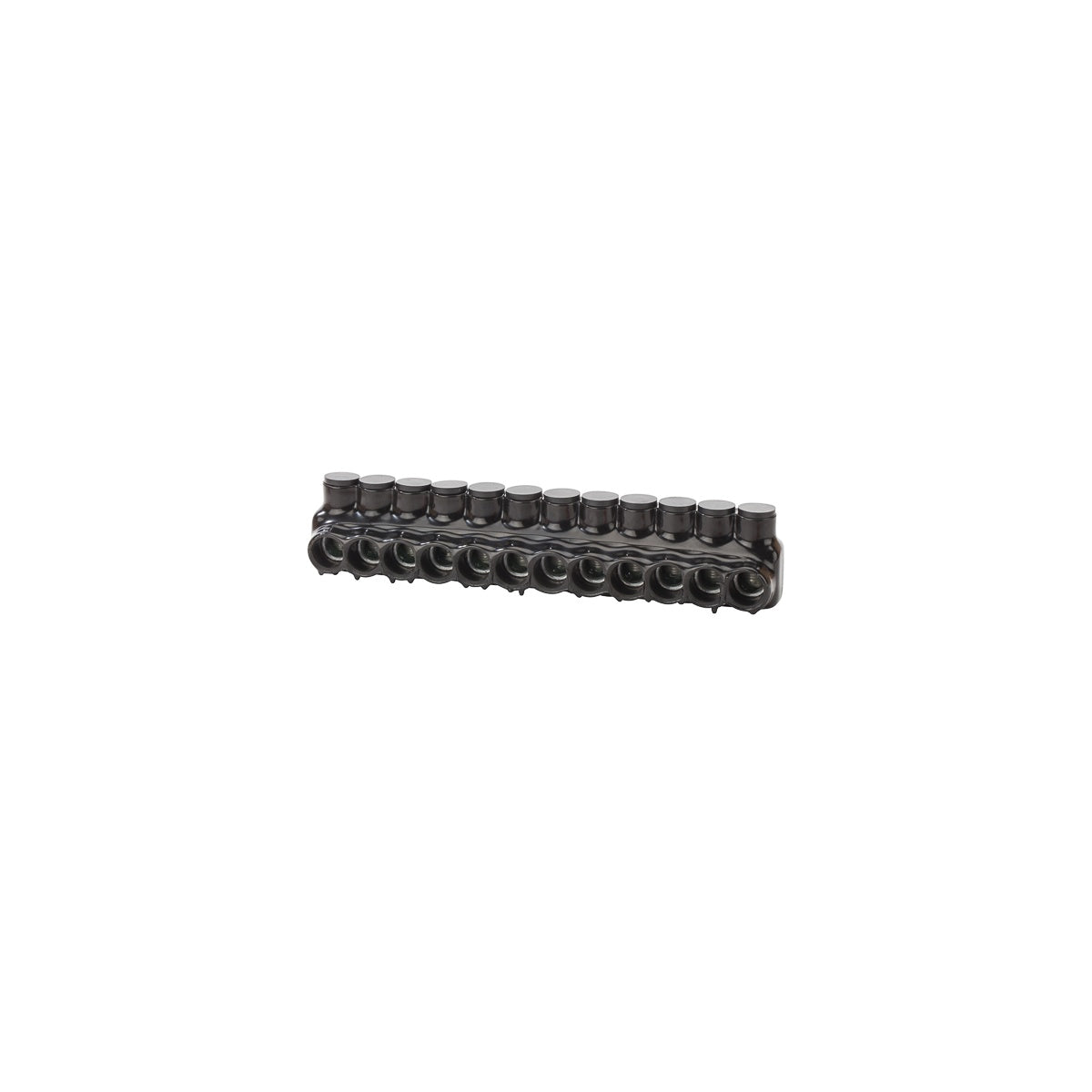

Polaris™ Ins Multi-Tap 250 12 Port DSE Wire Termination Connector
The Polaris™ Insulated Multi-Tap 250 12 Port Dual Side Entry (DSE) connector by NSI Industries is designed for efficient wire termination in electrical distribution and lighting solutions. This insulated multi-cable connector block supports wire sizes from 250 MCM to 6 AWG and is suitable for Class B and C copper or aluminum conductors. It provides a reliable, pre-insulated connection that simplifies installation and reduces labor in wire and cable applications.
Specifications
- Application: Wire Termination
- Number of Conductors: 12
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 10.74 in x 2.28 in x 2.18 in
- Environmental Conditions: Rated for 90°C
- Manufacturer Part #: IPLD250-12
- Product Weight: 1.39 lbs
Features
- UL 486B Listed for copper or aluminum Class B and C conductors
- Pre-insulated with high dielectric strength black plastisol for abrasion and chemical resistance
- Dual side entry wire ports with removable plugs for flexible wiring configurations
- Cold temperature rated to -45°C, suitable for harsh environments
- Eliminates need for additional insulation such as tape
- UV resistant, will not support combustion
- Designed for use in vibration-prone applications
- Can be customized for direct burial and submersible applications upon request
