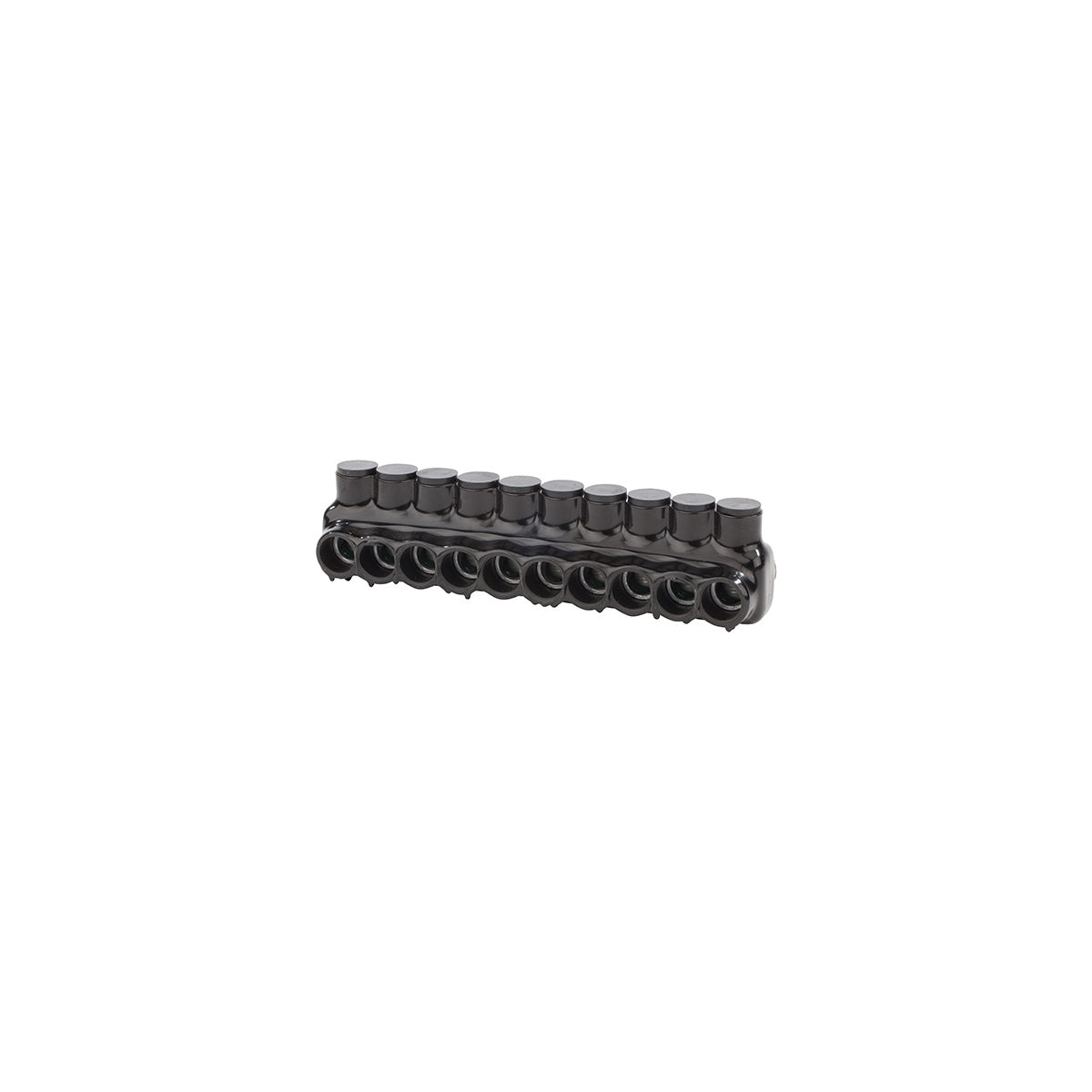

Polaris™ Ins Multi-Tap 250 10 Port DSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers handling wire and cable. This 10-port, dual-sided entry connector supports wire sizes from 250 MCM to 6 AWG, featuring plastisol insulation and aluminum construction for durability and electrical performance.

Specifications

• Application: Wire Termination
• Number of Conductors: 10
• Number of Poles: 1
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 8.97 in x 2.28 in x 2.18 in
• Product Weight: 1.1600 lbs
• Wire Type: Class B & C
• Environmental Conditions Rating: 90 °C
• Manufacturer Part #: IPLD250-10

Features

• Wire entry ports on both sides allow access from either side, facilitating installation.
• Pre-insulated with high-dielectric strength plastisol, eliminating the need for additional cover or taping.
• Molded for precise fit with removable access plugs covering hex screws for secure connections.
• Supplied with removable plugs to close unused entry ports.
• Abrasion, chemical, and UV resistant for enhanced durability in various environments.
• Will not support combustion, enhancing safety in electrical installations.
