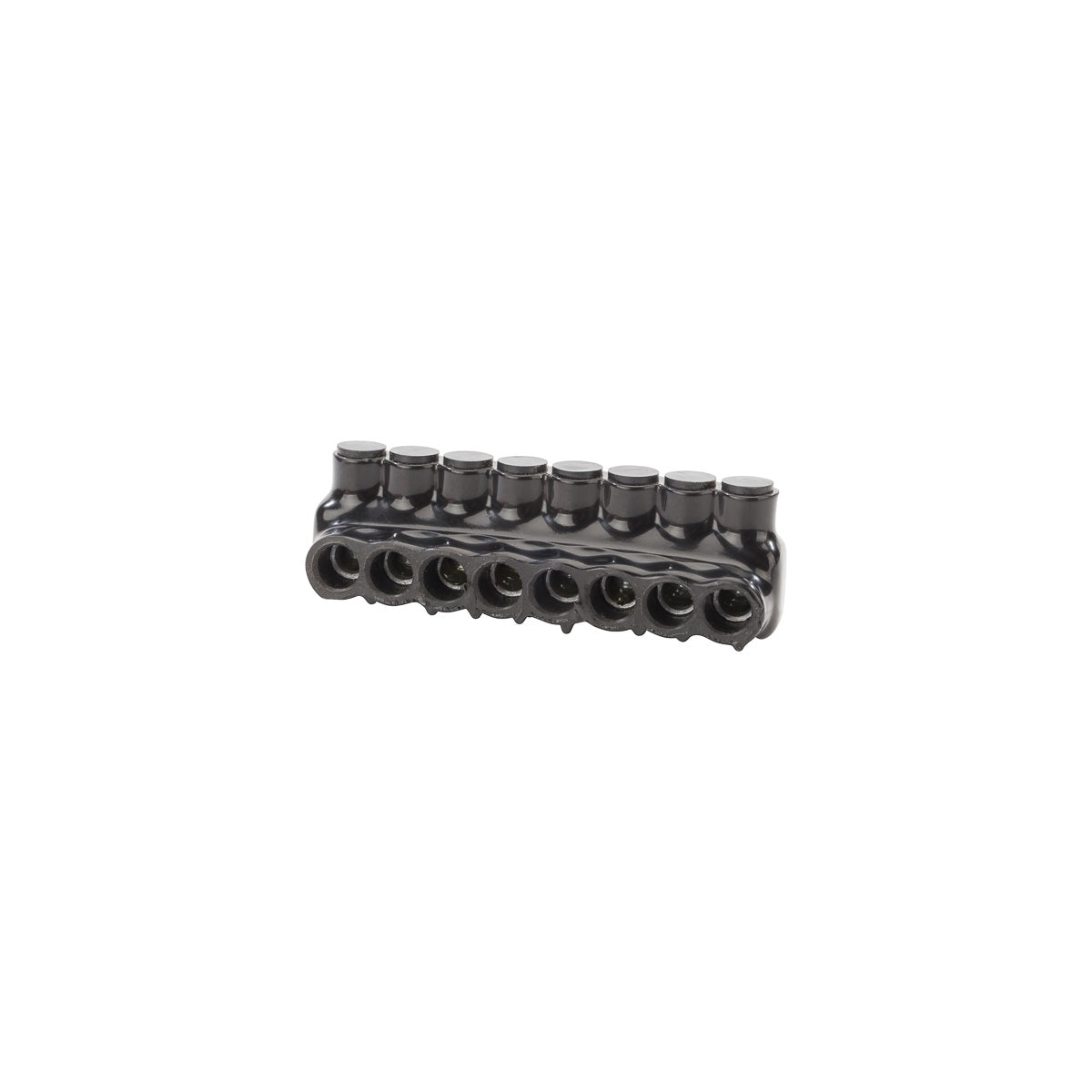

Polaris™ Ins Multi-Tap 1/0 8 Port SSE Electrical Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing reliable and efficient electrical connections for 1/0 to 14 AWG wire sizes. This product is suitable for use by electrical distributors and lighting solutions providers requiring high-quality wire and cable connectors. Manufactured by NSI Industries, it features a single-sided entry with eight ports, enabling multiple conductor connections in a compact form factor. The connector is ideal for switchgear suppliers and electrical contractors needing durable, insulated connectors rated for 90°C operation.

Specifications

• Application: Wire Termination
• Number of Conductors: 8
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 5.49 in x 1.5 in x 1.687 in
• Environmental Conditions: Rated for 90°C
• Product Weight: 0.51 lbs
• Manufacturer: NSI Industries
• Manufacturer Part #: IPL1/0-8

Features

• Constructed from 6061-T6 aluminum alloy for strength and conductivity
• Pre-filled with oxide inhibitor to prevent corrosion
• Removable access plug for easy installation and inspection
• 3/16 internal hex pressure screw ensures secure conductor connection
• UL listed per UL486A/B specifications for 600V applications
• Dual rated for copper and aluminum conductors at 90°C
• High dielectric strength insulation that is abrasion, chemical, and UV resistant
• Cold temperature rated to -45°C for versatile environmental use
