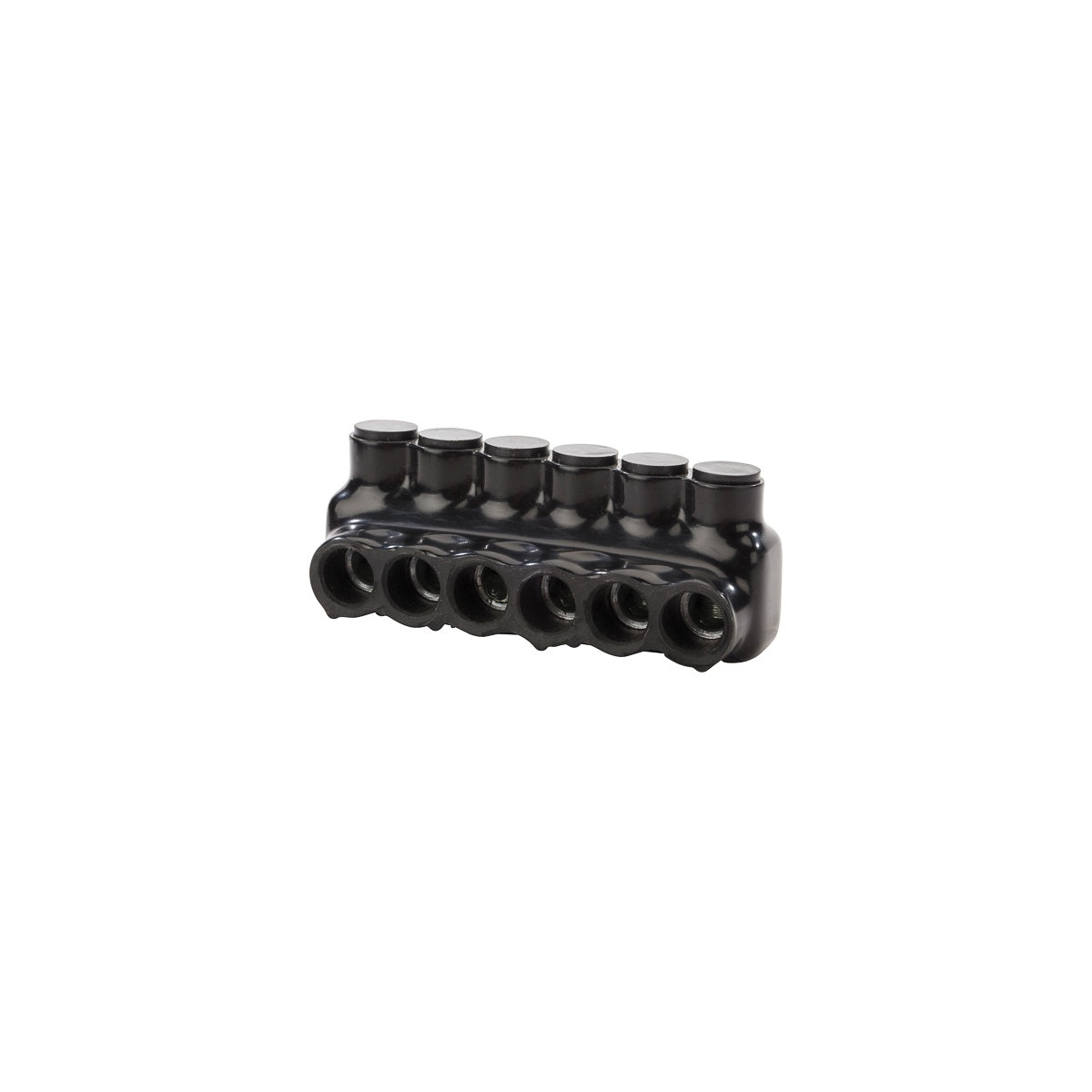

Polaris™ Ins Multi-Tap 1/0 6 Port SSE Electrical Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers requiring insulated multi-conductor connections. This connector supports wire sizes from 1/0 to 14 AWG, suitable for Class B and C wire types, and is ideal for use in lighting solutions and wire and cable installations where a compact, insulated, and durable connection is needed.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPL1/0-6
• Application: Wire Termination
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C
• Wire Range: 1/0-14 AWG
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 4.19 in x 1.5 in x 1.687 in
• Product Weight: 0.3800 lbs
• Environmental Conditions: Rated for 90°C
• UL Listed 486B Wire Connector (Dry location)
• Voltage Rating: 600V
• Temperature Rating: -45°C to 90°C

Features

• Wire entry ports on one side only (Single Sided Entry)
• Eliminates the need for cover and taping
• Insulated with high-dielectric strength plastisol for enhanced safety
• Molded for precise fit with removable access plugs over hex screws
• Abrasion and chemical resistant
• UV resistant for outdoor durability
• Will not support combustion
