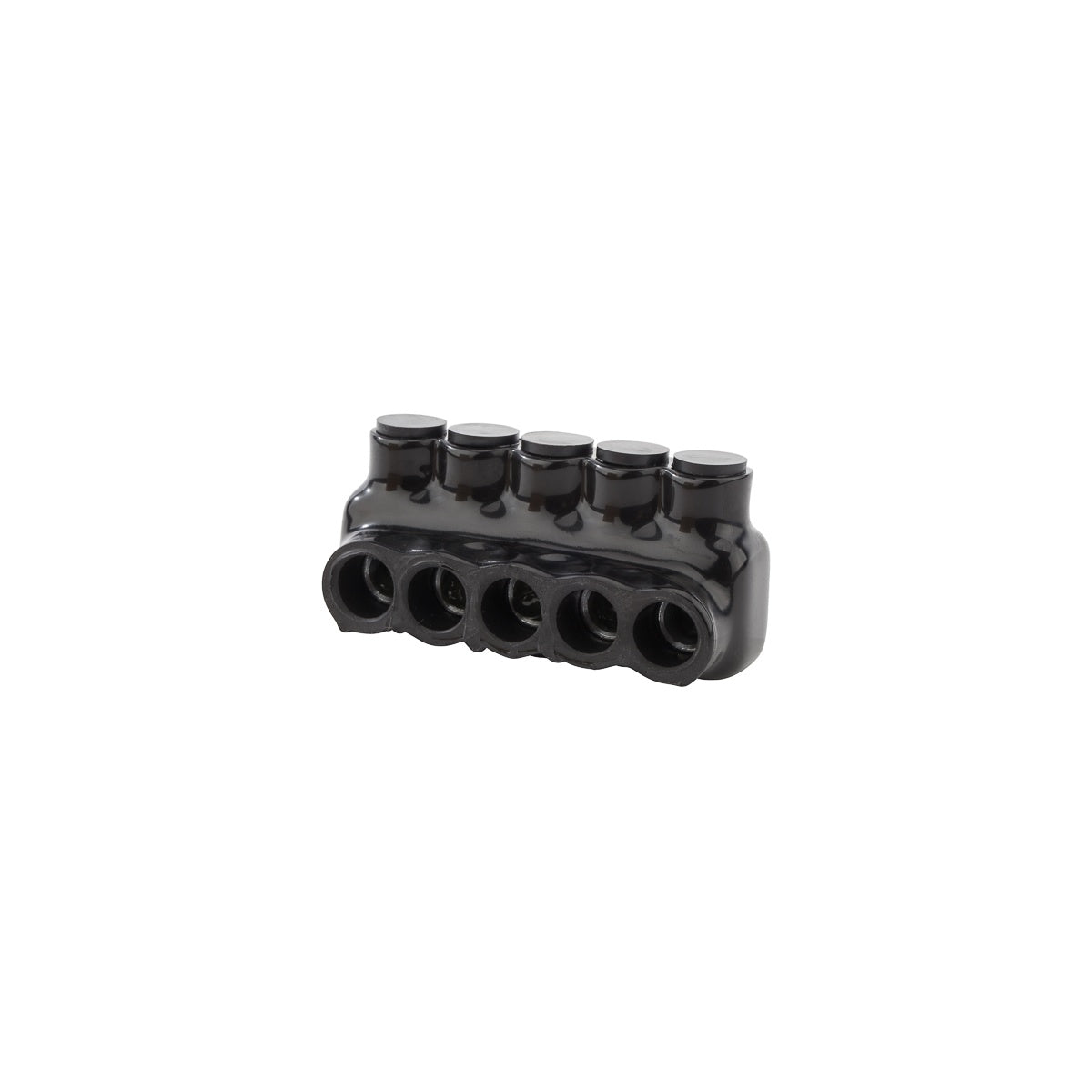

Polaris‚Ñ¢ Ins Multi-Tap 1/0 5 Port SSE Wire Termination Connector

The Polaris‚Ñ¢ Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and lighting solutions providers. This 5-port, single-sided entry connector supports wire sizes from 1/0 to 14 AWG and is suitable for Class B & C wire types. It is manufactured from aluminum with a plastisol insulated finish, ensuring durability and electrical safety in demanding environments.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPL1/0-5
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 5
• Number of Poles: 1
• Application: Wire Termination
• Wire Type: Class B & C
• Environmental Conditions: Rated for 90¬∞C
• Dimensions (L x W x H): 3.54 in x 1.5 in x 1.687 in
• Product Weight: 0.3200 lbs

Features

• UL Listed per UL486A/B for 600V applications
• Dual rated for 90¬∞C copper and aluminum conductors
• Manufactured from 6061-T6 aluminum alloy for strength and corrosion resistance
• High dielectric strength insulation that is abrasion, chemical, and UV resistant
• Cold temperature rated to -45¬∞C
• Pre-filled with oxide inhibitor for enhanced conductivity and corrosion protection
• Removable access plug and 3/16" internal hex pressure screw for secure wire connections
