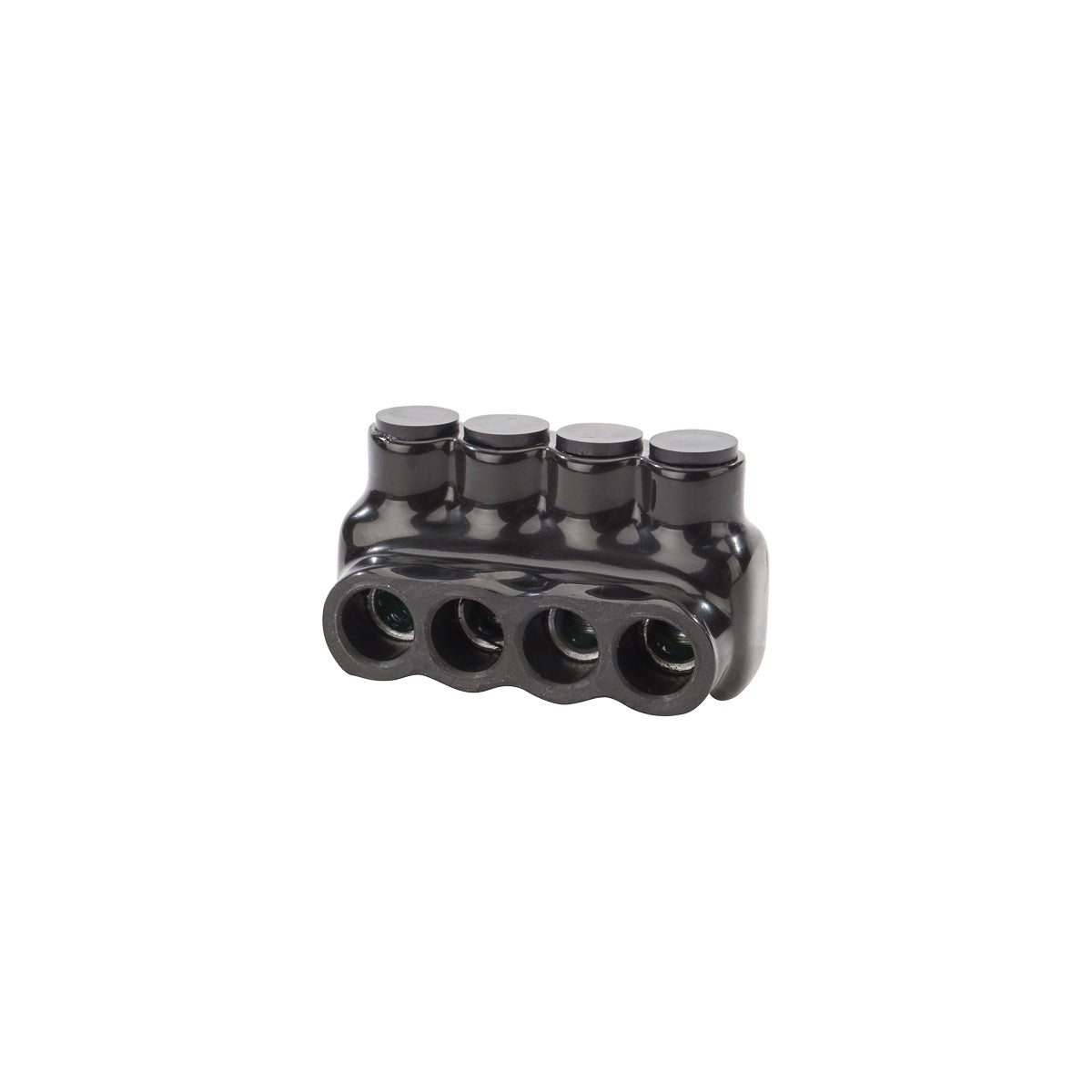

Polaris™ Ins Multi-Tap 1/0 4 Port SSE Wire Termination Connector

The Polaris™ Ins Multi-Tap 1/0 4 Port SSE is a pre-insulated multi-conductor connector designed for wire termination applications. Manufactured by NSI Industries, this connector supports Class B & C wire types and is suitable for use with copper and aluminum cables rated up to 90°C. Its single-sided wire entry design facilitates efficient electrical connections, making it a reliable component for electrical distributors and switchgear suppliers handling wire and cable installations.

Specifications

• Application: Wire Termination
• Number of Conductors: 4
• Number of Poles: 1
• Wire Type: Class B & C
• Wire Range: 1/0 - 14 AWG
• Material: Aluminum (6061-T6 alloy)
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 2.89 in x 1.5 in x 1.687 in
• Environmental Conditions: Rated for 90°C, cold temperature rated to -45°C
• UL Listing: UL Listed 486B Wire Connector (Dry location), rated 600V
• Product Weight: 0.26 lbs
• Manufacturer Part Number: IPL1/0-4

Features

• Single side wire entry ports streamline installation
• Pre-filled with oxide inhibitor for reliable connections
• High dielectric strength plastisol insulation offers abrasion, chemical, and UV resistance
• Molded for precise fit with removable access plugs over hex screws
• Will not support combustion
