Polaris™ Ins Multi-Tap 1/0 3 Port SSE
SKU: #304257
Part: #IPL1/0-3
UPC: 662381911018
Polaris™ Ins Multi-Tap 1/0 3 Port SSE
SKU: #304257
Part: #IPL1/0-3
UPC: 662381911018
Total Price: $30.17 per each Sold in increments of 1 each
Description

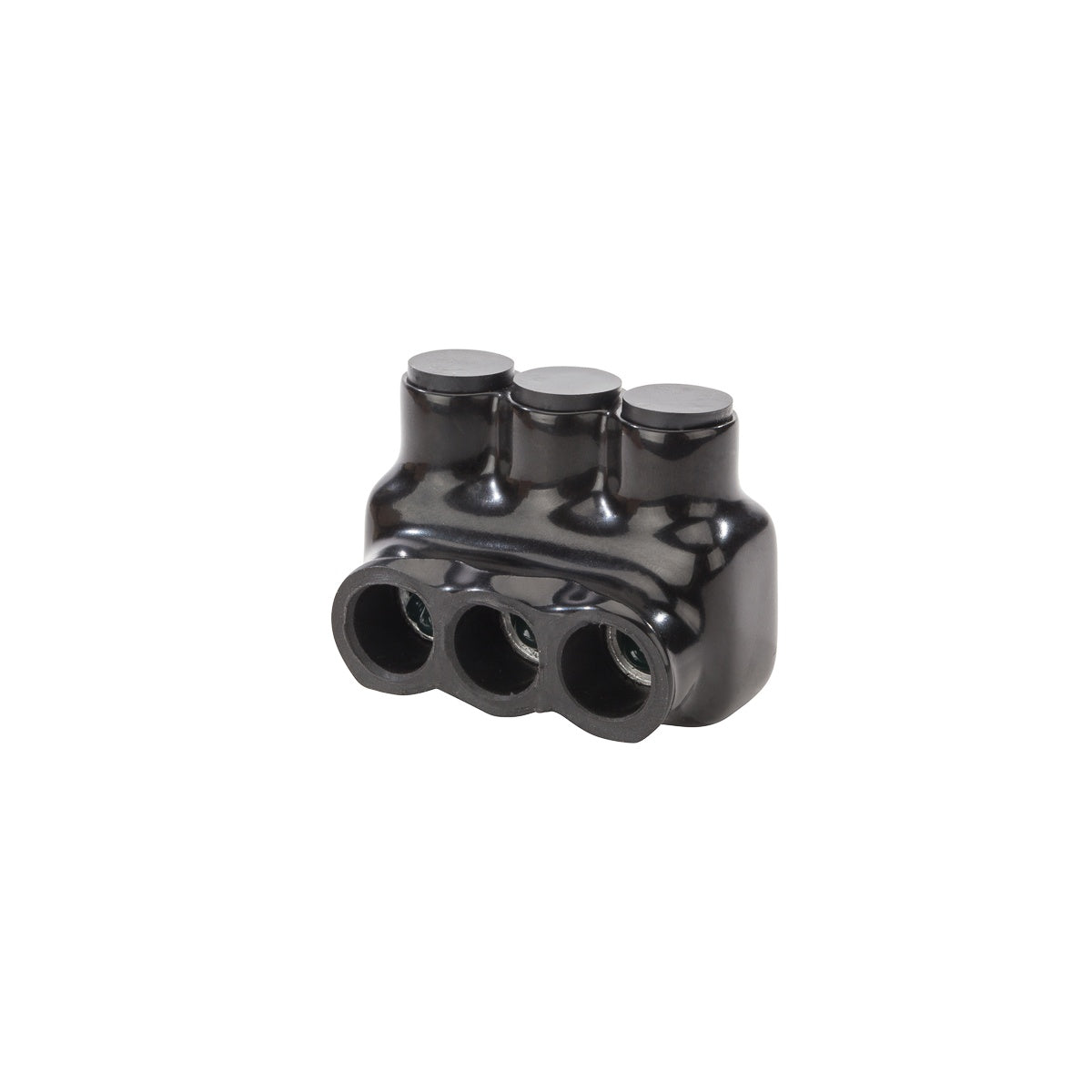

Polaris™ Ins Multi-Tap 1/0 3 Port SSE Wire Termination Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing reliable electrical connections for wire and cable in commercial and industrial settings. Manufactured by NSI Industries, this connector is suitable for use by electrical distributors and switchgear suppliers requiring durable, insulated multi-conductor connectors. It features a single-sided wire entry with three ports, accommodating 1/0-14 AWG wire sizes and rated for Class B & C wire types. The connector is insulated with high-dielectric strength plastisol, ensuring abrasion, chemical, and UV resistance, suitable for environments up to 90°C.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPL1/0-3
- Application: Wire Termination
- Number of Conductors: 3
- Number of Poles: 1
- Wire Type: Class B & C
- Wire Range: 1/0-14 AWG
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Length: 2.24 in
- Width: 1.5 in
- Height: 1.687 in
- Environmental Conditions: Rated 90°C
- Product Weight: 0.1900 lbs
- UL Listing: UL Listed 486B Wire Connector (Dry location)
- Voltage Rating: 600V
- Temperature Rating: Cold temperature rated to -45°C, max 90°C
Features
- Wire entry ports on one side only for streamlined installation
- Eliminates the need for cover and taping
- High-dielectric strength plastisol insulation for electrical safety
- Molded for precise fit with removable access plugs over hex screws
- Abrasion, chemical, and UV resistant for durability in harsh environments
- Will not support combustion, enhancing fire safety
