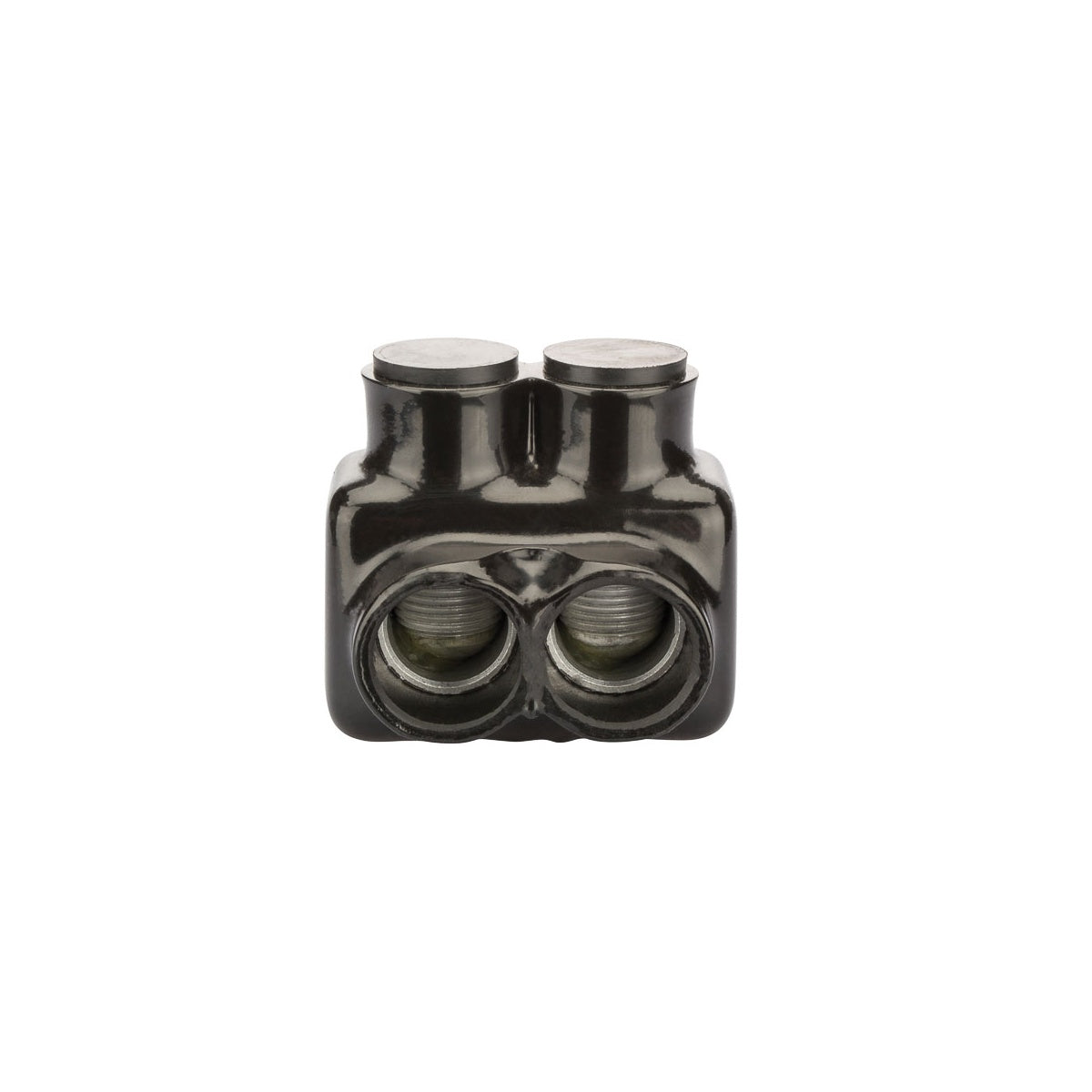

Polaris™ Ins 2 Port 600 - Insulated Tap Connector for Wire Termination

The Polaris™ Ins 2 Port 600 is a dual-rated, pre-insulated tap connector designed for wire termination applications involving wire and cable connections. Manufactured by NSI Industries, this connector accommodates wire sizes from 600 MCM to 6 AWG and is suitable for use in electrical distribution and lighting solutions where reliable and secure wire connections are required. It is engineered for use with Class B & C wire types and is rated for environmental conditions up to 75°C.

Specifications

• Application: Wire Termination
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 2
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: 75 °C
• Dimensions (L x W x H): 2.34 in x 2.94 in x 3.05 in
• Product Weight: 0.8 lbs
• Manufacturer Part #: IT-600

Features

• Dual-sided entry ports allow wire access from either side with removable access plugs for unused ports
• Abrasion and chemical resistant for durability in demanding environments
• UV resistant to withstand outdoor exposure
• Will not support combustion, enhancing safety
• UL Listed 486B wire connector for dry locations with cold temperature rating to -45°C and voltage rating of 600V at 90°C
• Suitable for connecting two wires with secure and insulated termination

Downloads & Links

• Product Advertisement
• Catalog Page
• Technical Drawing
