Polaris™ Ins 2 Port 4 OS
SKU: #305246
Part: #ITO-4
UPC: 662381950024
Polaris™ Ins 2 Port 4 OS
SKU: #305246
Part: #ITO-4
UPC: 662381950024
Description

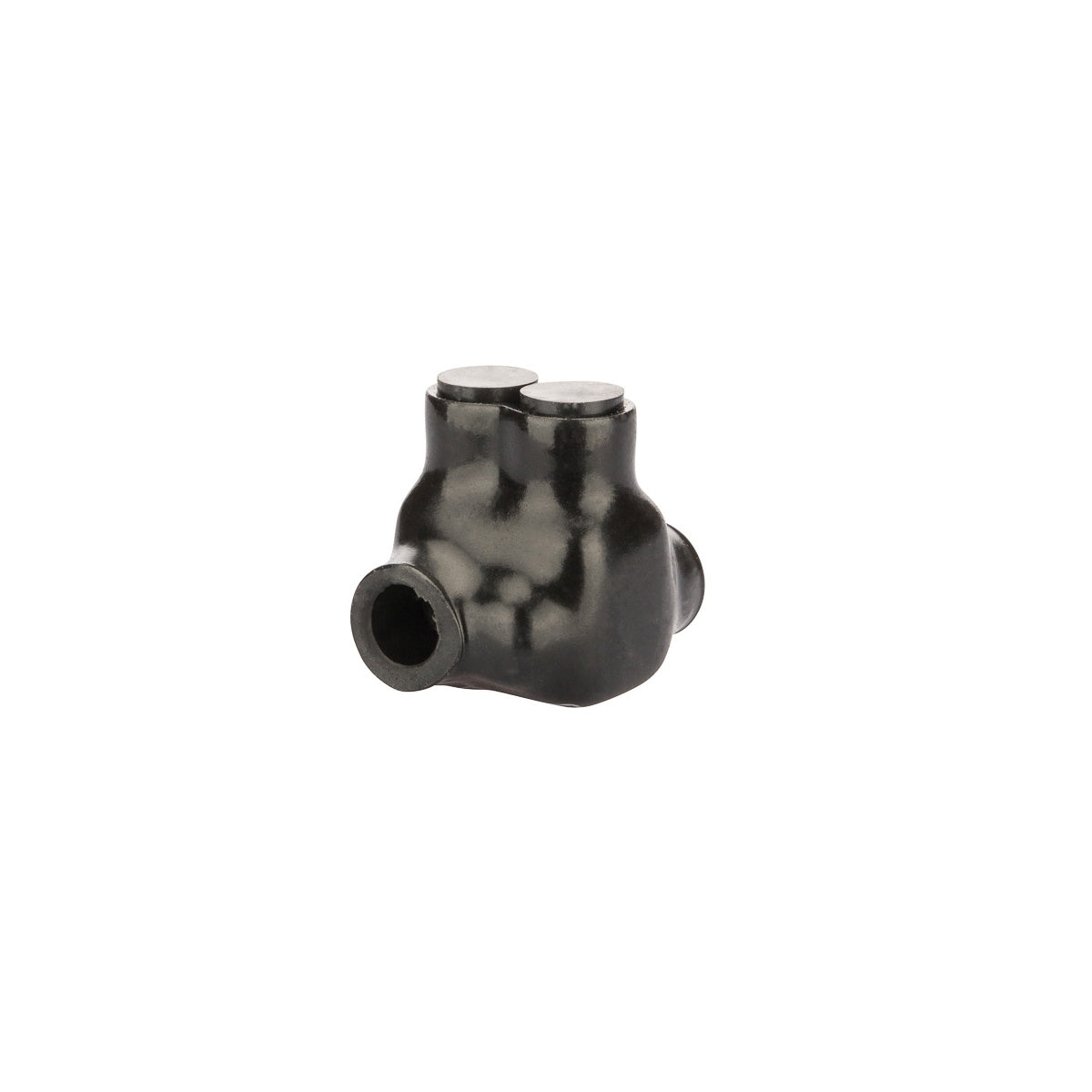

Polaris™ Ins 2 Port 4 OS Pre-Insulated Tap Connector
The Polaris™ Ins 2 Port 4 OS is a pre-insulated tap connector designed for secure electrical connections of two wires, suitable for use by electrical distributors and lighting solutions providers. This dual-rated connector supports both copper and aluminum cables in wire sizes ranging from 4 to 14 AWG. Its offset, dual-sided entry design facilitates versatile wire entry, making it suitable for various wire and cable installations in commercial and industrial switchgear applications.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: ITO-4
- Wire Range: 4-14 AWG
- Number of Conductors: 2
- Material: Plastisol
- Finish: Plastisol
- Color: Black
- Length: 1.12 in
- Width: 1.25 in
- Height: 1.38 in
- Product Weight: 0.0600 lbs
- Environmental Conditions: Rated for 90 degrees Celsius
- Wire Type: Dual rated for copper and aluminum cables (not for fine-stranded flexible wire)
- UL Listed: UL 486B Wire Connector (Dry location)
- Temperature Rating: Cold temperature rated to -45 °C, rated 600V, 90 °C
Features
- Dual rated for use with copper and aluminum cables
- Offset (dual-sided) wire entry for flexible installation options
- Abrasion and chemical resistant
- UV resistant
- Will not support combustion
- Pre-insulated for faster installation, saving time and labor
