Polaris™ Ins 2 Port 4
SKU: #305205
Part: #IT-4
UPC: 662381950017
Polaris™ Ins 2 Port 4
SKU: #305205
Part: #IT-4
UPC: 662381950017
Total Price: $16.39 per each Sold in increments of 1 each
Description

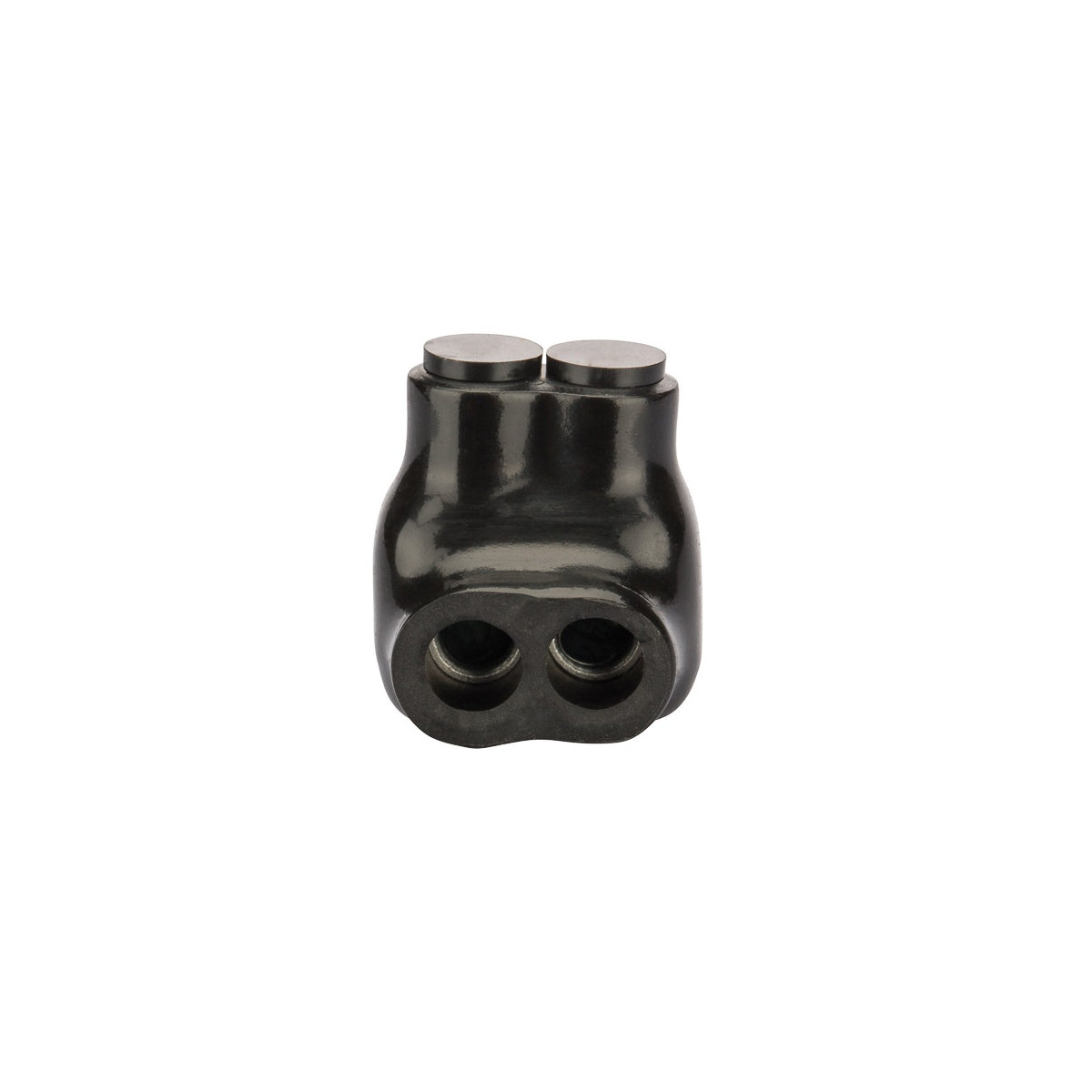

Polaris™ Ins 2 Port 4 Pre-Insulated Tap Connector
The Polaris™ Ins 2 Port 4 is a pre-insulated tap connector designed for wire termination applications, suitable for connecting two wires in electrical distribution and lighting solutions. Manufactured by NSI Industries, this connector supports wire sizes 4-14 AWG and is dual rated for use with copper and aluminum cables, making it a reliable component for wire and cable management in various electrical systems.
Specifications
- Application: Wire Termination
- Wire Range: 4-14 AWG
- Number of Conductors: 2
- Number of Poles: 1
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 1.12 in x 1.18 in x 1.38 in
- Product Weight: 0.0600 lbs
- Wire Type: Class B & C (Dual rated for copper and aluminum cables)
- Environmental Conditions: Rated for 90°C
- UL Listing: UL Listed 486B Wire Connector (Dry location)
- Temperature Rating: Cold temperature rated to -45°C, rated 600V, 90°C
- Manufacturer Part #: IT-4
Features
- Pre-insulated design for safe and efficient wire connections
- Suitable for connecting two wires from the same side of the connector
- Abrasion and chemical resistant
- UV resistant for outdoor durability
- Will not support combustion, enhancing safety in electrical installations
