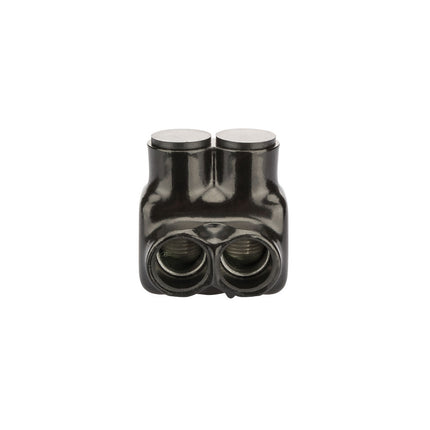

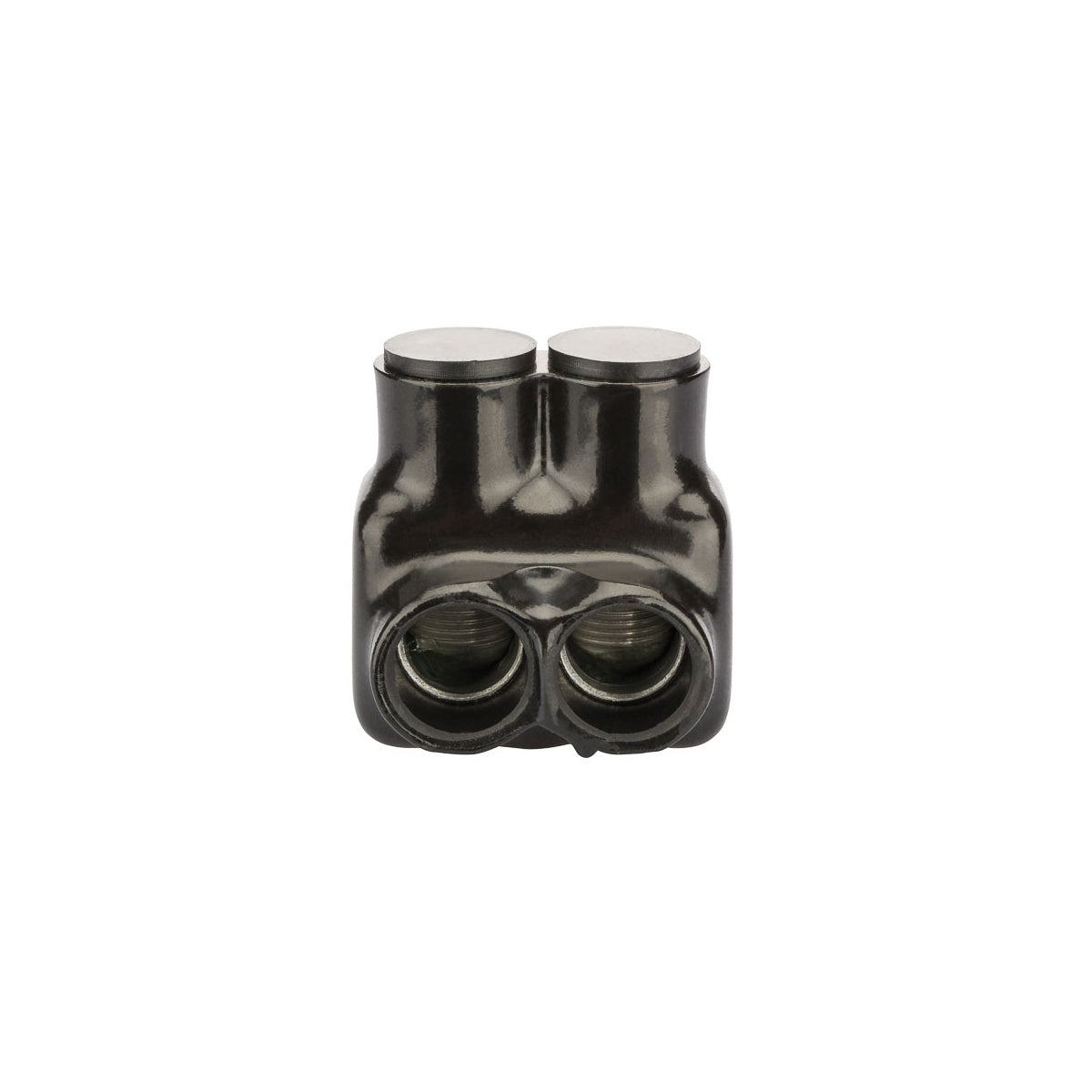

Polaris™ Ins 2 Port 350 - Insulated Tap Connector for Wire Termination

The Polaris™ Ins 2 Port 350 is a pre-insulated tap connector designed for wire termination applications, suitable for electrical distributors and lighting solutions requiring secure connections between two conductors. This connector supports wire sizes from 350 MCM to 6 AWG and is dual rated for use with both copper and aluminum cables. It is ideal for wire and cable installations where reliable, abrasion-resistant, and UV-resistant connections are necessary.

Specifications

• Application: Wire Termination
• Material: Aluminum
• Color: Black
• Finish: Plastisol Insulated
• Wire Type: Class B & C
• Number of Conductors: 2
• Number of Poles: 1
• Environmental Conditions: 90 °C
• Dimensions (L x W x H): 2.47 in x 2.5 in x 2.44 in
• Product Weight: 0.39 lbs
• Manufacturer: NSI Industries
• Manufacturer Part #: IT-350
• UL Listed 486B Wire Connector (Dry location)
• Temperature Rating/Voltage: Rated 600V, 90 °C; cold temperature rated to -45 °C

Features

• Dual rated for copper and aluminum cable compatibility
• Pre-insulated with plastisol for abrasion and chemical resistance
• UV resistant and will not support combustion
• Dual sided entry ports with removable access plugs for flexible installation
• Suitable for Class B & C wire types
